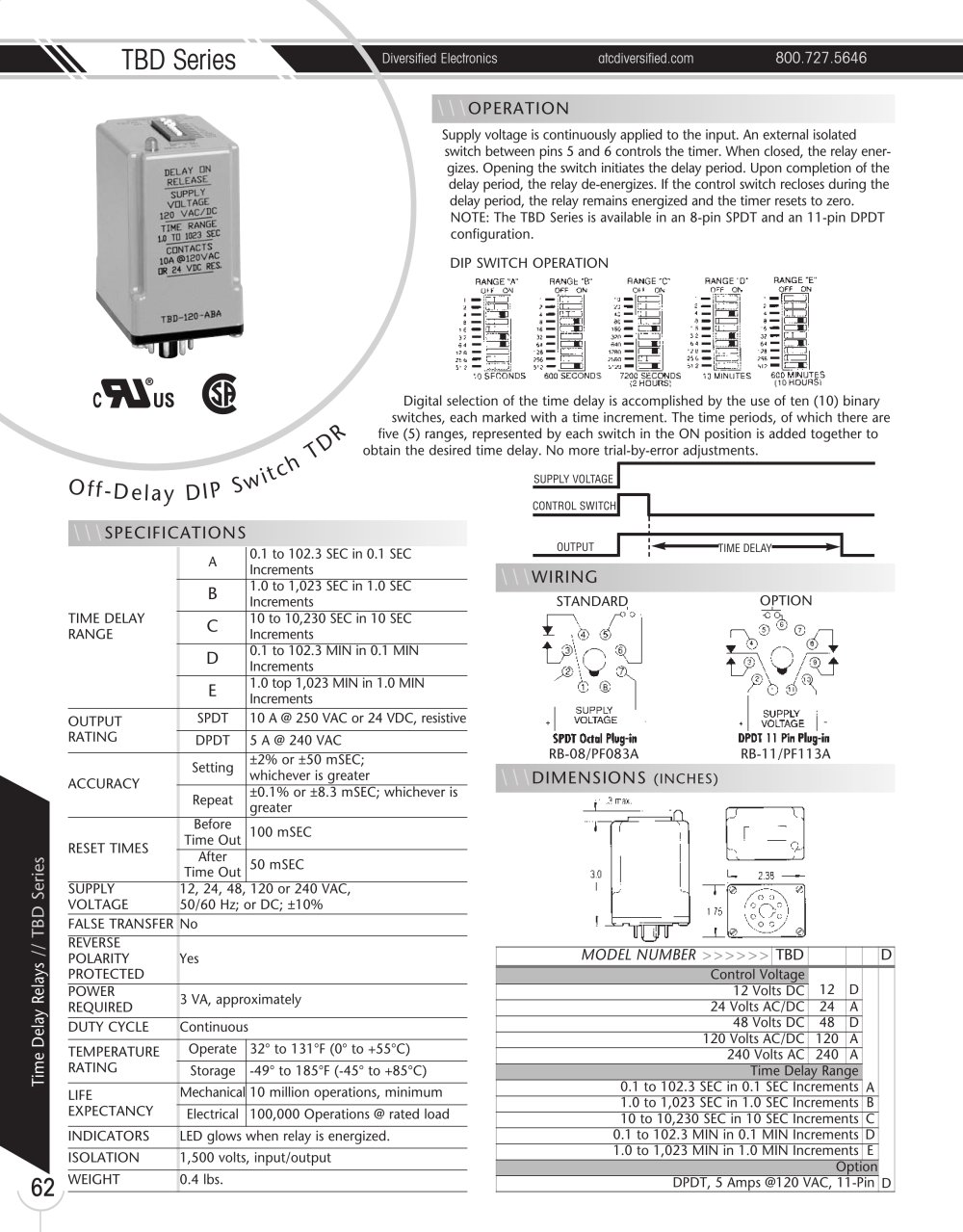

\\\SPECIFICATIONS TIME DELAY RANGE A 0.1 to 102.3 SEC in 0.1 SEC Increments B 1.0 to 1,023 SEC in 1.0 SEC Increments C 10 to 10,230 SEC in 10 SEC Increments D 0.1 to 102.3 MIN in 0.1 MIN Increments E 1.0 top 1,023 MIN in 1.0 MIN Increments OUTPUT RATING SPDT 10 A @ 250 VAC or 24 VDC, resistive DPDT 5 A @ 240 VAC ACCURACY Setting ±2% or ±50 mSEC; whichever is greater Repeat ±0.1% or ±8.3 mSEC; whichever is greater RESET TIMES Before Time Out 100 mSEC After Time Out 50 mSEC SUPPLY VOLTAGE 12, 24, 48, 120 or 240 VAC, 50/60 Hz; or DC; ±10% FALSE TRANSFER No REVERSE POLARITY PROTECTED Yes POWER REQUIRED 3 VA, approximately DUTY CYCLE Continuous TEMPERATURE RATING Operate 32° to 131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) LIFE EXPECTANCY Mechanical 10 million operations, minimum Electrical 100,000 Operations @ rated load INDICATORS LED glows when relay is energized. ISOLATION 1,500 volts, input/output WEIGHT 0.4 lbs. TBD Series Diversified Electronics atcdiversified.com 800.727.5646 62Time Delay Relays // TBD Series Supply voltage is continuously applied to the input. An external isolated switch between pins 5 and 6 controls the timer. When closed, the relay energizes. Opening the switch initiates the delay period. Upon completion of the delay period, the relay de-energizes. If the control switch recloses during the delay period, the relay remains energized and the timer resets to zero. NOTE: The TBD Series is available in an 8-pin SPDT and an 11-pin DPDT configuration. DIP SWITCH OPERATION Digital selection of the time delay is accomplished by the use of ten (10) binary switches, each marked with a time increment. The time periods, of which there are five (5) ranges, represented by each switch in the ON position is added together to obtain the desired time delay. No more trial-by-error adjustments. O f f - D e l a y D I P Sw i t c h T DR SUPPLY VOLTAGE OUTPUT CONTROL SWITCH TIME DELAY RB-08/PF083A RB-11/PF113A \\\WIRING \\\DIMENSIONS (INCHES) MODEL NUMBER >>>>>> TBD D Control Voltage 12 D A D 12 Volts DC 24 Volts AC/DC 24 A 48 Volts DC 48 D 120 Volts AC/DC 120 A 240 Volts AC 240 A Time Delay Range 0.1 to 102.3 SEC in 0.1 SEC Increments 1.0 to 1,023 SEC in 1.0 SEC Increments B 10 to 10,230 SEC in 10 SEC Increments C 0.1 to 102.3 MIN in 0.1 MIN Increments D 1.0 to 1,023 MIN in 1.0 MIN Increments E Option DPDT, 5 Amps @120 VAC, 11-Pin STANDARD OPTION \\\OPERATION
