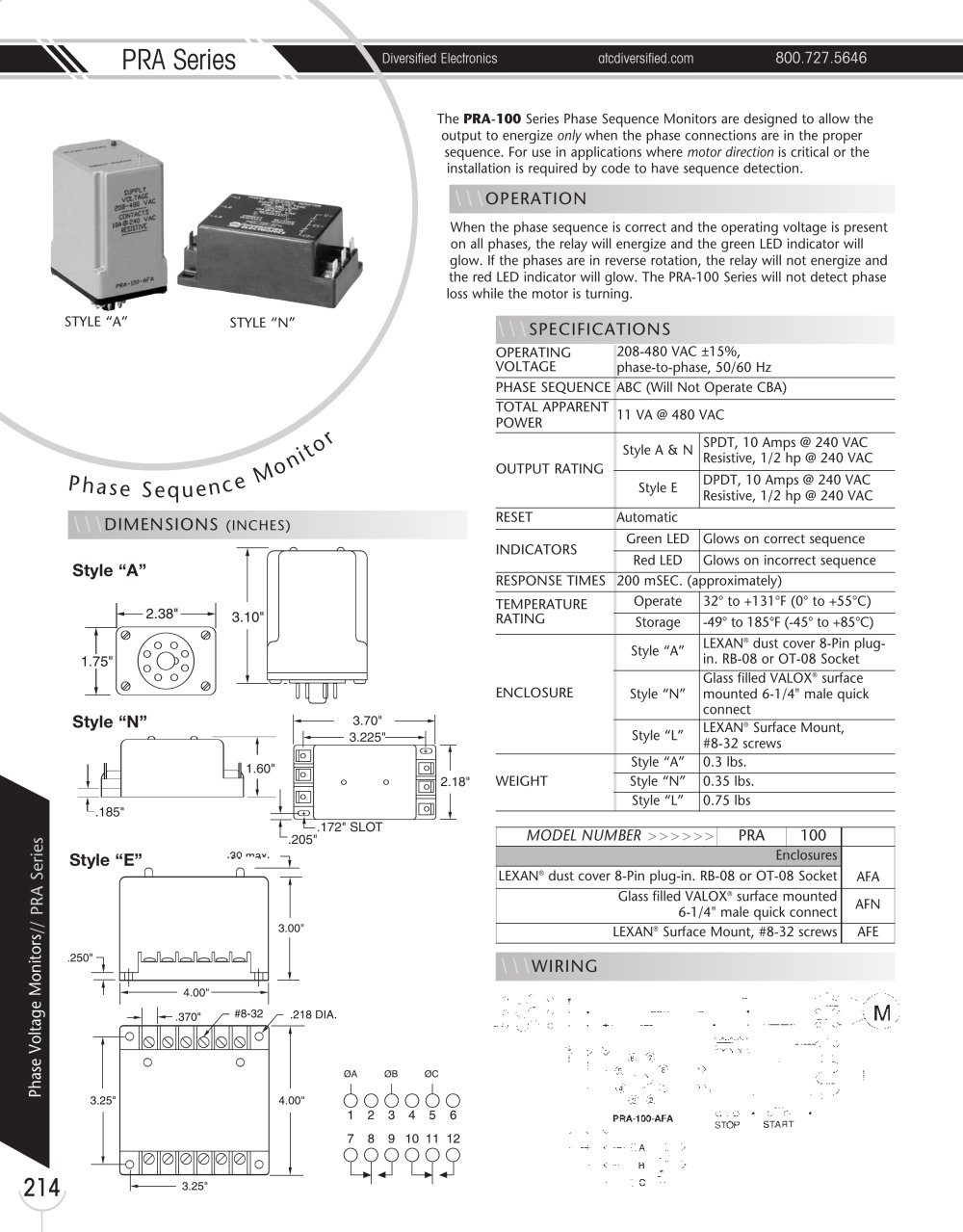

PRA Series Diversified Electronics atcdiversified.com 800.727.5646 214 Phase Voltage Monitors// PRA Series The PRA-100 Series Phase Sequence Monitors are designed to allow the output to energize only when the phase connections are in the proper sequence. For use in applications where motor direction is critical or the installation is required by code to have sequence detection. When the phase sequence is correct and the operating voltage is present on all phases, the relay will energize and the green LED indicator will glow. If the phases are in reverse rotation, the relay will not energize and the red LED indicator will glow. The PRA-100 Series will not detect phase loss while the motor is turning. P h a s e S e q u e nc e Mo n i t o r 3.70" 2.18" 3.225" .205" .185" 1.60" .172" SLOT Style "N" Style “N” STYLE “N” 3.70" 2.18" 3.225" .205" .185" 1.60" .172" SLOT Style "N" Style “A” STYLE “A” Style “E” \\\DIMENSIONS (INCHES) \\\OPERATION \\\SPECIFICATIONS OPERATING VOLTAGE 208-480 VAC ±15%, phase-to-phase, 50/60 Hz PHASE SEQUENCE ABC (Will Not Operate CBA) TOTAL APPARENT POWER 11 VA @ 480 VAC OUTPUT RATING Style A & N SPDT, 10 Amps @ 240 VAC Resistive, 1/2 hp @ 240 VAC Style E DPDT, 10 Amps @ 240 VAC Resistive, 1/2 hp @ 240 VAC RESET Automatic INDICATORS Green LED Glows on correct sequence Red LED Glows on incorrect sequence RESPONSE TIMES 200 mSEC. (approximately) TEMPERATURE RATING Operate 32° to +131°F (0° to +55°C) Storage -49° to 185°F (-45° to +85°C) ENCLOSURE Style “A” LEXAN® dust cover 8-Pin plugin. RB-08 or OT-08 Socket Style “N” Glass filled VALOX® surface mounted 6-1/4" male quick connect Style “L” LEXAN® Surface Mount, #8-32 screws WEIGHT Style “A” 0.3 lbs. Style “N” 0.35 lbs. Style “L” 0.75 lbs \\\WIRING MODEL NUMBER >>>>>> PRA 100 Enclosures LEXAN® dust cover 8-Pin plug-in. RB-08 or OT-08 Socket AFA Glass filled VALOX® surface mounted 6-1/4" male quick connect AFN LEXAN® Surface Mount, #8-32 screws AFE
