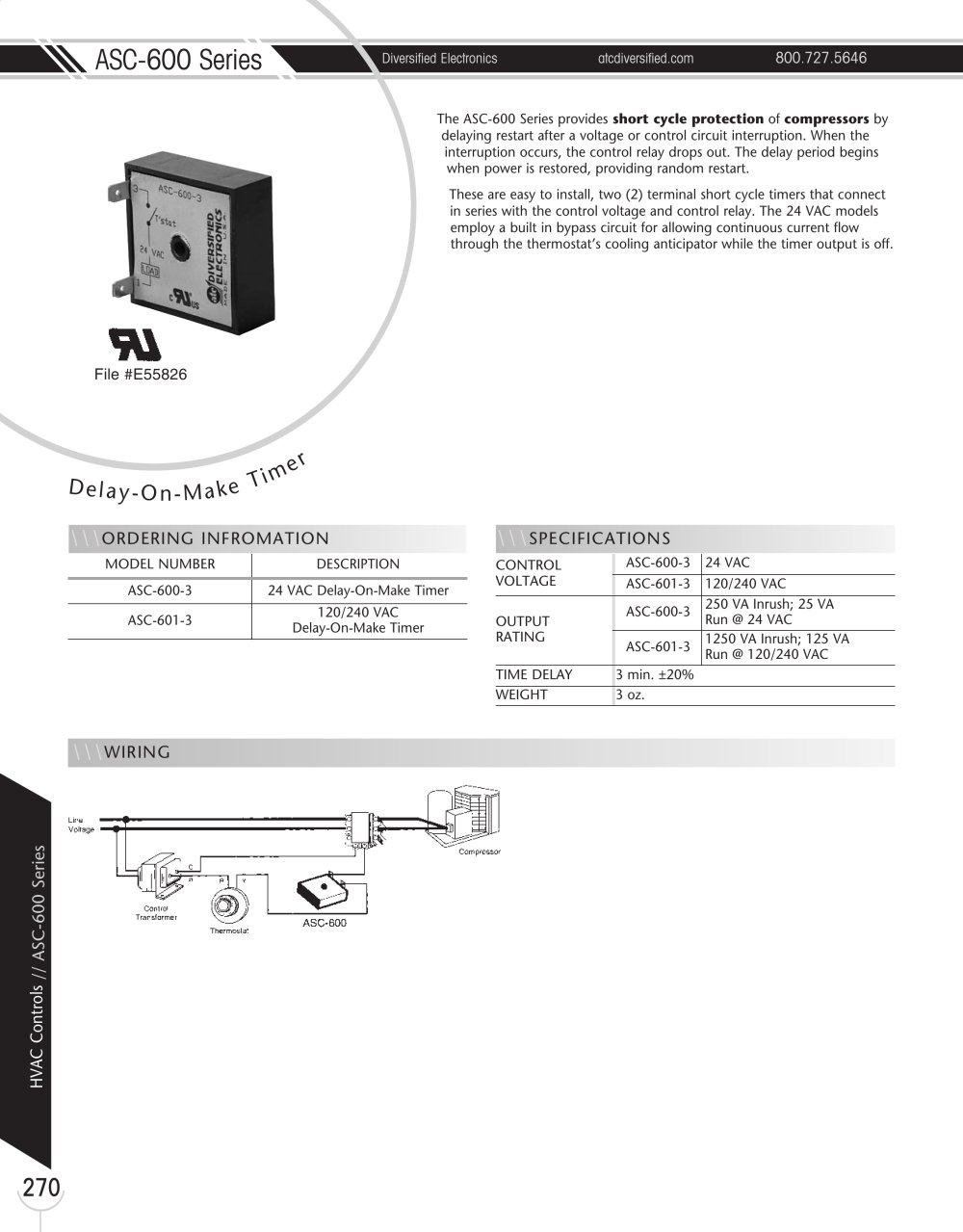

ASC-600 Series Diversified Electronics atcdiversified.com 800.727.5646 270HVAC Controls // ASC-600 Series The ASC-600 Series provides short cycle protection of compressors by delaying restart after a voltage or control circuit interruption. When the interruption occurs, the control relay drops out. The delay period begins when power is restored, providing random restart. These are easy to install, two (2) terminal short cycle timers that connect in series with the control voltage and control relay. The 24 VAC models employ a built in bypass circuit for allowing continuous current flow through the thermostat’s cooling anticipator while the timer output is off. D e l a y - O n - M a k e T ime r File #E55826 \\\ORDERING INFROMATION MODEL NUMBER DESCRIPTION ASC-600-3 24 VAC Delay-On-Make Timer ASC-601-3 120/240 VAC Delay-On-Make Timer \\\WIRING \\\SPECIFICATIONS CONTROL VOLTAGE ASC-600-3 24 VAC ASC-601-3 120/240 VAC OUTPUT RATING ASC-600-3 250 VA Inrush; 25 VA Run @ 24 VAC ASC-601-3 1250 VA Inrush; 125 VA Run @ 120/240 VAC TIME DELAY 3 min. ±20% WEIGHT 3 oz.
