Marsh Bellofram DigiTec Division T3S Series 1/16 DIN Digital Temperature Controller - Marsh Bellofram - #1

Text version of the page

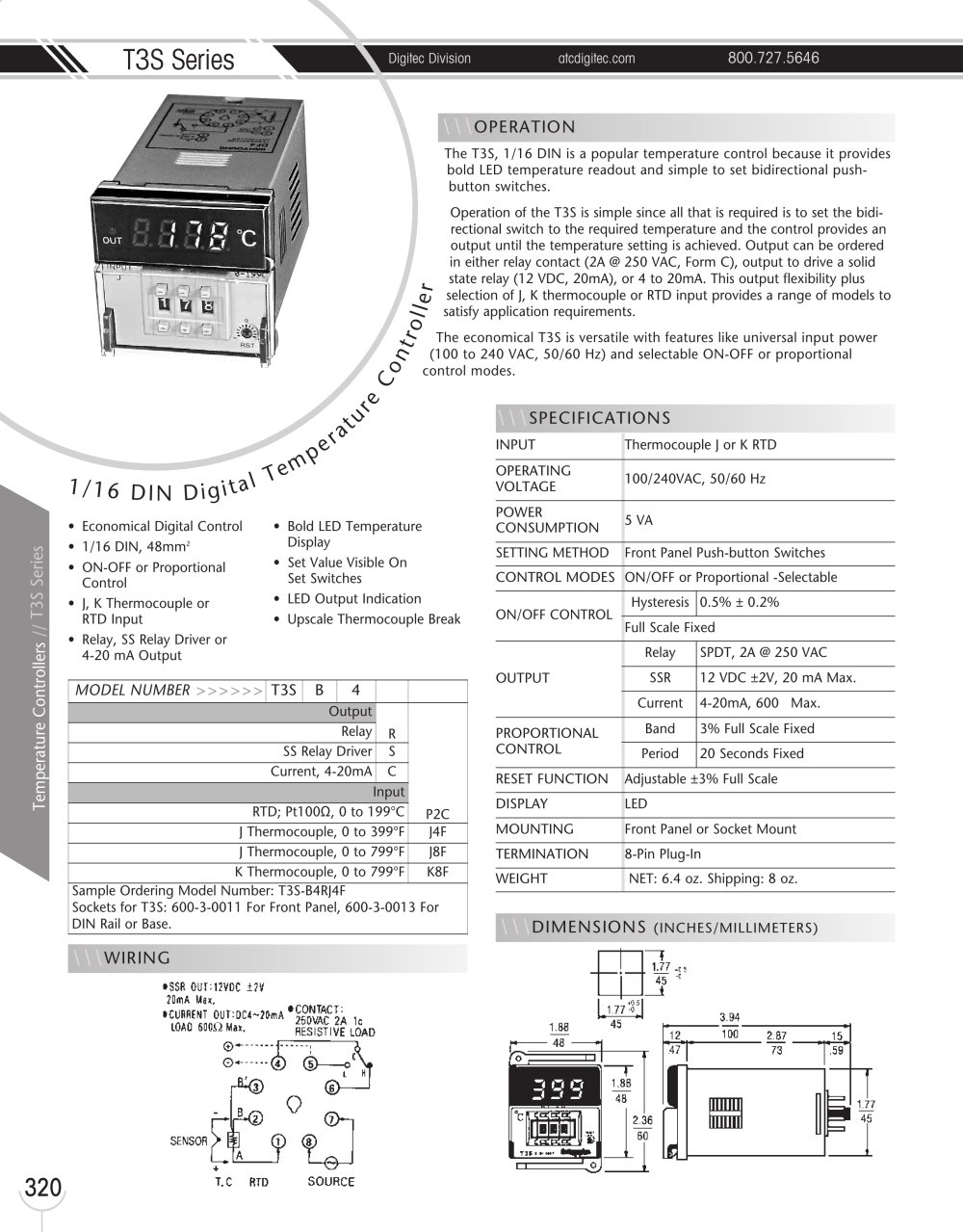

T3S Series Digitec Division atcdigitec.com 800.727.5646 320Temperature Controllers // T3S Series The T3S, 1/16 DIN is a popular temperature control because it provides bold LED temperature readout and simple to set bidirectional pushbutton switches. Operation of the T3S is simple since all that is required is to set the bidirectional switch to the required temperature and the control provides an output until the temperature setting is achieved. Output can be ordered in either relay contact (2A @ 250 VAC, Form C), output to drive a solid state relay (12 VDC, 20mA), or 4 to 20mA. This output flexibility plus selection of J, K thermocouple or RTD input provides a range of models to satisfy application requirements. The economical T3S is versatile with features like universal input power (100 to 240 VAC, 50/60 Hz) and selectable ON-OFF or proportional control modes. 1 / 1 6 D I N D i g i t a l Temp e r a ture Control ler • Economical Digital Control • 1/16 DIN, 48mm2 • ON-OFF or Proportional Control • J, K Thermocouple or RTD Input • Relay, SS Relay Driver or 4-20 mA Output • Bold LED Temperature Display • Set Value Visible On Set Switches • LED Output Indication • Upscale Thermocouple Break \\\DIMENSIONS (INCHES/MILLIMETERS) \\\WIRING \\\SPECIFICATIONS INPUT Thermocouple J or K RTD OPERATING VOLTAGE 100/240VAC, 50/60 Hz POWER CONSUMPTION 5 VA SETTING METHOD Front Panel Push-button Switches CONTROL MODES ON/OFF or Proportional -Selectable ON/OFF CONTROL Hysteresis 0.5% ± 0.2% Full Scale Fixed OUTPUT Relay SPDT, 2A @ 250 VAC SSR 12 VDC ±2V, 20 mA Max. Current 4-20mA, 600 ½ Max. PROPORTIONAL CONTROL Band 3% Full Scale Fixed Period 20 Seconds Fixed RESET FUNCTION Adjustable ±3% Full Scale DISPLAY LED MOUNTING Front Panel or Socket Mount TERMINATION 8-Pin Plug-In WEIGHT NET: 6.4 oz. Shipping: 8 oz. \\\OPERATION MODEL NUMBER >>>>>> T3S B 4 Output R P2C Relay SS Relay Driver S Current, 4-20mA C Input RTD; Pt100½, 0 to 199°C J Thermocouple, 0 to 399°F J4F J Thermocouple, 0 to 799°F J8F K Thermocouple, 0 to 799°F K8F Sample Ordering Model Number: T3S-B4RJ4F Sockets for T3S: 600-3-0011 For Front Panel, 600-3-0013 For DIN Rail or Base.
