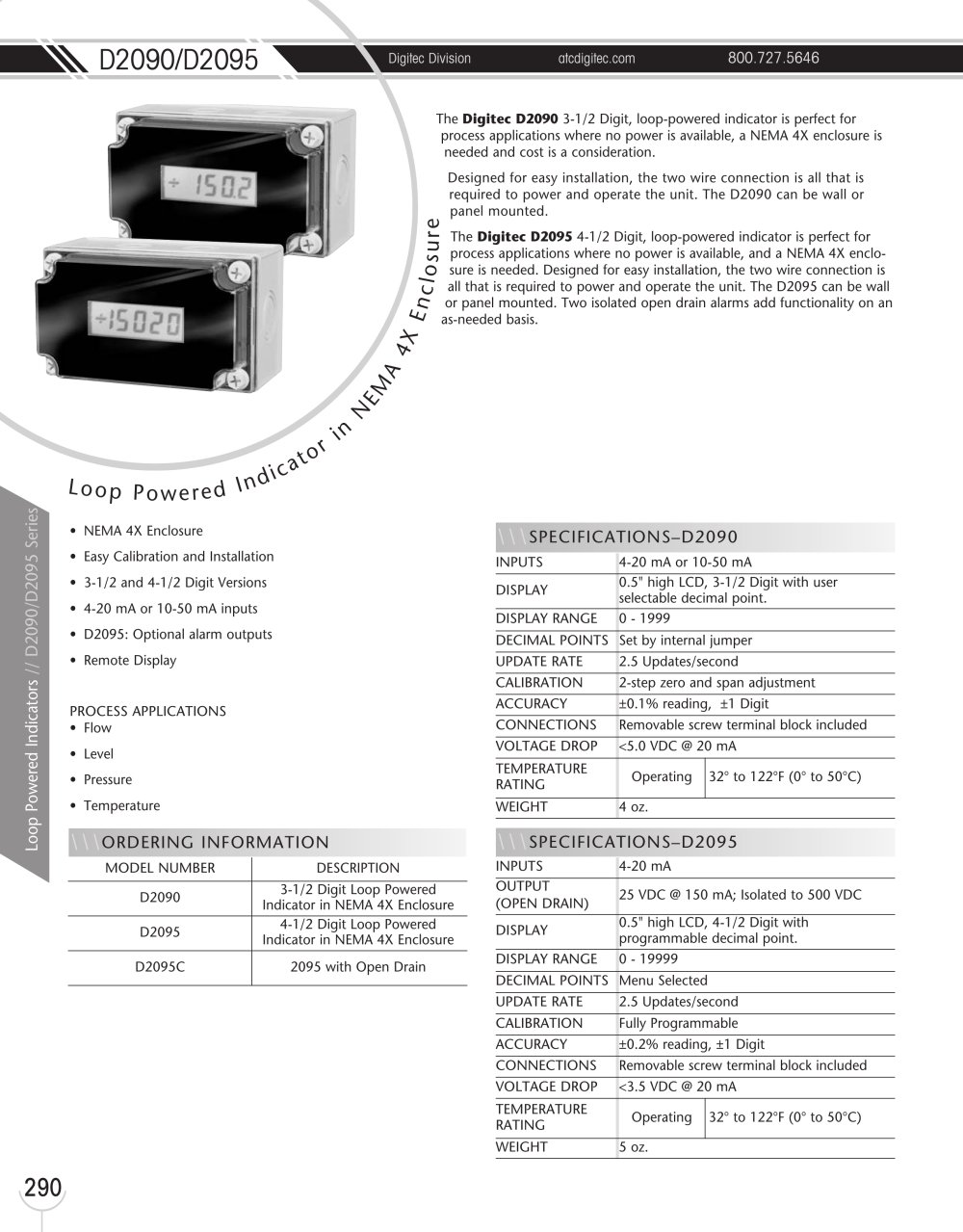

D2090/D2095 Digitec Division atcdigitec.com 800.727.5646 290 Loop Powered Indicators // D2090/D2095 Series The Digitec D2090 3-1/2 Digit, loop-powered indicator is perfect for process applications where no power is available, a NEMA 4X enclosure is needed and cost is a consideration. Designed for easy installation, the two wire connection is all that is required to power and operate the unit. The D2090 can be wall or panel mounted. The Digitec D2095 4-1/2 Digit, loop-powered indicator is perfect for process applications where no power is available, and a NEMA 4X enclosure is needed. Designed for easy installation, the two wire connection is all that is required to power and operate the unit. The D2095 can be wall or panel mounted. Two isolated open drain alarms add functionality on an as-needed basis. L o o p P o w e r e d I n d i c a t o r in NEMA 4X Enclosure • NEMA 4X Enclosure • Easy Calibration and Installation • 3-1/2 and 4-1/2 Digit Versions • 4-20 mA or 10-50 mA inputs • D2095: Optional alarm outputs • Remote Display PROCESS APPLICATIONS • Flow • Level • Pressure • Temperature \\\SPECIFICATIONS–D2090 INPUTS 4-20 mA or 10-50 mA DISPLAY 0.5" high LCD, 3-1/2 Digit with user selectable decimal point. DISPLAY RANGE 0 - 1999 DECIMAL POINTS Set by internal jumper UPDATE RATE 2.5 Updates/second CALIBRATION 2-step zero and span adjustment ACCURACY ±0.1% reading, ±1 Digit CONNECTIONS Removable screw terminal block included VOLTAGE DROP <5.0 VDC @ 20 mA TEMPERATURE RATING Operating 32° to 122°F (0° to 50°C) WEIGHT 4 oz. \\\ORDERING INFORMATION MODEL NUMBER DESCRIPTION D2090 3-1/2 Digit Loop Powered Indicator in NEMA 4X Enclosure D2095 4-1/2 Digit Loop Powered Indicator in NEMA 4X Enclosure D2095C 2095 with Open Drain \\\SPECIFICATIONS–D2095 INPUTS 4-20 mA OUTPUT (OPEN DRAIN) 25 VDC @ 150 mA; Isolated to 500 VDC DISPLAY 0.5" high LCD, 4-1/2 Digit with programmable decimal point. DISPLAY RANGE 0 - 19999 DECIMAL POINTS Menu Selected UPDATE RATE 2.5 Updates/second CALIBRATION Fully Programmable ACCURACY ±0.2% reading, ±1 Digit CONNECTIONS Removable screw terminal block included VOLTAGE DROP <3.5 VDC @ 20 mA TEMPERATURE RATING Operating 32° to 122°F (0° to 50°C) WEIGHT 5 oz.
