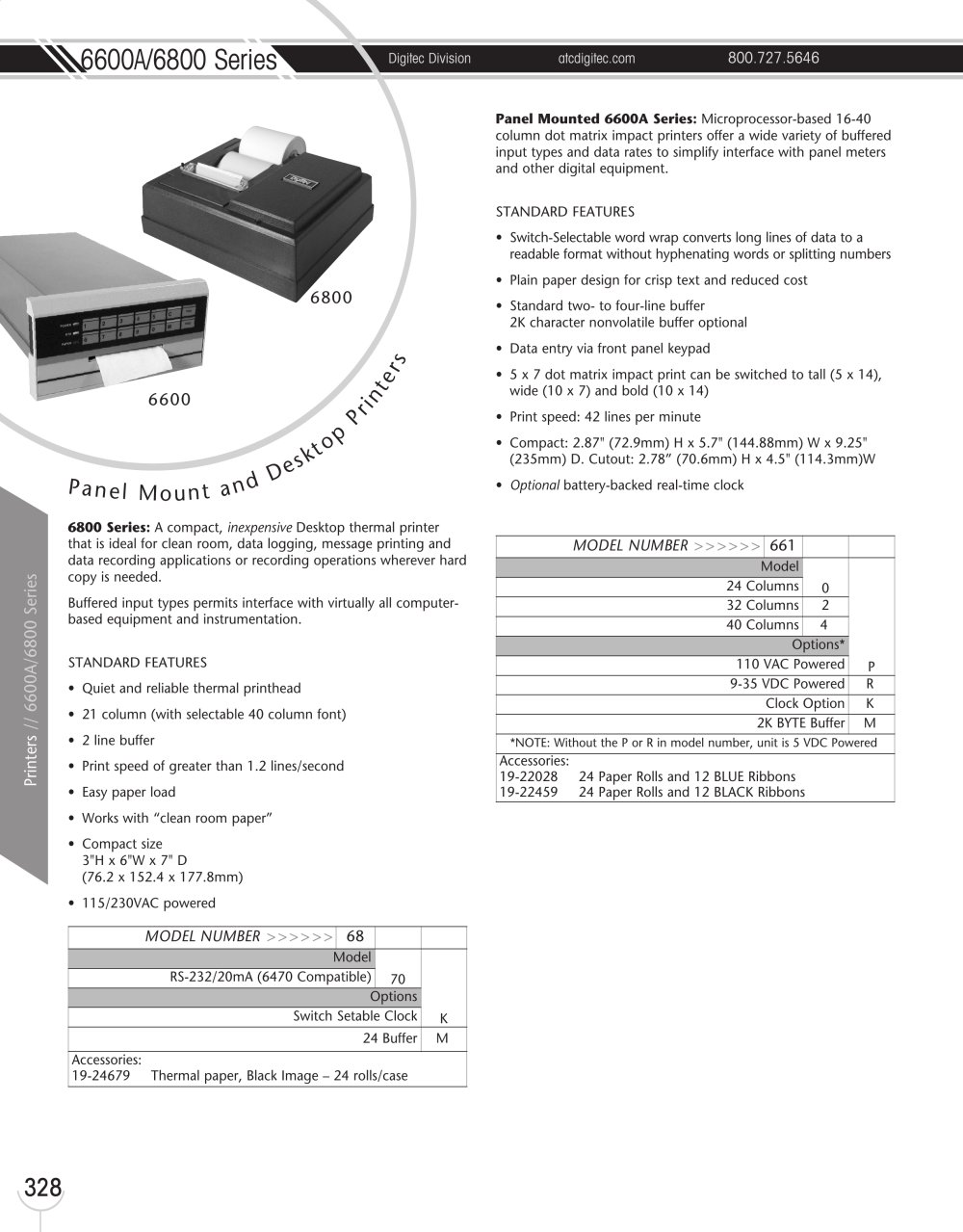

6600A/6800 Series Digitec Division atcdigitec.com 800.727.5646 328 Printers // 6600A/6800 Series P a n e l M o u n t a n d D e s k t o p P r inte rs 6800 Series: A compact, inexpensive Desktop thermal printer that is ideal for clean room, data logging, message printing and data recording applications or recording operations wherever hard copy is needed. Buffered input types permits interface with virtually all computerbased equipment and instrumentation. STANDARD FEATURES • Quiet and reliable thermal printhead • 21 column (with selectable 40 column font) • 2 line buffer • Print speed of greater than 1.2 lines/second • Easy paper load • Works with “clean room paper” • Compact size 3"H x 6"W x 7" D (76.2 x 152.4 x 177.8mm) • 115/230VAC powered Panel Mounted 6600A Series: Microprocessor-based 16-40 column dot matrix impact printers offer a wide variety of buffered input types and data rates to simplify interface with panel meters and other digital equipment. STANDARD FEATURES • Switch-Selectable word wrap converts long lines of data to a readable format without hyphenating words or splitting numbers • Plain paper design for crisp text and reduced cost • Standard two- to four-line buffer 2K character nonvolatile buffer optional • Data entry via front panel keypad • 5 x 7 dot matrix impact print can be switched to tall (5 x 14), wide (10 x 7) and bold (10 x 14) • Print speed: 42 lines per minute • Compact: 2.87" (72.9mm) H x 5.7" (144.88mm) W x 9.25" (235mm) D. Cutout: 2.78” (70.6mm) H x 4.5" (114.3mm)W • Optional battery-backed real-time clock MODEL NUMBER >>>>>> 68 Model 70 K RS-232/20mA (6470 Compatible) Options Switch Setable Clock 24 Buffer M Accessories: 19-24679 Thermal paper, Black Image – 24 rolls/case MODEL NUMBER >>>>>> 661 Model 0 P 24 Columns 32 Columns 2 40 Columns 4 Options* 110 VAC Powered 9-35 VDC Powered R Clock Option K 2K BYTE Buffer M *NOTE: Without the P or R in model number, unit is 5 VDC Powered Accessories: 19-22028 24 Paper Rolls and 12 BLUE Ribbons 19-22459 24 Paper Rolls and 12 BLACK Ribbons 6600 6800
