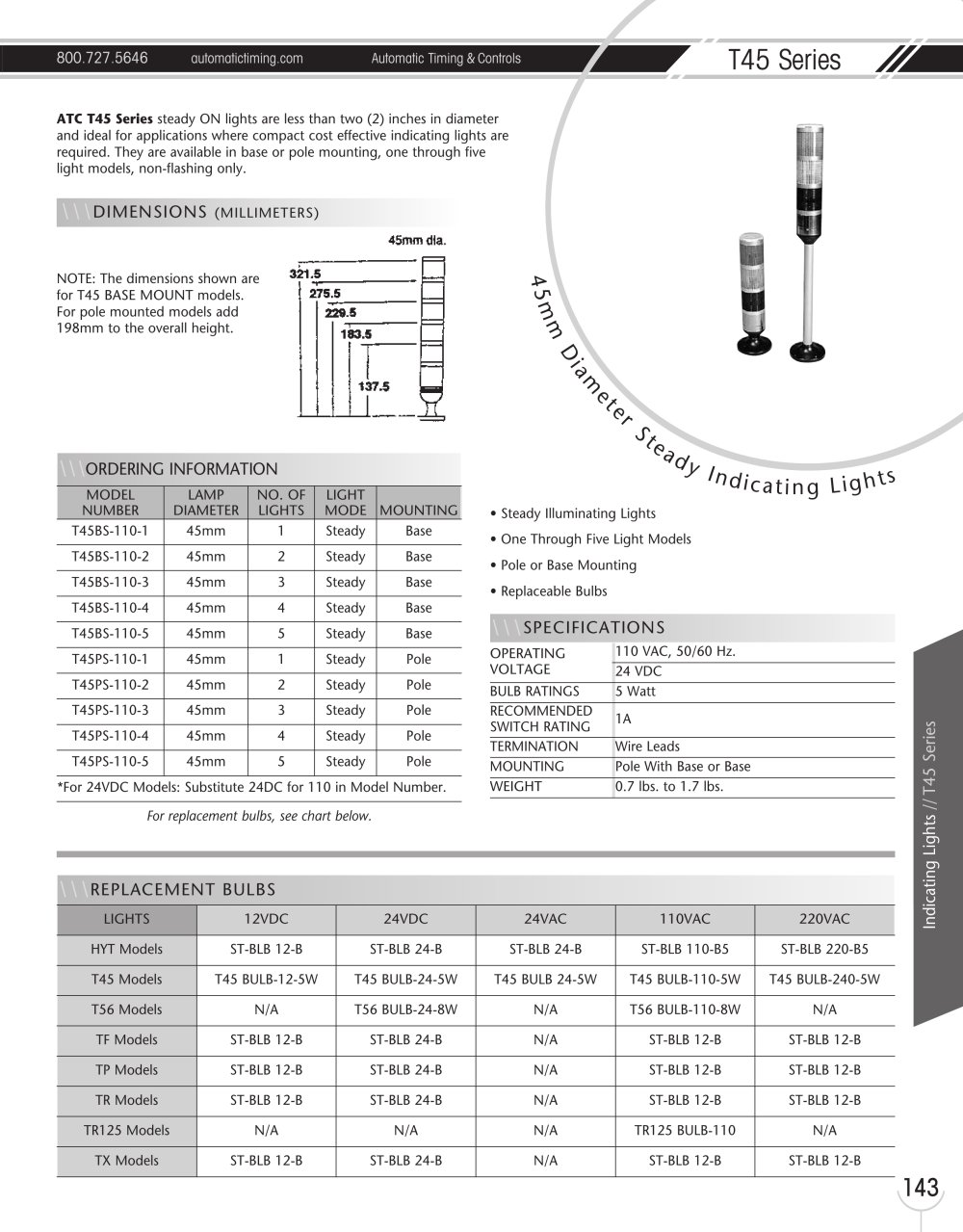

800.727.5646 automatictiming.com Automatic Timing & Controls T45 Series Indicating Lights // T45 Series ATC T45 Series steady ON lights are less than two (2) inches in diameter and ideal for applications where compact cost effective indicating lights are required. They are available in base or pole mounting, one through five light models, non-flashing only. 45mm Di ame t e r S t e a d y I n d i c a t i n g L i g h t s 143 NOTE: The dimensions shown are for T45 BASE MOUNT models. For pole mounted models add 198mm to the overall height. • Steady Illuminating Lights • One Through Five Light Models • Pole or Base Mounting • Replaceable Bulbs \\\DIMENSIONS (MILLIMETERS) \\\SPECIFICATIONS OPERATING VOLTAGE 110 VAC, 50/60 Hz. 24 VDC BULB RATINGS 5 Watt RECOMMENDED SWITCH RATING 1A TERMINATION Wire Leads MOUNTING Pole With Base or Base WEIGHT 0.7 lbs. to 1.7 lbs. \\\REPLACEMENT BULBS LIGHTS 12VDC 24VDC 24VAC 110VAC 220VAC HYT Models ST-BLB 12-B ST-BLB 24-B ST-BLB 24-B ST-BLB 110-B5 ST-BLB 220-B5 T45 Models T45 BULB-12-5W T45 BULB-24-5W T45 BULB 24-5W T45 BULB-110-5W T45 BULB-240-5W T56 Models N/A T56 BULB-24-8W N/A T56 BULB-110-8W N/A TF Models ST-BLB 12-B ST-BLB 24-B N/A ST-BLB 12-B ST-BLB 12-B TP Models ST-BLB 12-B ST-BLB 24-B N/A ST-BLB 12-B ST-BLB 12-B TR Models ST-BLB 12-B ST-BLB 24-B N/A ST-BLB 12-B ST-BLB 12-B TR125 Models N/A N/A N/A TR125 BULB-110 N/A TX Models ST-BLB 12-B ST-BLB 24-B N/A ST-BLB 12-B ST-BLB 12-B For replacement bulbs, see chart below. \\\ORDERING INFORMATION MODEL NUMBER LAMP DIAMETER NO. OF LIGHTS LIGHT MODE MOUNTING T45BS-110-1 45mm 1 Steady Base T45BS-110-2 45mm 2 Steady Base T45BS-110-3 45mm 3 Steady Base T45BS-110-4 45mm 4 Steady Base T45BS-110-5 45mm 5 Steady Base T45PS-110-1 45mm 1 Steady Pole T45PS-110-2 45mm 2 Steady Pole T45PS-110-3 45mm 3 Steady Pole T45PS-110-4 45mm 4 Steady Pole T45PS-110-5 45mm 5 Steady Pole *For 24VDC Models: Substitute 24DC for 110 in Model Number.
