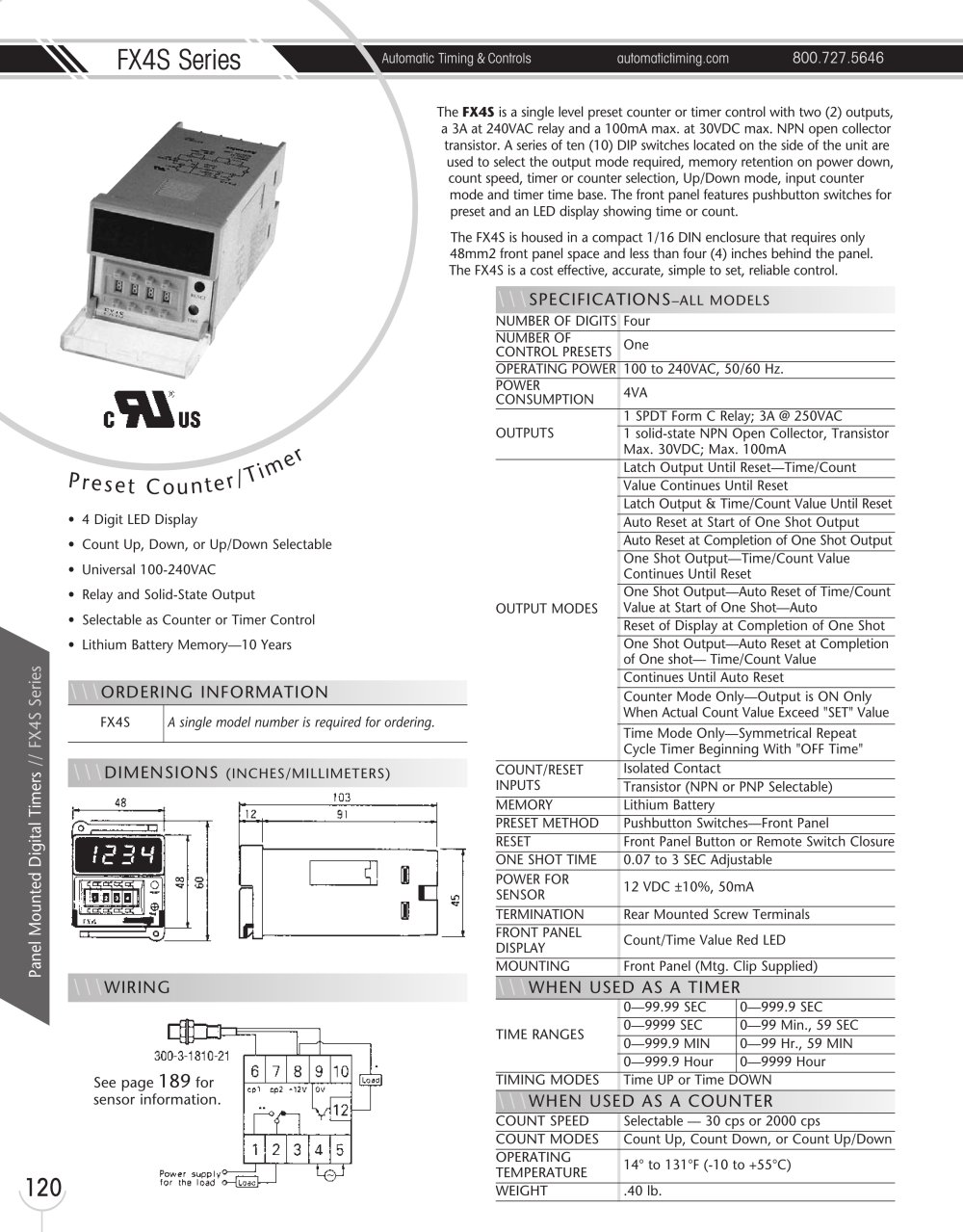

FX4S Series Automatic Timing & Controls automatictiming.com 800.727.5646 120 Panel Mounted Digital Timers // FX4S Series The FX4S is a single level preset counter or timer control with two (2) outputs, a 3A at 240VAC relay and a 100mA max. at 30VDC max. NPN open collector transistor. A series of ten (10) DIP switches located on the side of the unit are used to select the output mode required, memory retention on power down, count speed, timer or counter selection, Up/Down mode, input counter mode and timer time base. The front panel features pushbutton switches for preset and an LED display showing time or count. The FX4S is housed in a compact 1/16 DIN enclosure that requires only 48mm2 front panel space and less than four (4) inches behind the panel. The FX4S is a cost effective, accurate, simple to set, reliable control. P r e s e t C o un te r / T i m e r • 4 Digit LED Display • Count Up, Down, or Up/Down Selectable • Universal 100-240VAC • Relay and Solid-State Output • Selectable as Counter or Timer Control • Lithium Battery Memory—10 Years See page 189 for sensor information. \\\WIRING \\\DIMENSIONS (INCHES/MILLIMETERS) \\\ORDERING INFORMATION FX4S A single model number is required for ordering. \\\SPECIFICATIONS–ALL MODELS NUMBER OF DIGITS Four NUMBER OF CONTROL PRESETS One OPERATING POWER 100 to 240VAC, 50/60 Hz. POWER CONSUMPTION 4VA OUTPUTS 1 SPDT Form C Relay; 3A @ 250VAC 1 solid-state NPN Open Collector, Transistor Max. 30VDC; Max. 100mA OUTPUT MODES Latch Output Until Reset—Time/Count Value Continues Until Reset Latch Output & Time/Count Value Until Reset Auto Reset at Start of One Shot Output Auto Reset at Completion of One Shot Output One Shot Output—Time/Count Value Continues Until Reset One Shot Output—Auto Reset of Time/Count Value at Start of One Shot—Auto Reset of Display at Completion of One Shot One Shot Output—Auto Reset at Completion of One shot— Time/Count Value Continues Until Auto Reset Counter Mode Only—Output is ON Only When Actual Count Value Exceed "SET" Value Time Mode Only—Symmetrical Repeat Cycle Timer Beginning With "OFF Time" COUNT/RESET INPUTS Isolated Contact Transistor (NPN or PNP Selectable) MEMORY Lithium Battery PRESET METHOD Pushbutton Switches—Front Panel RESET Front Panel Button or Remote Switch Closure ONE SHOT TIME 0.07 to 3 SEC Adjustable POWER FOR SENSOR 12 VDC ±10%, 50mA TERMINATION Rear Mounted Screw Terminals FRONT PANEL DISPLAY Count/Time Value Red LED MOUNTING Front Panel (Mtg. Clip Supplied) \\\WHEN USED AS A TIMER TIME RANGES 0—99.99 SEC 0—999.9 SEC 0—9999 SEC 0—99 Min., 59 SEC 0—999.9 MIN 0—99 Hr., 59 MIN 0—999.9 Hour 0—9999 Hour TIMING MODES Time UP or Time DOWN \\\WHEN USED AS A COUNTER COUNT SPEED Selectable — 30 cps or 2000 cps COUNT MODES Count Up, Count Down, or Count Up/Down OPERATING TEMPERATURE 14° to 131°F (-10 to +55°C) WEIGHT .40 lb.
