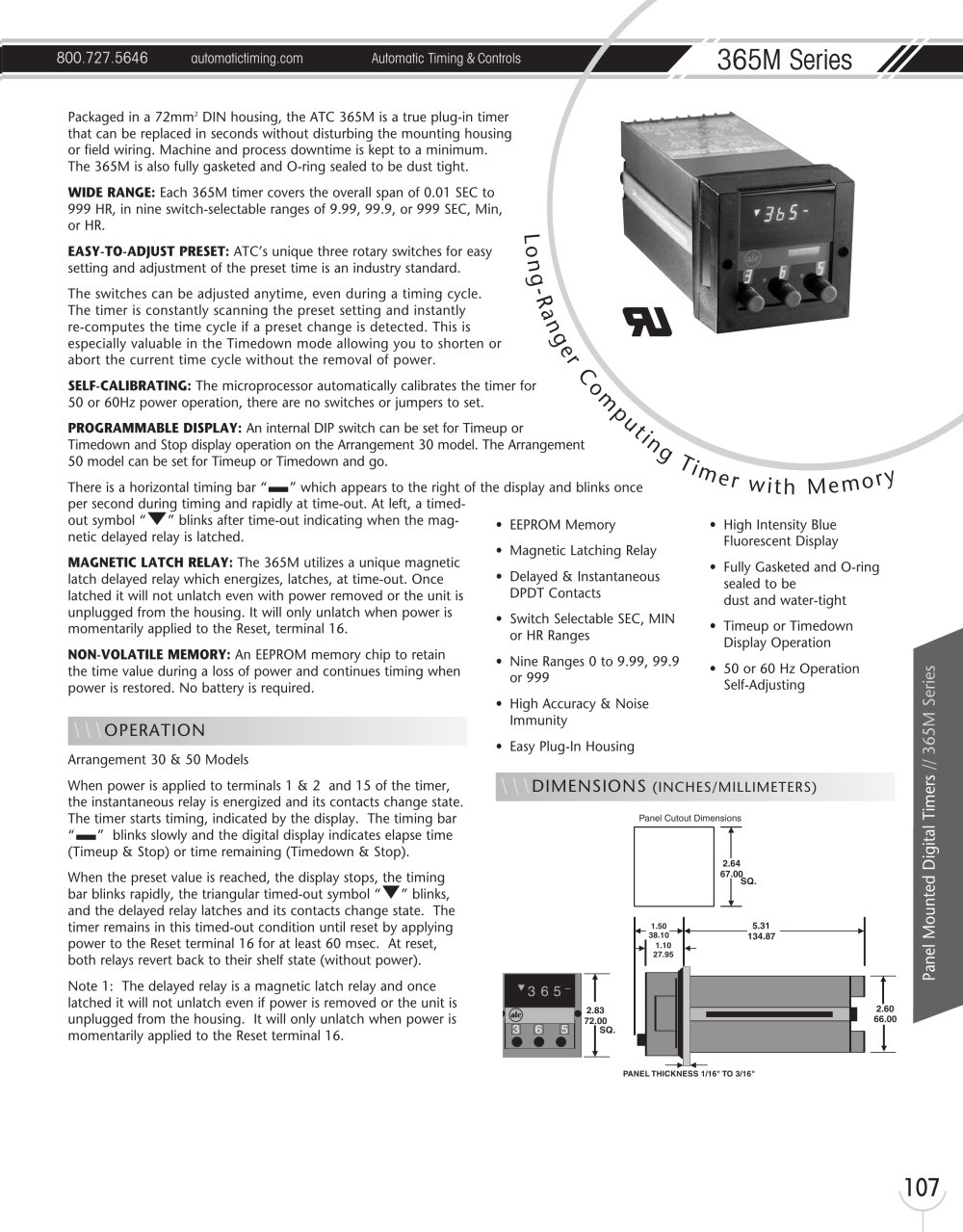

800.727.5646 automatictiming.com Automatic Timing & Controls 365M Series Panel Mounted Digital Timers // 365M Series 107 Packaged in a 72mm2 DIN housing, the ATC 365M is a true plug-in timer that can be replaced in seconds without disturbing the mounting housing or field wiring. Machine and process downtime is kept to a minimum. The 365M is also fully gasketed and O-ring sealed to be dust tight. WIDE RANGE: Each 365M timer covers the overall span of 0.01 SEC to 999 HR, in nine switch-selectable ranges of 9.99, 99.9, or 999 SEC, Min, or HR. EASY-TO-ADJUST PRESET: ATC’s unique three rotary switches for easy setting and adjustment of the preset time is an industry standard. The switches can be adjusted anytime, even during a timing cycle. The timer is constantly scanning the preset setting and instantly re-computes the time cycle if a preset change is detected. This is especially valuable in the Timedown mode allowing you to shorten or abort the current time cycle without the removal of power. SELF-CALIBRATING: The microprocessor automatically calibrates the timer for 50 or 60Hz power operation, there are no switches or jumpers to set. PROGRAMMABLE DISPLAY: An internal DIP switch can be set for Timeup or Timedown and Stop display operation on the Arrangement 30 model. The Arrangement 50 model can be set for Timeup or Timedown and go. There is a horizontal timing bar “ ” which appears to the right of the display and blinks once per second during timing and rapidly at time-out. At left, a timedout symbol “ ” blinks after time-out indicating when the magnetic delayed relay is latched. MAGNETIC LATCH RELAY: The 365M utilizes a unique magnetic latch delayed relay which energizes, latches, at time-out. Once latched it will not unlatch even with power removed or the unit is unplugged from the housing. It will only unlatch when power is momentarily applied to the Reset, terminal 16. NON-VOLATILE MEMORY: An EEPROM memory chip to retain the time value during a loss of power and continues timing when power is restored. No battery is required. Arrangement 30 & 50 Models When power is applied to terminals 1 & 2 and 15 of the timer, the instantaneous relay is energized and its contacts change state. The timer starts timing, indicated by the display. The timing bar “ ” blinks slowly and the digital display indicates elapse time (Timeup & Stop) or time remaining (Timedown & Stop). When the preset value is reached, the display stops, the timing bar blinks rapidly, the triangular timed-out symbol “ ” blinks, and the delayed relay latches and its contacts change state. The timer remains in this timed-out condition until reset by applying power to the Reset terminal 16 for at least 60 msec. At reset, both relays revert back to their shelf state (without power). Note 1: The delayed relay is a magnetic latch relay and once latched it will not unlatch even if power is removed or the unit is unplugged from the housing. It will only unlatch when power is momentarily applied to the Reset terminal 16. Long-Ranger Compu t i ng T i me r w i t h M e m o r y Panel Cutout 1.50 38.10 1.10 27.95 5.31 134.87 2.60 66.00 PANEL THICKNESS 1/16" TO 3/16" DIMENSIONS: 3 6 5 2.83 72.00 SQ. 3 6 5 2.64 67.00 SQ. Panel Cutout Dimensions 1.50 38.10 1.10 27.95 5.31 134.87 2.60 66.00 PANEL THICKNESS 1/16" TO 3/16" DIMENSIONS: 3 6 5 2.83 72.00 SQ. 3 6 5 • EEPROM Memory • Magnetic Latching Relay • Delayed & Instantaneous DPDT Contacts • Switch Selectable SEC, MIN or HR Ranges • Nine Ranges 0 to 9.99, 99.9 or 999 • High Accuracy & Noise Immunity • Easy Plug-In Housing • High Intensity Blue Fluorescent Display • Fully Gasketed and O-ring sealed to be dust and water-tight • Timeup or Timedown Display Operation • 50 or 60 Hz Operation Self-Adjusting \\\DIMENSIONS (INCHES/MILLIMETERS) \\\OPERATION
