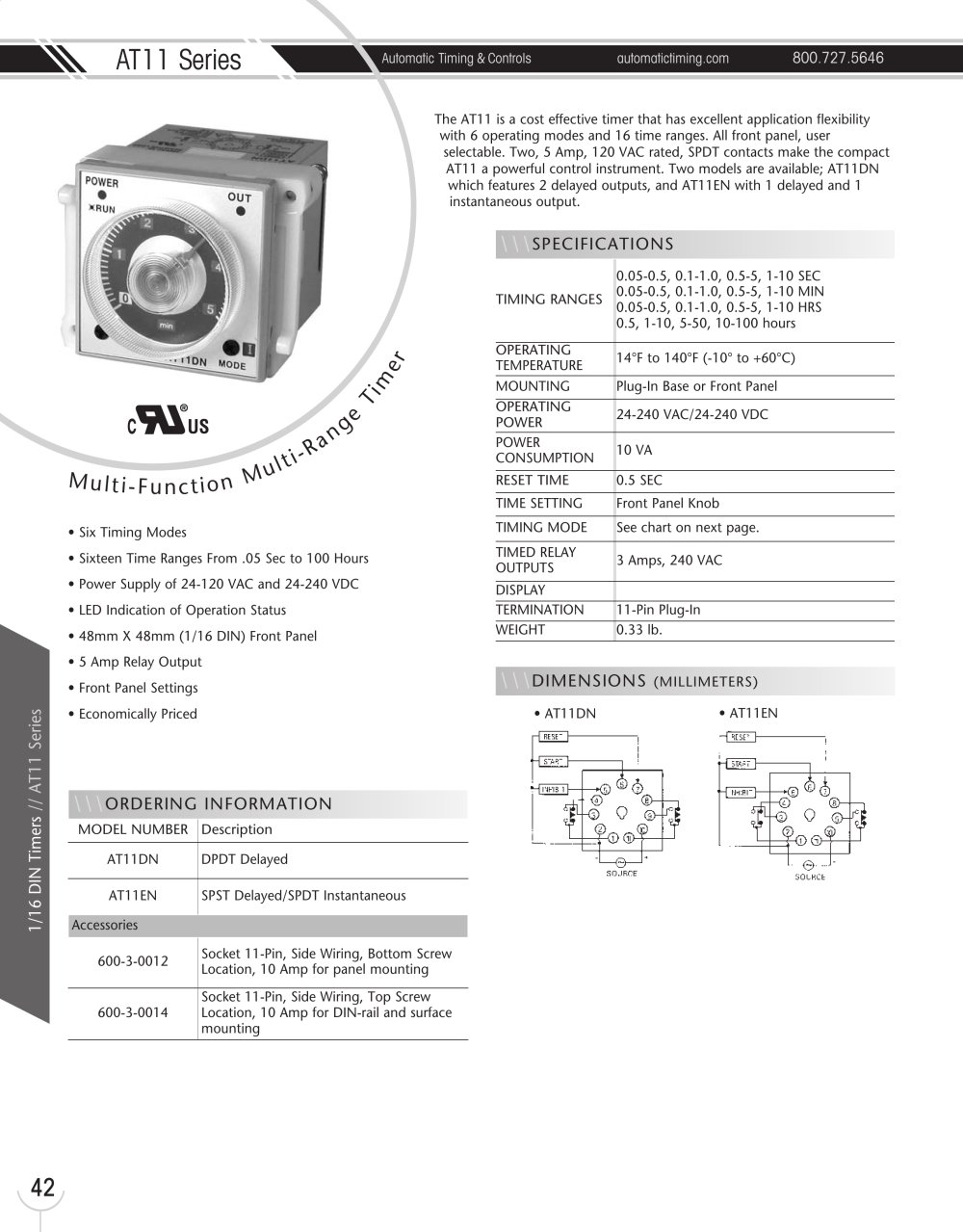

AT11 Series Automatic Timing & Controls automatictiming.com 800.727.5646 421/16 DIN Timers // AT11 Series The AT11 is a cost effective timer that has excellent application flexibility with 6 operating modes and 16 time ranges. All front panel, user selectable. Two, 5 Amp, 120 VAC rated, SPDT contacts make the compact AT11 a powerful control instrument. Two models are available; AT11DN which features 2 delayed outputs, and AT11EN with 1 delayed and 1 instantaneous output. M u l t i - F u n c t i on M u l t i - R a nge Timer • Six Timing Modes • Sixteen Time Ranges From .05 Sec to 100 Hours • Power Supply of 24-120 VAC and 24-240 VDC • LED Indication of Operation Status • 48mm X 48mm (1/16 DIN) Front Panel • 5 Amp Relay Output • Front Panel Settings • Economically Priced • AT11DN • AT11EN \\\SPECIFICATIONS TIMING RANGES 0.05-0.5, 0.1-1.0, 0.5-5, 1-10 SEC 0.05-0.5, 0.1-1.0, 0.5-5, 1-10 MIN 0.05-0.5, 0.1-1.0, 0.5-5, 1-10 HRS 0.5, 1-10, 5-50, 10-100 hours OPERATING TEMPERATURE 14°F to 140°F (-10° to +60°C) MOUNTING Plug-In Base or Front Panel OPERATING POWER 24-240 VAC/24-240 VDC POWER CONSUMPTION 10 VA RESET TIME 0.5 SEC TIME SETTING Front Panel Knob TIMING MODE See chart on next page. TIMED RELAY OUTPUTS 3 Amps, 240 VAC DISPLAY TERMINATION 11-Pin Plug-In WEIGHT 0.33 lb. \\\DIMENSIONS (MILLIMETERS) \\\ORDERING INFORMATION MODEL NUMBER Description AT11DN DPDT Delayed AT11EN SPST Delayed/SPDT Instantaneous Accessories 600-3-0012 Socket 11-Pin, Side Wiring, Bottom Screw Location, 10 Amp for panel mounting 600-3-0014 Socket 11-Pin, Side Wiring, Top Screw Location, 10 Amp for DIN-rail and surface mounting
