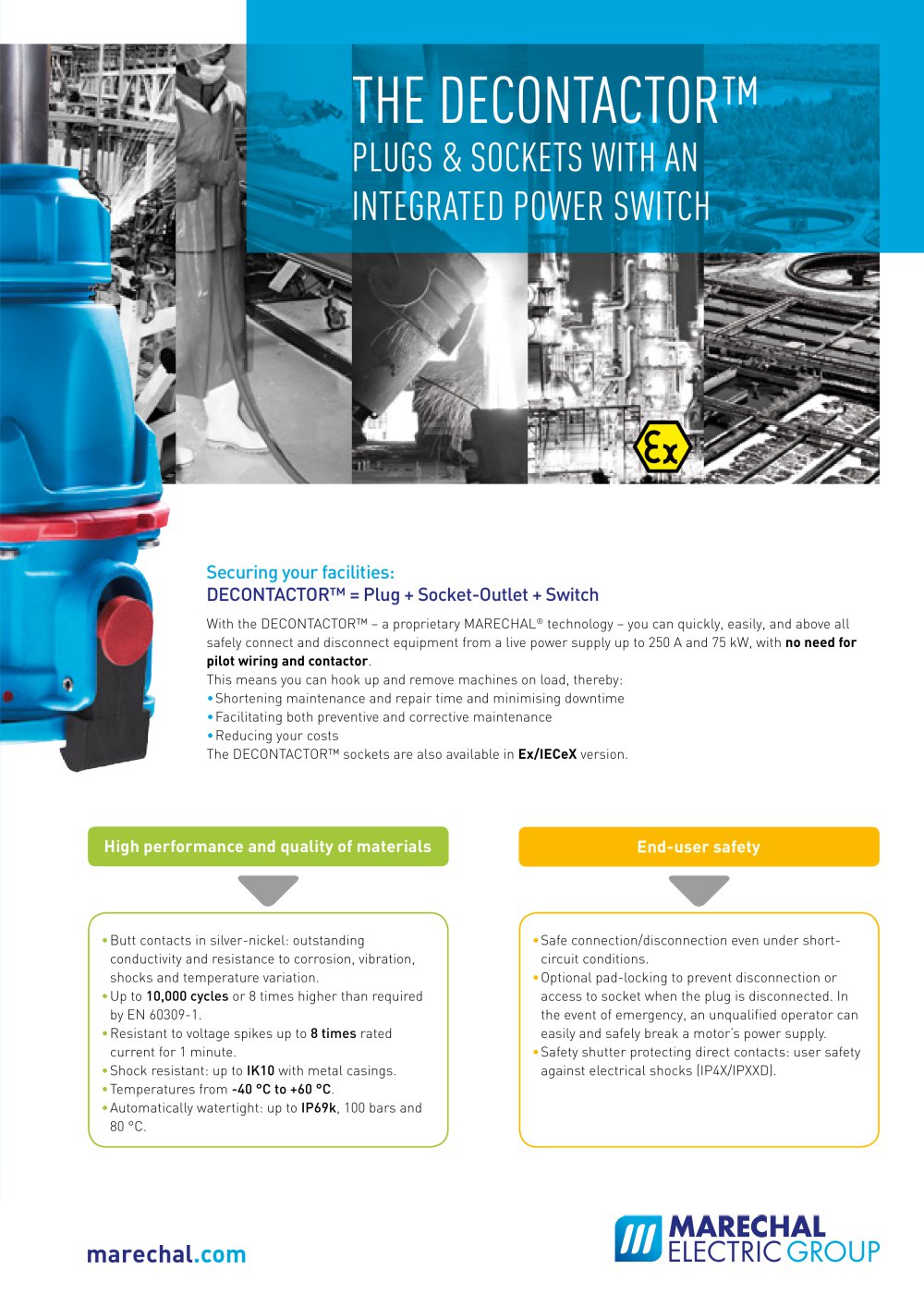

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Georgia", serif; } .font4 { font:29.00pt "Georgia", serif; } .font5 { font:30.00pt "Georgia", serif; } Since 1953 MARECHAL Electric has been designing, manufacturing and selling plugs and
sockets with an integral load-break isolating switch known as the decontactor. Equipment up to 250 A can potentially be connected and disconnected under load without any risk. A release button switches off the power before the plug can be retrieved.
There is no need for pilot wiring and contactor. Press the release button to free the plug. (here a 90 A inline connector) The plug is safely disconnected
High quality materials • Butt contacts in silver-nickel: outstanding conductivity and resistance to corrosion, vibration, shocks and temperature variation, • Spring loaded elastic terminals: wiring resists vibration and temperature changes, • Stainless steel fastenings, • GRP casings are IK08 shock resistant. Metal casings are IK09 or IK10 ; UV resistant, • Ambient temperature: -40 °C to +60 °C.
End-user safety • Offers 2 to 8 times as many operating cycles as required in EN 60309-1, • Safe connection/disconnection even under sort-circuit conditions, • Resistance to current surges up to 8 x In for 1 minute, • Optional pad-locking to prevent disconnection or access to
socket when the plug is disconnected. In the event of emergency, an unqualified operator can easily and safely break a motor's power supply.
