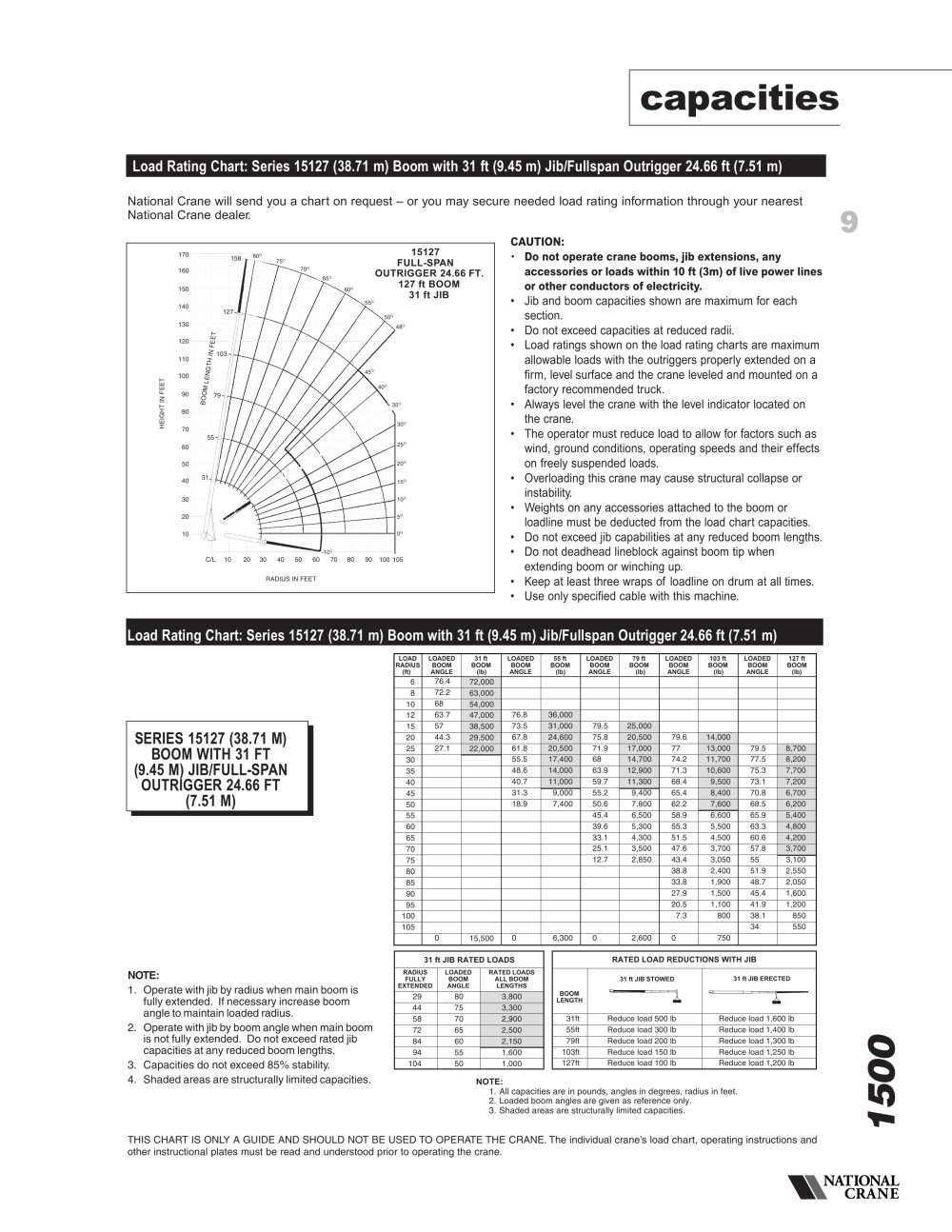

NOTE: 1. All capacities are in pounds, angles in degrees, radius in feet. 2. Loaded boom angles are given as reference only. 3. Shaded areas are structurally limited capacities. 6 8 10 12 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 72,000 63,000 54,000 47,000 38,500 29,500 22,000 15,500 76.4 72.2 68 63.7 57 44.3 27.1 0 76.8 73.5 67.8 61.8 55.5 48.6 40.7 31.3 18.9 0 36,000 31,000 24,600 20,500 17,400 14,000 11,000 9,000 7,400 6,300 79.5 75.8 71.9 68 63.9 59.7 55.2 50.6 45.4 39.6 33.1 25.1 12.7 0 25,000 20,500 17,000 14,700 12,900 11,300 9,400 7,800 6,500 5,300 4,300 3,500 2,850 2,600 79.6 77 74.2 71.3 68.4 65.4 62.2 58.9 55.3 51.5 47.6 43.4 38.8 33.8 27.9 20.5 7.3 0 14,000 13,000 11,700 10,600 9,500 8,400 7,600 6,600 5,500 4,500 3,700 3,050 2,400 1,900 1,500 1,100 800 750 79.5 77.5 75.3 73.1 70.8 68.5 65.9 63.3 60.6 57.8 55 51.9 48.7 45.4 41.9 38.1 34 8,700 8,200 7,700 7,200 6,700 6,200 5,400 4,800 4,200 3,700 3,100 2,550 2,050 1,600 1,200 850 550 127 ft BOOM LOADED BOOM ANGLE 103 ft BOOM LOADED BOOM ANGLE 79 ft BOOM LOADED BOOM ANGLE 55 ft BOOM LOADED BOOM ANGLE LOADED BOOM ANGLE LOAD RADIUS (ft) 31 ft BOOM (lb) (lb) (lb) (lb) (lb) Reduce load 1,600 lb Reduce load 1,400 lb Reduce load 1,300 lb Reduce load 1,250 lb Reduce load 1,200 lb 31 ft JIB RATED LOADS 31 ft JIB ERECTED Reduce load 500 lb Reduce load 300 lb Reduce load 200 lb Reduce load 150 lb Reduce load 100 lb BOOM LENGTH 31ft 55ft 79ft 103ft 127ft RATED LOAD REDUCTIONS WITH JIB RADIUS FULLY EXTENDED LOADED BOOM ANGLE RATED LOADS ALL BOOM LENGTHS 80 75 70 65 60 55 50 29 44 58 72 84 94 104 3,800 3,300 2,900 2,500 2,150 1,600 1,000 31 ft JIB STOWED 9 1500 capacities Load Rating Chart: Series 15127 (38.71 m) Boom with 31 ft (9.45 m) Jib/Fullspan Outrigger 24.66 ft (7.51 m) Load Rating Chart: Series 15127 (38.71 m) Boom with 31 ft (9.45 m) Jib/Fullspan Outrigger 24.66 ft (7.51 m) THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. National Crane will send you a chart on request – or you may secure needed load rating information through your nearest National Crane dealer. 170 160 150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 C/L 10 20 30 40 50 60 70 80 90 100 105 158 103 80O 75O 55O 60O 65O 70O 50O 45O 40O 35O 30O 25O 20O 10O 15O 5O RADIUS IN FEET HEIGHT IN FEET 15127 FULL-SPAN OUTRIGGER 24.66 FT. 127 ft BOOM 31 ft JIB 0O 48O -10O 127 79 TEEF NI HTGNEL MOOB 55 31 NOTE: 1. Operate with jib by radius when main boom is fully extended. If necessary increase boom angle to maintain loaded radius. 2. Operate with jib by boom angle when main boom is not fully extended. Do not exceed rated jib capacities at any reduced boom lengths. 3. Capacities do not exceed 85% stability. 4. Shaded areas are structurally limited capacities. 120 100 80 60 40 HEIGHT IN FEET OT ND TO S A 140 160 SWITCH POSITION OPERATING MODE LMI OPERATING CODE SWITCH 01 MAIN BOOM - NO JIB STOWED 02 MAIN BOOM - JIB STOWED 03 25 FT TELE JIB 0 CAUTION: • Do not operate crane booms, jib extensions, any accessories or loads within 10 ft (3m) of live power lines or other conductors of electricity. • Jib and boom capacities shown are maximum for each section. • Do not exceed capacities at reduced radii. • Load ratings shown on the load rating charts are maximum allowable loads with the outriggers properly extended on a firm, level surface and the crane leveled and mounted on a factory recommended truck. • Always level the crane with the level indicator located on the crane. • The operator must reduce load to allow for factors such as wind, ground conditions, operating speeds and their effects on freely suspended loads. • Overloading this crane may cause structural collapse or instability. • Weights on any accessories attached to the boom or loadline must be deducted from the load chart capacities. • Do not exceed jib capabilities at any reduced boom lengths. • Do not deadhead lineblock against boom tip when extending boom or winching up. • Keep at least three wraps of loadline on drum at all times. • Use only specified cable with this machine. SERIES 15127 (38.71 M) BOOM WITH 31 FT (9.45 M) JIB/FULL-SPAN OUTRIGGER 24.66 FT (7.51 M)
