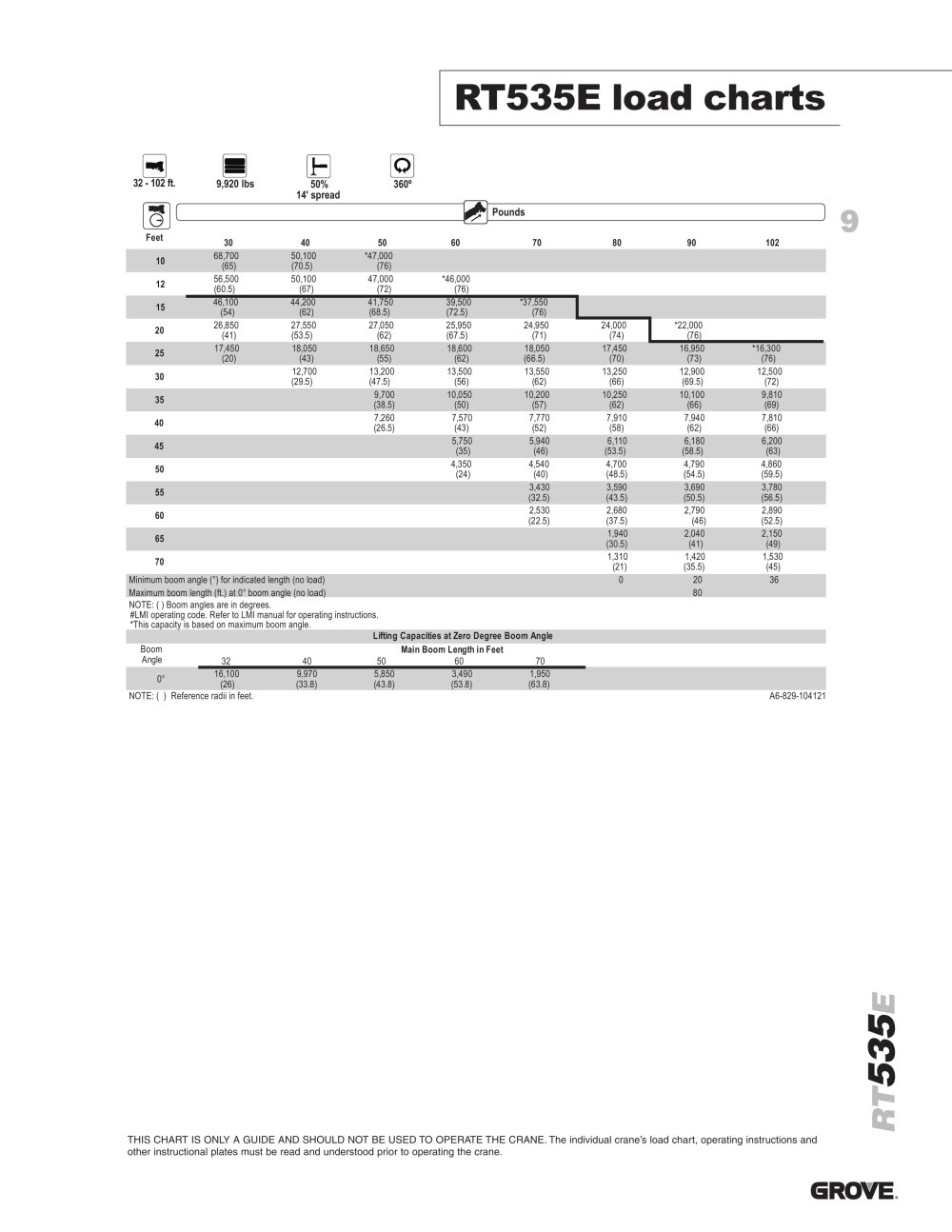

RT535E load charts
9
RT535E
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and
other instructional plates must be read and understood prior to operating the crane.
Pounds
32 - 102 ft. 9,920 lbs 50%
14' spread
360º
Feet 30 40 50 60 70 80 90 102
10 68,700
(65)
50,100
(70.5)
*47,000
(76)
12 56,500
(60.5)
50,100
(67)
47,000
(72)
*46,000
(76)
15 46,100
(54)
44,200
(62)
41,750
(68.5)
39,500
(72.5)
*37,550
(76)
20 26,850
(41)
27,550
(53.5)
27,050
(62)
25,950
(67.5)
24,950
(71)
24,000
(74)
*22,000
(76)
25 17,450
(20)
18,050
(43)
18,650
(55)
18,600
(62)
18,050
(66.5)
17,450
(70)
16,950
(73)
*16,300
(76)
30 12,700
(29.5)
13,200
(47.5)
13,500
(56)
13,550
(62)
13,250
(66)
12,900
(69.5)
12,500
(72)
35 9,700
(38.5)
10,050
(50)
10,200
(57)
10,250
(62)
10,100
(66)
9,810
(69)
40 7,260
(26.5)
7,570
(43)
7,770
(52)
7,910
(58)
7,940
(62)
7,810
(66)
45 5,750
(35)
5,940
(46)
6,110
(53.5)
6,180
(58.5)
6,200
(63)
50 4,350
(24)
4,540
(40)
4,700
(48.5)
4,790
(54.5)
4,860
(59.5)
55 3,430
(32.5)
3,590
(43.5)
3,690
(50.5)
3,780
(56.5)
60 2,530
(22.5)
2,680
(37.5)
2,790
(46)
2,890
(52.5)
65 1,940
(30.5)
2,040
(41)
2,150
(49)
70 1,310
(21)
1,420
(35.5)
1,530
(45)
Minimum boom angle (°) for indicated length (no load) 0 20 36
Maximum boom length (ft.) at 0° boom angle (no load) 80
NOTE: ( ) Boom angles are in degrees.
#LMI operating code. Refer to LMI manual for operating instructions.
*This capacity is based on maximum boom angle.
Lifting Capacities at Zero Degree Boom Angle
Boom
Angle
Main Boom Length in Feet
32 40 50 60 70
0° 16,100
(26)
9,970
(33.8)
5,850
(43.8)
3,490
(53.8)
1,950
(63.8)
NOTE: ( ) Reference radii in feet. A6-829-104121
