Text version of the page
9
model 8000
Option

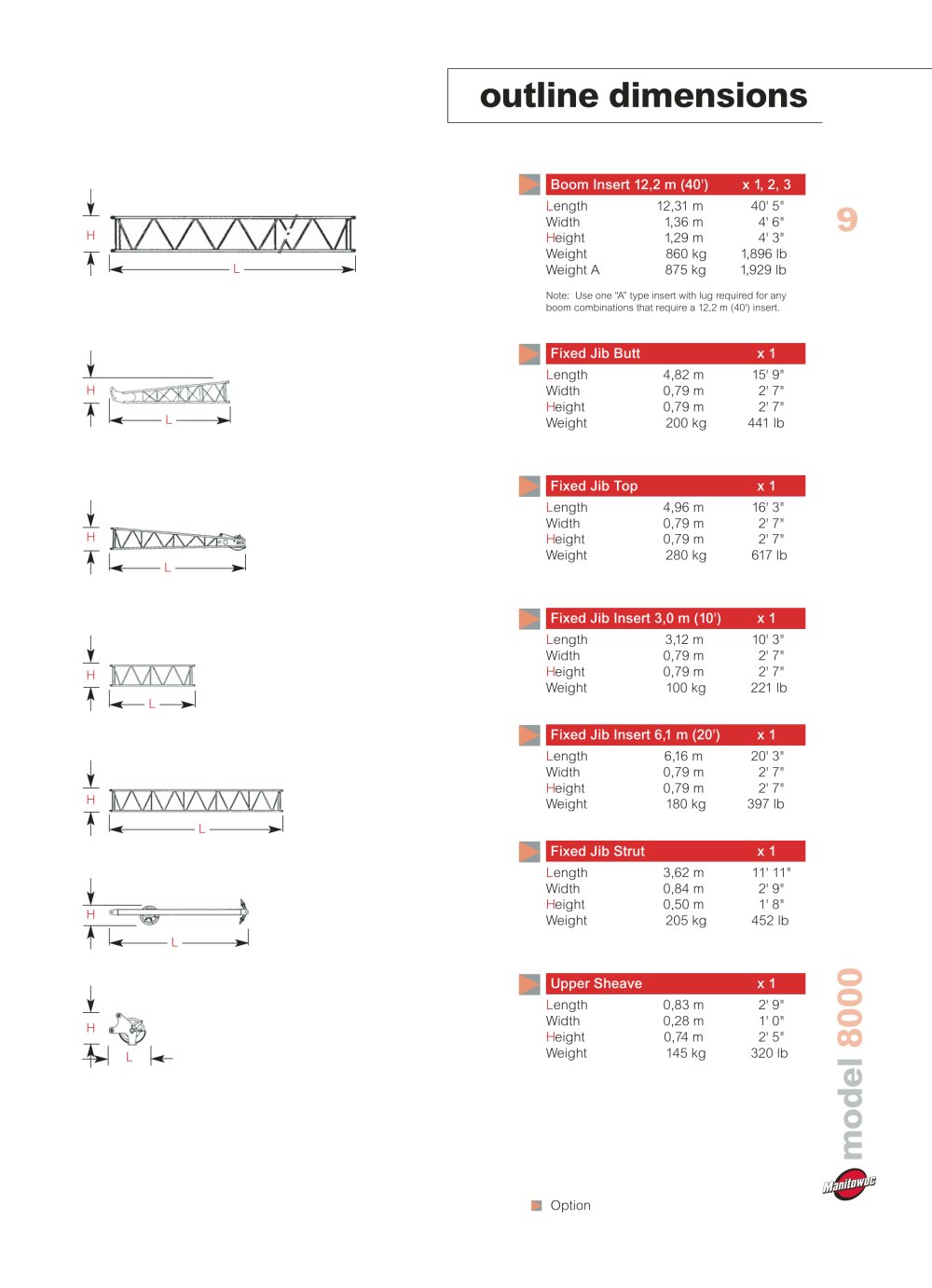

outline dimensions
Boom Insert 12,2 m (40') x 1, 2, 3
Length 12,31 m 40' 5"
Width 1,36 m 4' 6"
Height 1,29 m 4' 3"
Weight 860 kg 1,896 lb
Weight A 875 kg 1,929 lb
Note: Use one “A” type insert with lug required for any
boom combinations that require a 12,2 m (40') insert.
Fixed Jib Butt x 1
Length 4,82 m 15' 9"
Width 0,79 m 2' 7"
Height 0,79 m 2' 7"
Weight 200 kg 441 lb
Fixed Jib Top x 1
Length 4,96 m 16' 3"
Width 0,79 m 2' 7"
Height 0,79 m 2' 7"
Weight 280 kg 617 lb
Fixed Jib Insert 3,0 m (10') x 1
Length 3,12 m 10' 3"
Width 0,79 m 2' 7"
Height 0,79 m 2' 7"
Weight 100 kg 221 lb
Fixed Jib Insert 6,1 m (20') x 1
Length 6,16 m 20' 3"
Width 0,79 m 2' 7"
Height 0,79 m 2' 7"
Weight 180 kg 397 lb
Fixed Jib Strut x 1
Length 3,62 m 11' 11"
Width 0,84 m 2' 9"
Height 0,50 m 1' 8"
Weight 205 kg 452 lb
Upper Sheave x 1
Length 0,83 m 2' 9"
Width 0,28 m 1' 0"
Height 0,74 m 2' 5"
L Weight 145 kg 320 lb
L
H
L
H
L
H
L
H
H
L
H
L
H
