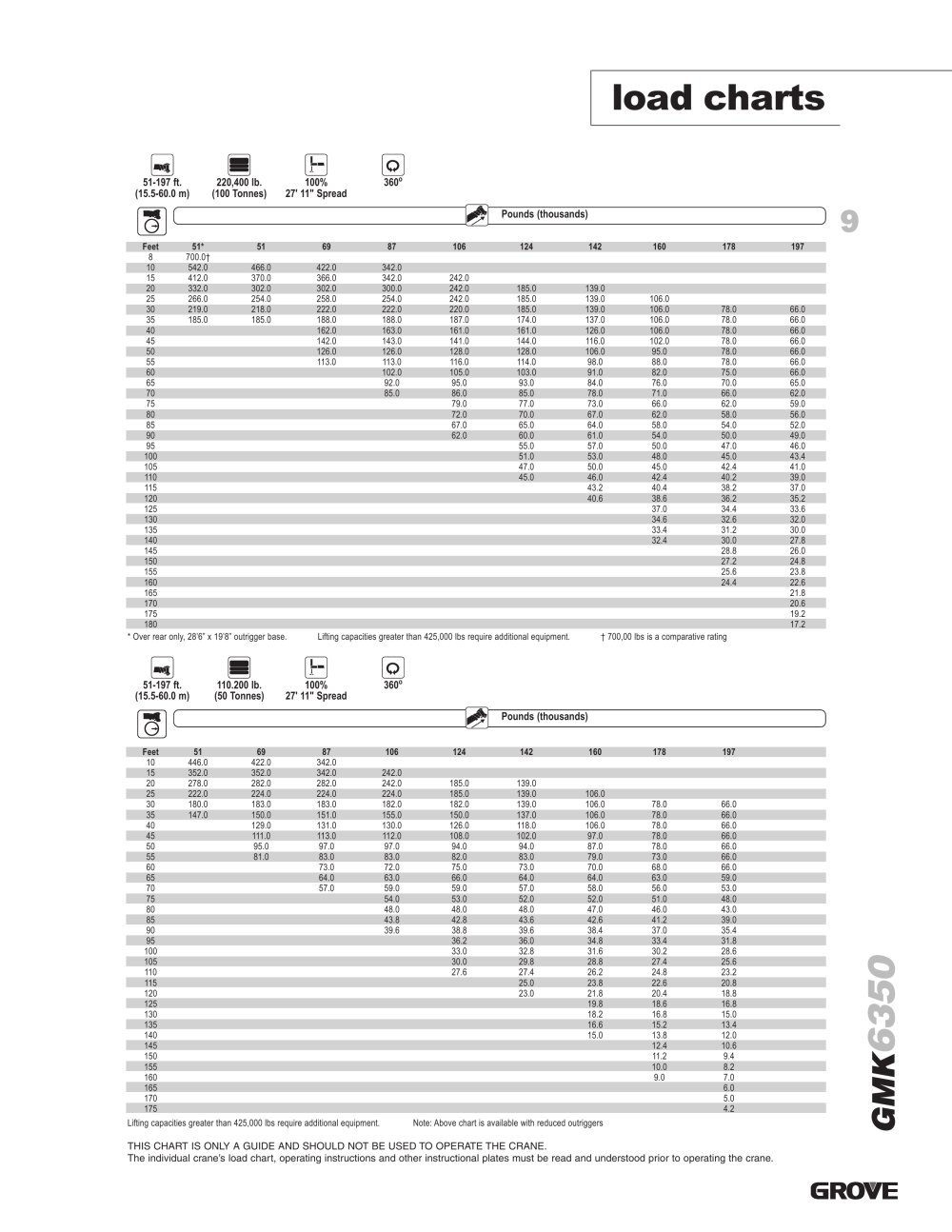

9 GMK6350 load charts THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. Boom Counterweight Outriggers Defined Arc 51-197 ft. (15.5-60.0 m) 220,400 lb. (100 Tonnes) 100% 27' 11" Spread 360o Pounds (thousands) Boom Radius Boom Extension Feet 51* 51 69 87 106 124 142 160 178 197 8 700.0† 10 542.0 466.0 422.0 342.0 15 412.0 370.0 366.0 342.0 242.0 20 332.0 302.0 302.0 300.0 242.0 185.0 139.0 25 266.0 254.0 258.0 254.0 242.0 185.0 139.0 106.0 30 219.0 218.0 222.0 222.0 220.0 185.0 139.0 106.0 78.0 66.0 35 185.0 185.0 188.0 188.0 187.0 174.0 137.0 106.0 78.0 66.0 40 162.0 163.0 161.0 161.0 126.0 106.0 78.0 66.0 45 142.0 143.0 141.0 144.0 116.0 102.0 78.0 66.0 50 126.0 126.0 128.0 128.0 106.0 95.0 78.0 66.0 55 113.0 113.0 116.0 114.0 98.0 88.0 78.0 66.0 60 102.0 105.0 103.0 91.0 82.0 75.0 66.0 65 92.0 95.0 93.0 84.0 76.0 70.0 65.0 70 85.0 86.0 85.0 78.0 71.0 66.0 62.0 75 79.0 77.0 73.0 66.0 62.0 59.0 80 72.0 70.0 67.0 62.0 58.0 56.0 85 67.0 65.0 64.0 58.0 54.0 52.0 90 62.0 60.0 61.0 54.0 50.0 49.0 95 55.0 57.0 50.0 47.0 46.0 100 51.0 53.0 48.0 45.0 43.4 105 47.0 50.0 45.0 42.4 41.0 110 45.0 46.0 42.4 40.2 39.0 115 43.2 40.4 38.2 37.0 120 40.6 38.6 36.2 35.2 125 37.0 34.4 33.6 130 34.6 32.6 32.0 135 33.4 31.2 30.0 140 32.4 30.0 27.8 145 28.8 26.0 150 27.2 24.8 155 25.6 23.8 160 24.4 22.6 165 21.8 170 20.6 175 19.2 180 17.2 Feet 51 69 87 106 124 142 160 178 197 10 446.0 422.0 342.0 15 352.0 352.0 342.0 242.0 20 278.0 282.0 282.0 242.0 185.0 139.0 25 222.0 224.0 224.0 224.0 185.0 139.0 106.0 30 180.0 183.0 183.0 182.0 182.0 139.0 106.0 78.0 66.0 35 147.0 150.0 151.0 155.0 150.0 137.0 106.0 78.0 66.0 40 129.0 131.0 130.0 126.0 118.0 106.0 78.0 66.0 45 111.0 113.0 112.0 108.0 102.0 97.0 78.0 66.0 50 95.0 97.0 97.0 94.0 94.0 87.0 78.0 66.0 55 81.0 83.0 83.0 82.0 83.0 79.0 73.0 66.0 60 73.0 72.0 75.0 73.0 70.0 68.0 66.0 65 64.0 63.0 66.0 64.0 64.0 63.0 59.0 70 57.0 59.0 59.0 57.0 58.0 56.0 53.0 75 54.0 53.0 52.0 52.0 51.0 48.0 80 48.0 48.0 48.0 47.0 46.0 43.0 85 43.8 42.8 43.6 42.6 41.2 39.0 90 39.6 38.8 39.6 38.4 37.0 35.4 95 36.2 36.0 34.8 33.4 31.8 100 33.0 32.8 31.6 30.2 28.6 105 30.0 29.8 28.8 27.4 25.6 110 27.6 27.4 26.2 24.8 23.2 115 25.0 23.8 22.6 20.8 120 23.0 21.8 20.4 18.8 125 19.8 18.6 16.8 130 18.2 16.8 15.0 135 16.6 15.2 13.4 140 15.0 13.8 12.0 145 12.4 10.6 150 11.2 9.4 155 10.0 8.2 160 9.0 7.0 165 6.0 170 5.0 175 4.2 Boom Counterweight Outriggers Defined Arc 51-197 ft. (15.5-60.0 m) 110.200 lb. (50 Tonnes) 100% 27' 11" Spread 360o Pounds (thousands) Boom Radius Boom Extension * Over rear only, 28’6” x 19’8” outrigger base. Lifting capacities greater than 425,000 lbs require additional equipment. † 700,00 lbs is a comparative rating Lifting capacities greater than 425,000 lbs require additional equipment. Note: Above chart is available with reduced outriggers
