5
GMK6350

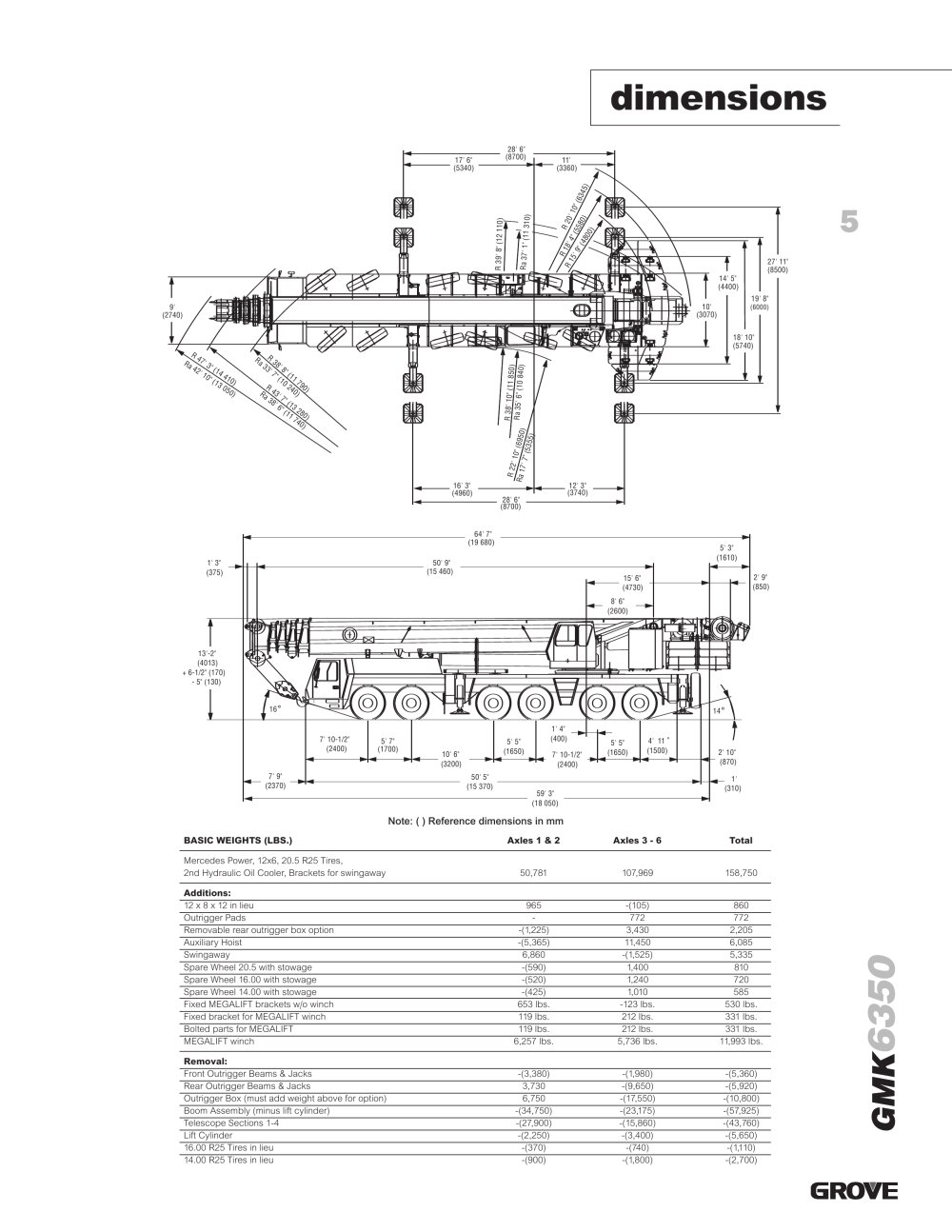

dimensions
R 22' 10" (6950)
Ra 17' 7" (5355)
R 20' 10" (6345)
Ra 35' 6" (10 840)
Ra 33' 7" (10 240)
R 47' 3" (14 410)
Ra 42' 10" (13 050)
R 15' 9" (4800)
16' 3"
(4960)
28' 6"
(8700)
12' 3"
(3740)
19' 8"
(6000)
18' 10"
(5740)
14' 5"
(4400)
10'
(3070)
11'
(3360)
17' 6"
(5340)
28' 6"
(8700)
9'
(2740)
R 38' 8" (11 790)
Ra 38' 6" (11 740)
R 43' 7" (13 280)
R 38' 10" (11 850)
27' 11"
(8500)
R 18' 4" (5580)
R 39' 8" (12 110)
Ra 37' 1" (11 310)
1' 3"
(375)
5' 3"
(1610)
2' 9"
(850)
1'
(310)
7' 10-1/2"
(2400)
5' 7"
(1700)
5' 5"
(1650)
1' 4"
(400) 5' 5"
(1650)
4' 11 "
(1500) 2' 10"
(870)
13'-2"
(4013)
+ 6-1/2" (170)
- 5" (130)
7' 9"
(2370)
50' 5"
(15 370)
59' 3"
(18 050)
10' 6"
(3200)
7' 10-1/2"
(2400)
8' 6"
(2600)
15' 6"
(4730)
50' 9"
(15 460)
64' 7"
(19 680)
16° 14°
BASIC WEIGHTS (LBS.) Axles 1 & 2 Axles 3 - 6 Total
Mercedes Power, 12x6, 20.5 R25 Tires,
2nd Hydraulic Oil Cooler, Brackets for swingaway 50,781 107,969 158,750
Additions:
12 x 8 x 12 in lieu 965 -(105) 860
Outrigger Pads - 772 772
Removable rear outrigger box option -(1,225) 3,430 2,205
Auxiliary Hoist -(5,365) 11,450 6,085
Swingaway 6,860 -(1,525) 5,335
Spare Wheel 20.5 with stowage -(590) 1,400 810
Spare Wheel 16.00 with stowage -(520) 1,240 720
Spare Wheel 14.00 with stowage -(425) 1,010 585
Fixed MEGALIFT brackets w/o winch 653 lbs. -123 lbs. 530 lbs.
Fixed bracket for MEGALIFT winch 119 lbs. 212 lbs. 331 lbs.
Bolted parts for MEGALIFT 119 lbs. 212 lbs. 331 lbs.
MEGALIFT winch 6,257 lbs. 5,736 lbs. 11,993 lbs.
Removal:
Front Outrigger Beams & Jacks -(3,380) -(1,980) -(5,360)
Rear Outrigger Beams & Jacks 3,730 -(9,650) -(5,920)
Outrigger Box (must add weight above for option) 6,750 -(17,550) -(10,800)
Boom Assembly (minus lift cylinder) -(34,750) -(23,175) -(57,925)
Telescope Sections 1-4 -(27,900) -(15,860) -(43,760)
Lift Cylinder -(2,250) -(3,400) -(5,650)
16.00 R25 Tires in lieu -(370) -(740) -(1,110)
14.00 R25 Tires in lieu -(900) -(1,800) -(2,700)
Note: ( ) Reference dimensions in mm
