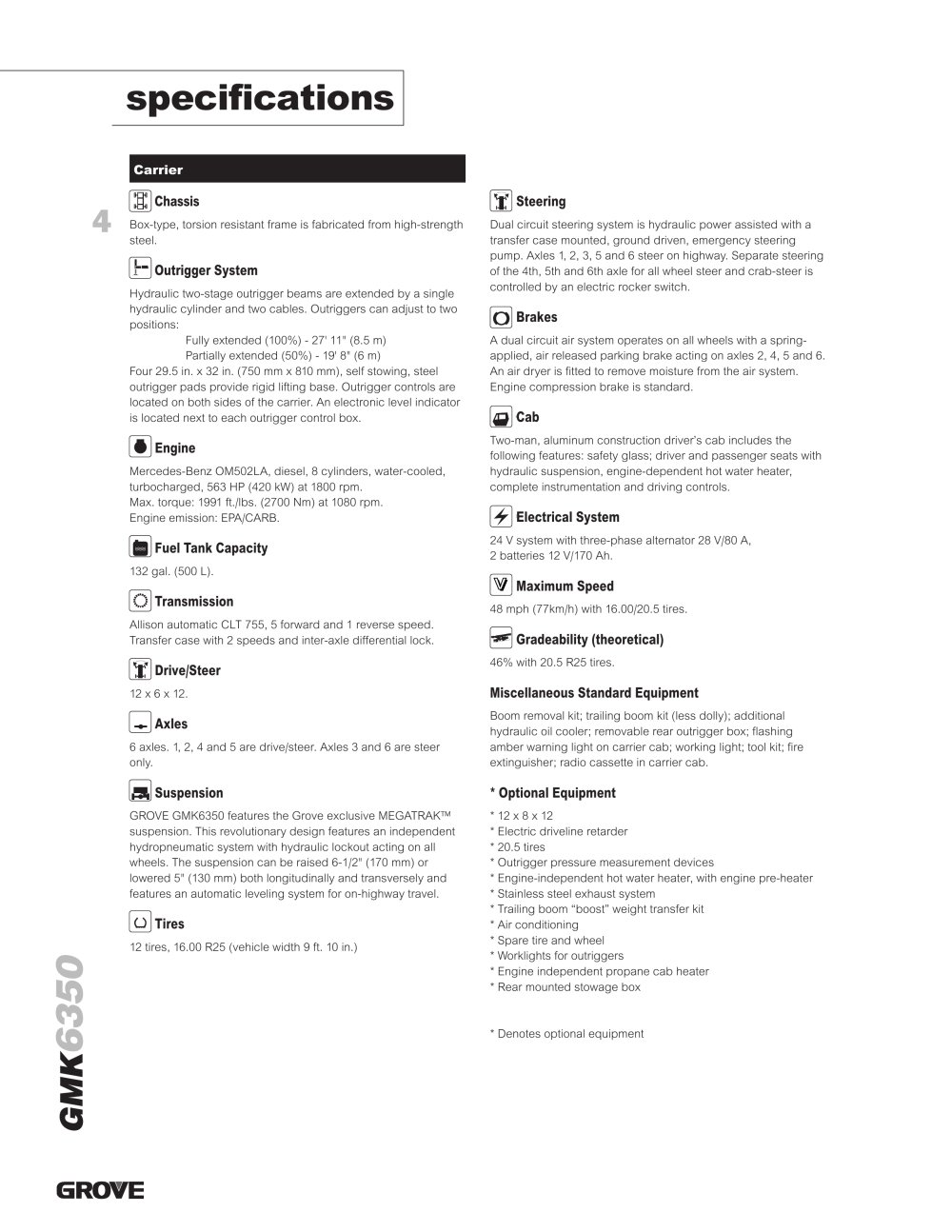

4 GMK6350 specifications Chassis Box-type, torsion resistant frame is fabricated from high-strength steel. Outrigger System Hydraulic two-stage outrigger beams are extended by a single hydraulic cylinder and two cables. Outriggers can adjust to two positions: Fully extended (100%) - 27' 11" (8.5 m) Partially extended (50%) - 19' 8" (6 m) Four 29.5 in. x 32 in. (750 mm x 810 mm), self stowing, steel outrigger pads provide rigid lifting base. Outrigger controls are located on both sides of the carrier. An electronic level indicator is located next to each outrigger control box. Engine Mercedes-Benz OM502LA, diesel, 8 cylinders, water-cooled, turbocharged, 563 HP (420 kW) at 1800 rpm. Max. torque: 1991 ft./lbs. (2700 Nm) at 1080 rpm. Engine emission: EPA/CARB. Fuel Tank Capacity 132 gal. (500 L). Transmission Allison automatic CLT 755, 5 forward and 1 reverse speed. Transfer case with 2 speeds and inter-axle differential lock. Drive/Steer 12 x 6 x 12. Axles 6 axles. 1, 2, 4 and 5 are drive/steer. Axles 3 and 6 are steer only. Suspension GROVE GMK6350 features the Grove exclusive MEGATRAK™ suspension. This revolutionary design features an independent hydropneumatic system with hydraulic lockout acting on all wheels. The suspension can be raised 6-1/2" (170 mm) or lowered 5" (130 mm) both longitudinally and transversely and features an automatic leveling system for on-highway travel. Tires 12 tires, 16.00 R25 (vehicle width 9 ft. 10 in.) Carrier Steering Dual circuit steering system is hydraulic power assisted with a transfer case mounted, ground driven, emergency steering pump. Axles 1, 2, 3, 5 and 6 steer on highway. Separate steering of the 4th, 5th and 6th axle for all wheel steer and crab-steer is controlled by an electric rocker switch. Brakes A dual circuit air system operates on all wheels with a springapplied, air released parking brake acting on axles 2, 4, 5 and 6. An air dryer is fitted to remove moisture from the air system. Engine compression brake is standard. Cab Two-man, aluminum construction driver’s cab includes the following features: safety glass; driver and passenger seats with hydraulic suspension, engine-dependent hot water heater, complete instrumentation and driving controls. Electrical System 24 V system with three-phase alternator 28 V/80 A, 2 batteries 12 V/170 Ah. Maximum Speed 48 mph (77km/h) with 16.00/20.5 tires. Gradeability (theoretical) 46% with 20.5 R25 tires. Miscellaneous Standard Equipment Boom removal kit; trailing boom kit (less dolly); additional hydraulic oil cooler; removable rear outrigger box; flashing amber warning light on carrier cab; working light; tool kit; fire extinguisher; radio cassette in carrier cab. * Optional Equipment * 12 x 8 x 12 * Electric driveline retarder * 20.5 tires * Outrigger pressure measurement devices * Engine-independent hot water heater, with engine pre-heater * Stainless steel exhaust system * Trailing boom “boost” weight transfer kit * Air conditioning * Spare tire and wheel * Worklights for outriggers * Engine independent propane cab heater * Rear mounted stowage box * Denotes optional equipment Frame Outriggers Engine Fuel Tank Capacity Transmission Steering Axles Suspension Tires Steering Brakes Cab Electrical System Speed Grade
