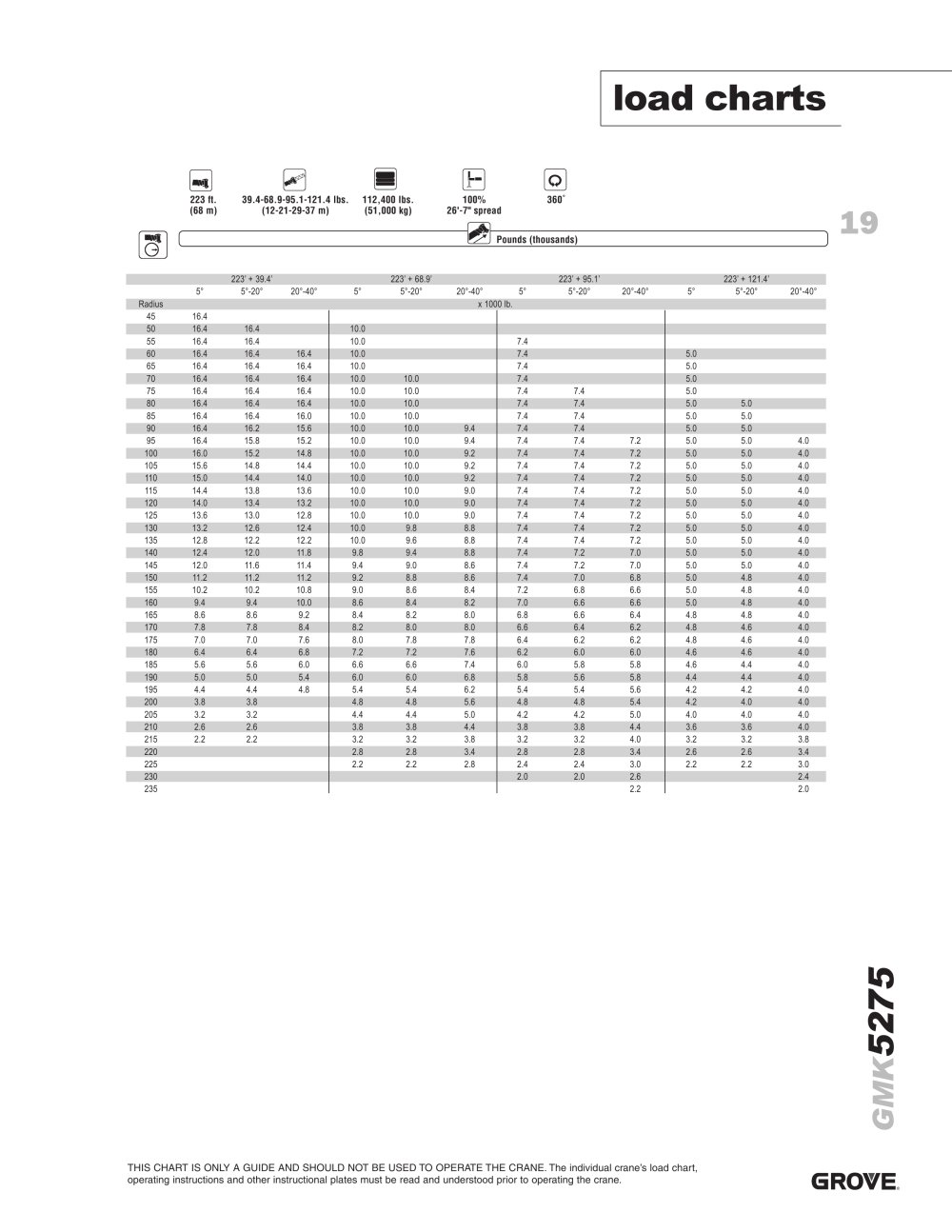

Text version of the page
19
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart,
operating instructions and other instructional plates must be read and understood prior to operating the crane.
GMK5275
Radius
Boom Extension Pounds (thousands)
Boom Outriggers Rotation
223 ft.
(68 m)
39.4-68.9-95.1-121.4 lbs.
(12-21-29-37 m)
100%
26'-7" spread
360°
Extension
112,400 lbs.
(51,000 kg)
Counterweight
223’ + 39.4’ 223’ + 68.9’ 223’ + 95.1’ 223’ + 121.4’
5° 5°-20° 20°-40° 5° 5°-20° 20°-40° 5° 5°-20° 20°-40° 5° 5°-20° 20°-40°
Radius x 1000 lb.
45 16.4
50 16.4 16.4 10.0
55 16.4 16.4 10.0 7.4
60 16.4 16.4 16.4 10.0 7.4 5.0
65 16.4 16.4 16.4 10.0 7.4 5.0
70 16.4 16.4 16.4 10.0 10.0 7.4 5.0
75 16.4 16.4 16.4 10.0 10.0 7.4 7.4 5.0
80 16.4 16.4 16.4 10.0 10.0 7.4 7.4 5.0 5.0
85 16.4 16.4 16.0 10.0 10.0 7.4 7.4 5.0 5.0
90 16.4 16.2 15.6 10.0 10.0 9.4 7.4 7.4 5.0 5.0
95 16.4 15.8 15.2 10.0 10.0 9.4 7.4 7.4 7.2 5.0 5.0 4.0
100 16.0 15.2 14.8 10.0 10.0 9.2 7.4 7.4 7.2 5.0 5.0 4.0
105 15.6 14.8 14.4 10.0 10.0 9.2 7.4 7.4 7.2 5.0 5.0 4.0
110 15.0 14.4 14.0 10.0 10.0 9.2 7.4 7.4 7.2 5.0 5.0 4.0
115 14.4 13.8 13.6 10.0 10.0 9.0 7.4 7.4 7.2 5.0 5.0 4.0
120 14.0 13.4 13.2 10.0 10.0 9.0 7.4 7.4 7.2 5.0 5.0 4.0
125 13.6 13.0 12.8 10.0 10.0 9.0 7.4 7.4 7.2 5.0 5.0 4.0
130 13.2 12.6 12.4 10.0 9.8 8.8 7.4 7.4 7.2 5.0 5.0 4.0
135 12.8 12.2 12.2 10.0 9.6 8.8 7.4 7.4 7.2 5.0 5.0 4.0
140 12.4 12.0 11.8 9.8 9.4 8.8 7.4 7.2 7.0 5.0 5.0 4.0
145 12.0 11.6 11.4 9.4 9.0 8.6 7.4 7.2 7.0 5.0 5.0 4.0
150 11.2 11.2 11.2 9.2 8.8 8.6 7.4 7.0 6.8 5.0 4.8 4.0
155 10.2 10.2 10.8 9.0 8.6 8.4 7.2 6.8 6.6 5.0 4.8 4.0
160 9.4 9.4 10.0 8.6 8.4 8.2 7.0 6.6 6.6 5.0 4.8 4.0
165 8.6 8.6 9.2 8.4 8.2 8.0 6.8 6.6 6.4 4.8 4.8 4.0
170 7.8 7.8 8.4 8.2 8.0 8.0 6.6 6.4 6.2 4.8 4.6 4.0
175 7.0 7.0 7.6 8.0 7.8 7.8 6.4 6.2 6.2 4.8 4.6 4.0
180 6.4 6.4 6.8 7.2 7.2 7.6 6.2 6.0 6.0 4.6 4.6 4.0
185 5.6 5.6 6.0 6.6 6.6 7.4 6.0 5.8 5.8 4.6 4.4 4.0
190 5.0 5.0 5.4 6.0 6.0 6.8 5.8 5.6 5.8 4.4 4.4 4.0
195 4.4 4.4 4.8 5.4 5.4 6.2 5.4 5.4 5.6 4.2 4.2 4.0
200 3.8 3.8 4.8 4.8 5.6 4.8 4.8 5.4 4.2 4.0 4.0
205 3.2 3.2 4.4 4.4 5.0 4.2 4.2 5.0 4.0 4.0 4.0
210 2.6 2.6 3.8 3.8 4.4 3.8 3.8 4.4 3.6 3.6 4.0
215 2.2 2.2 3.2 3.2 3.8 3.2 3.2 4.0 3.2 3.2 3.8
220 2.8 2.8 3.4 2.8 2.8 3.4 2.6 2.6 3.4
225 2.2 2.2 2.8 2.4 2.4 3.0 2.2 2.2 3.0
230 2.0 2.0 2.6 2.4
235 2.2 2.0
load charts
