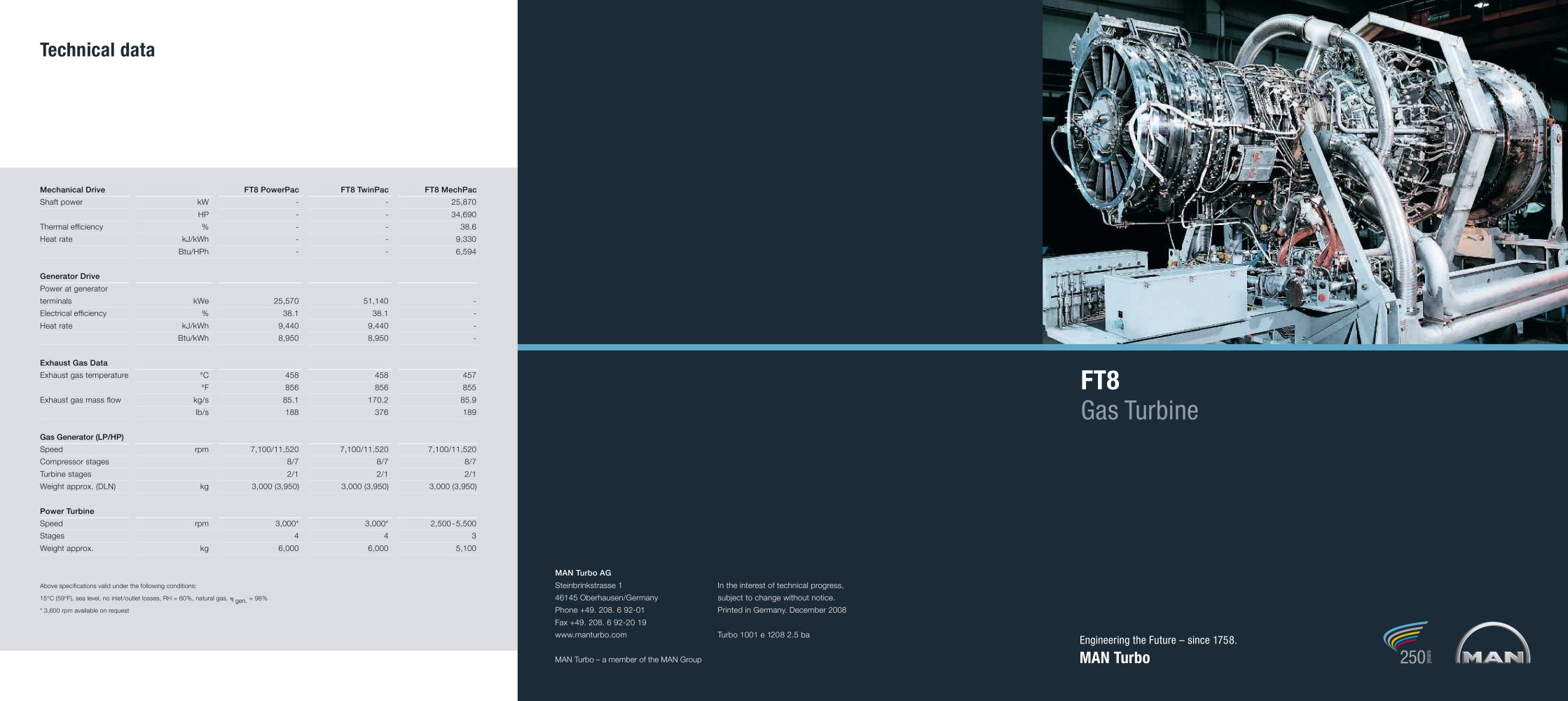

FT8 Gas Turbine MAN Turbo Engineering the Future – since 1758. In the interest of technical progress, subject to change without notice. Printed in Germany. December 2008 Turbo 1001 e 1208 2.5 ba MAN Turbo AG Steinbrinkstrasse 1 46145 Oberhausen/Germany Phone +49. 208. 6 92-01 Fax +49. 208. 6 92-20 19 www.manturbo.com MAN Turbo – a member of the MAN Group Mechanical Drive FT8 PowerPac FT8 TwinPac FT8 MechPac Shaft power kW - - 25,870 HP - - 34,690 Thermal efficiency % - - 38.6 Heat rate kJ/kWh - - 9,330 Btu/HPh - - 6,594 Generator Drive Power at generator terminals kWe 25,570 51,140 - Electrical efficiency % 38.1 38.1 - Heat rate kJ/kWh 9,440 9,440 - Btu/kWh 8,950 8,950 - Exhaust Gas Data Exhaust gas temperature °C 458 458 457 °F 856 856 855 Exhaust gas mass flow kg/s 85.1 170.2 85.9 lb/s 188 376 189 Gas Generator (LP/HP) Speed rpm 7,100/11,520 7,100/11,520 7,100/11,520 Compressor stages 8/7 8/7 8/7 Turbine stages 2/1 2/1 2/1 Weight approx. (DLN) kg 3,000 (3,950) 3,000 (3,950) 3,000 (3,950) Power Turbine Speed rpm 3,000* 3,000* 2,500-5,500 Stages 4 4 3 Weight approx. kg 6,000 6,000 5,100 Above specifications valid under the following conditions: 15°C (59°F), sea level, no inlet/outlet losses, RH = 60%, natural gas,
gen. = 98% * 3,600 rpm available on request Technical data
