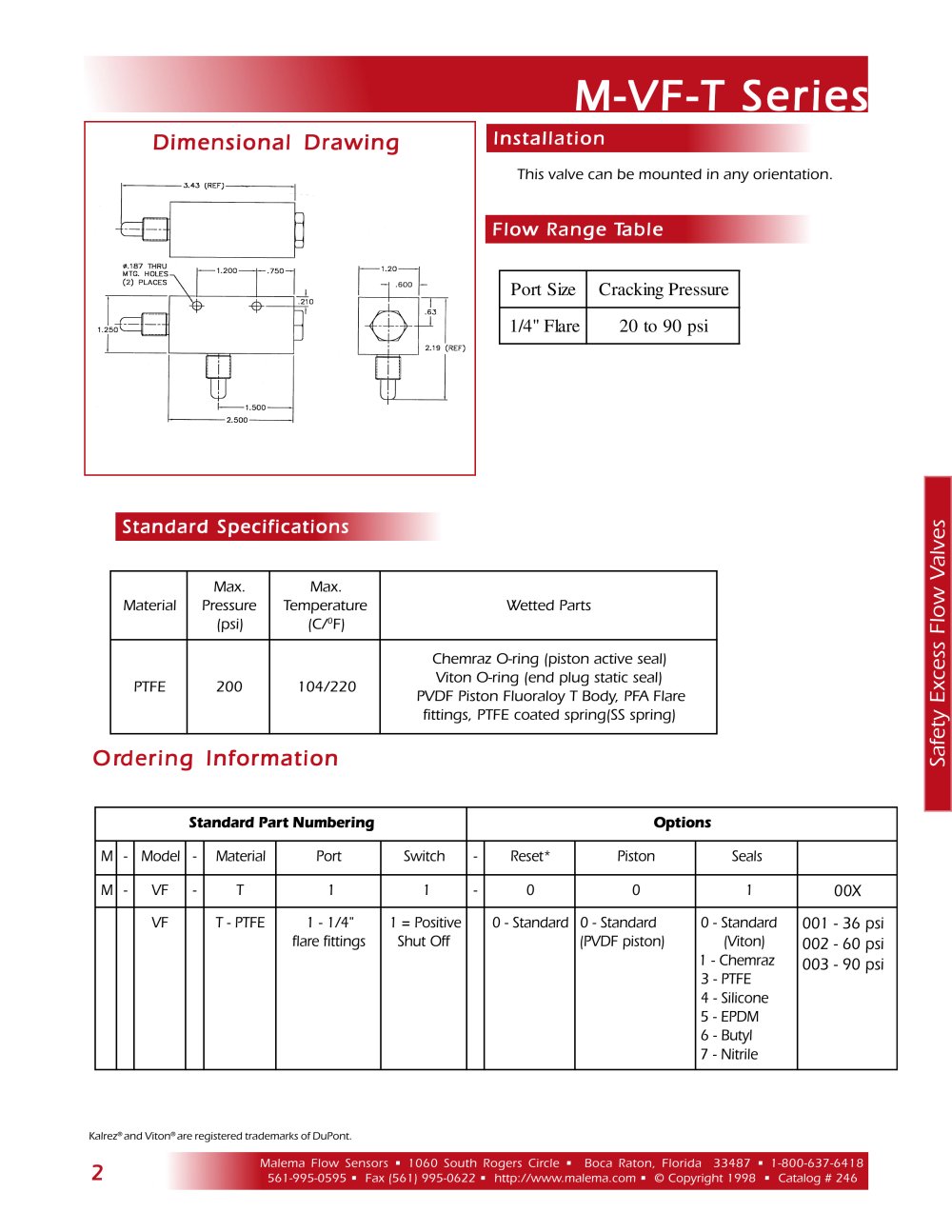

M-VF-T Series

Installation

Dimensional Drawing

This valve can be mounted in any orientation.

Flow Range Table

Standard Specification


Material	Max. Pressure (psi)	Max. Temperature (C/⁰F)	Wetted Parts
PTFE	200	104/220	Chemraz O-ring {piston active seal) Viton O-ring {end plug static seal) PVDF Piston Fluoraloy T Body, PFA Flare fittings, PTFE coated spring{SS spring)

Standard Part Numbering

Options

Model

Material

Port

Switch

Reset*

Piston

Seals

00X

T - PTFE

1 - 1/4" flare fittings

1 = Positive Shut Off

0 - Standard

0 - Standard (PVDF piston)

0 - Standard

(Viton)

1 - Chemraz

3 - PTFE

4 - Silicone

5 - EPDM

6 - Butyl

7 - Nitrile

001 -36 psi

002 - 60 psi

003 - 90 psi

Kalrez® and Viton® are registered trademarks of DuPont.
