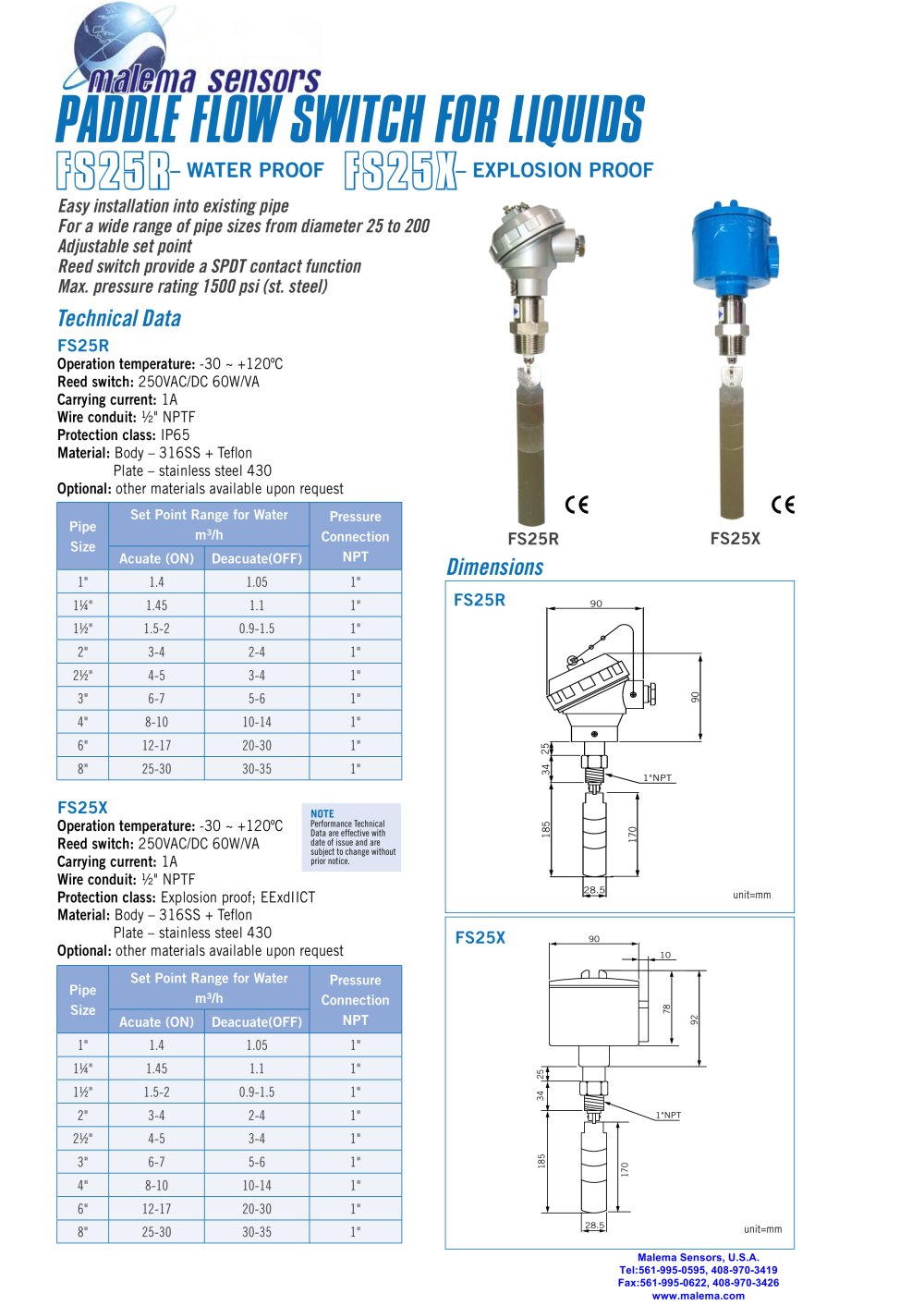

Catalogue - PADDLE FLOW SWITCH FOR LIQUIDS - Malema

See other catalogues for Malema

Thermal mass flow controller, Ultrasonic flow-meter, Relief valve, Flow regulator, Thermal mass flow-meter

Text version of the page

mmma sensors

ptûûu firn mim m mms

EXPLOSION PROOF

Gral ™ ^pR°°HSgl8í

Easy installation into existing pipe

For a wide range of pipe sizes from diameter 25 to 200

Adjustable set point

Reed switch provide a SPDT contact function Max. pressure rating 1500 psi (st. steel)

Technical Data

FS25R

Operation temperature: -30 ~ +120°C Reed switch: 250VAC/DC 60W/VA Carrying current: 1A Wire conduit: y₂" NPTF Protection class: IP65 Material: Body - 316SS + Teflon

Plate - stainless steel 430 Optional: other materials available upon request


	Set Point Range for Water		Pressure
	m³/h		Connection
	Acuate (ON)	Deacuate(OFF)	NPT
1"	1.4	1.05	1"
	1.45	1.1	1"
1/"	1.5-2	0.9-1.5	1"
2"	3-4	2-4	1"
2/"	4-5	3-4	1"
	6-7	5-6	1"
4"	8-10	10-14	1"
6"	12-17	20-30	1"
CO	25-30	30-35	1"

FS25X

FS25R

Dimensions

FS25X

Operation temperature: -30 ~ +120°C

Reed switch: 250VAC/DC 60W/VA

NOTE

Performance Technical Data are effective with date of issue and are subject to change without prior notice.

Carrying current: 1A Wire conduit: y₂" NPTF Protection class: Explosion proof; EExdIICT Material: Body - 316SS + Teflon

Plate - stainless steel 430 Optional: other materials available upon request


	■Wei - rarami ^g


1"	1.4	1.05	1"
	1.45	1.1	1"
1/"	1.5-2	0.9-1.5	1"
2"	3-4	2-4	1"
2/"	4-5	3-4	1"
	6-7	5-6	1"
4"	8-10	10-14	1"
6"	12-17	20-30	1"
CO	25-30	30-35	1"

Malema Sensors, U.S.A. Tel:561-995-0595, 408-970-3419 Fax:561-995-0622, 408-970-3426 www.malema.com
