Mini-Wheel Flowmeter

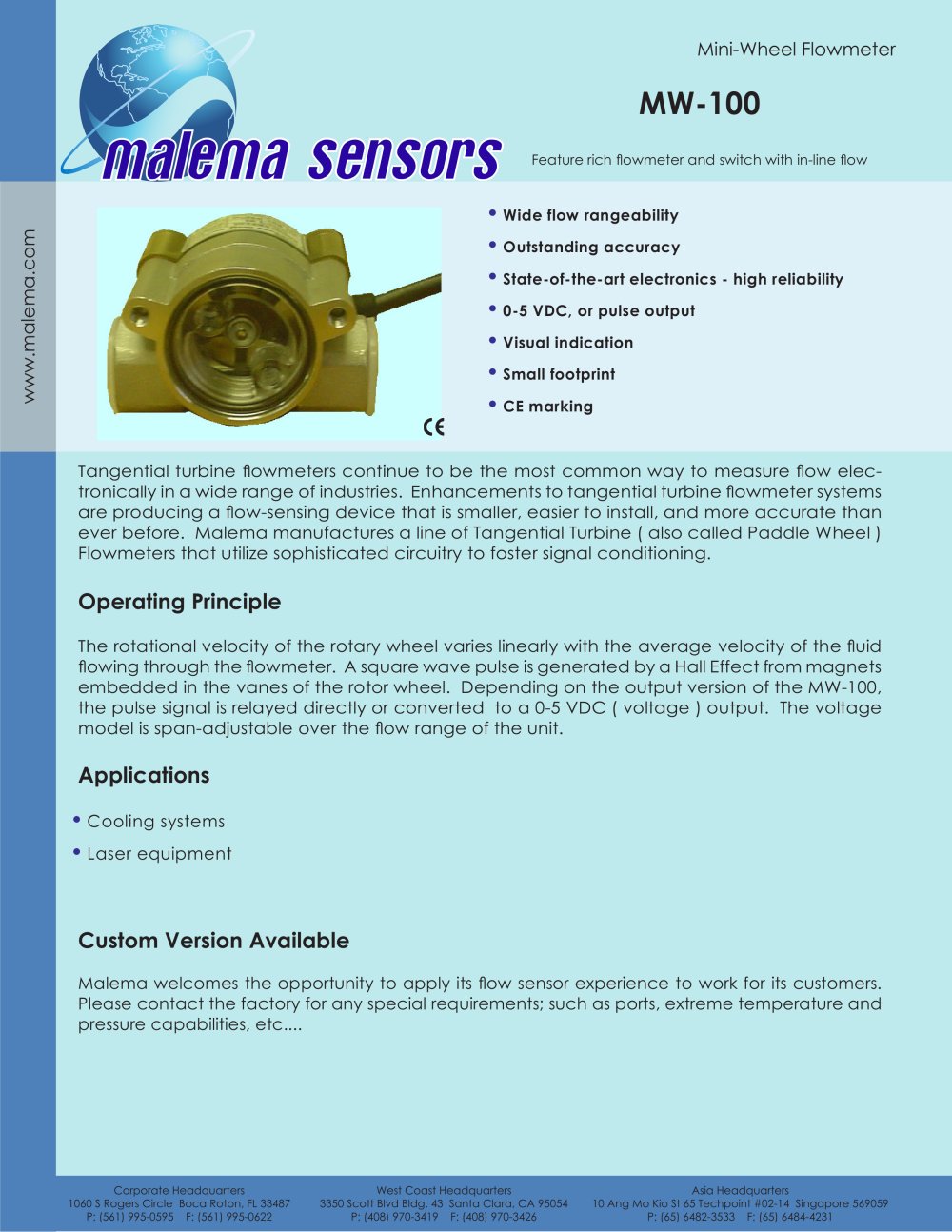

Mini-Wheel Flowmeter with In-line Flow - 13599 MW-100

Feature rich flowmeter and switch with in-line flow •• • • • • •
Wide flow rangeabilityOutstanding accuracy State-of-the-art electronics - high reliability 0-5 VDC, or pulse output Visual indication Small footprint CE marking www.malema.com Tangential turbine flowmeters continue to be the most common way to measure flow elec- tronically in a wide range of industries. Enhancements to tangential turbine flowmeter systems are producing a flow-sensing device that is smaller, easier to install, and more accurate than ever before. Malema manufactures a line of Tangential Turbine ( also called Paddle Wheel ) Flowmeters that utilize sophisticated circuitry to foster signal conditioning. Operating Principle
The rotational velocity of the rotary wheel varies linearly with the average velocity of the fluid flowing through the flowmeter. A square wave pulse is generated by a Hall Effect from magnets embedded in the vanes of the rotor wheel. Depending on the output version of the MW-100, the pulse signal is relayed directly or converted to a 0-5 VDC ( voltage ) output. The voltage model is span-adjustable over the flow range of the unit. Applications ••
Cooling systemsLaser equipment Custom Version Available
Malema welcomes the opportunity to apply its flow sensor experience to work for its customers. Please contact the factory for any special requirements; such as ports, extreme temperature and pressure capabilities, etc.... Corporate Headquarters1060 S Rogers Circle Boca Roton, FL 33487P: (561) 995-0595 F: (561) 995-0622West Coast Headquarters3350 Scott Blvd Bldg. 43 Santa Clara, CA 95054P: (408) 970-3419 F: (408) 970-3426Asia Headquarters10 Ang Mo Kio St 65 Techpoint #02-14 Singapore 569059P: (65) 6482-3533 F: (65) 6484-4231
