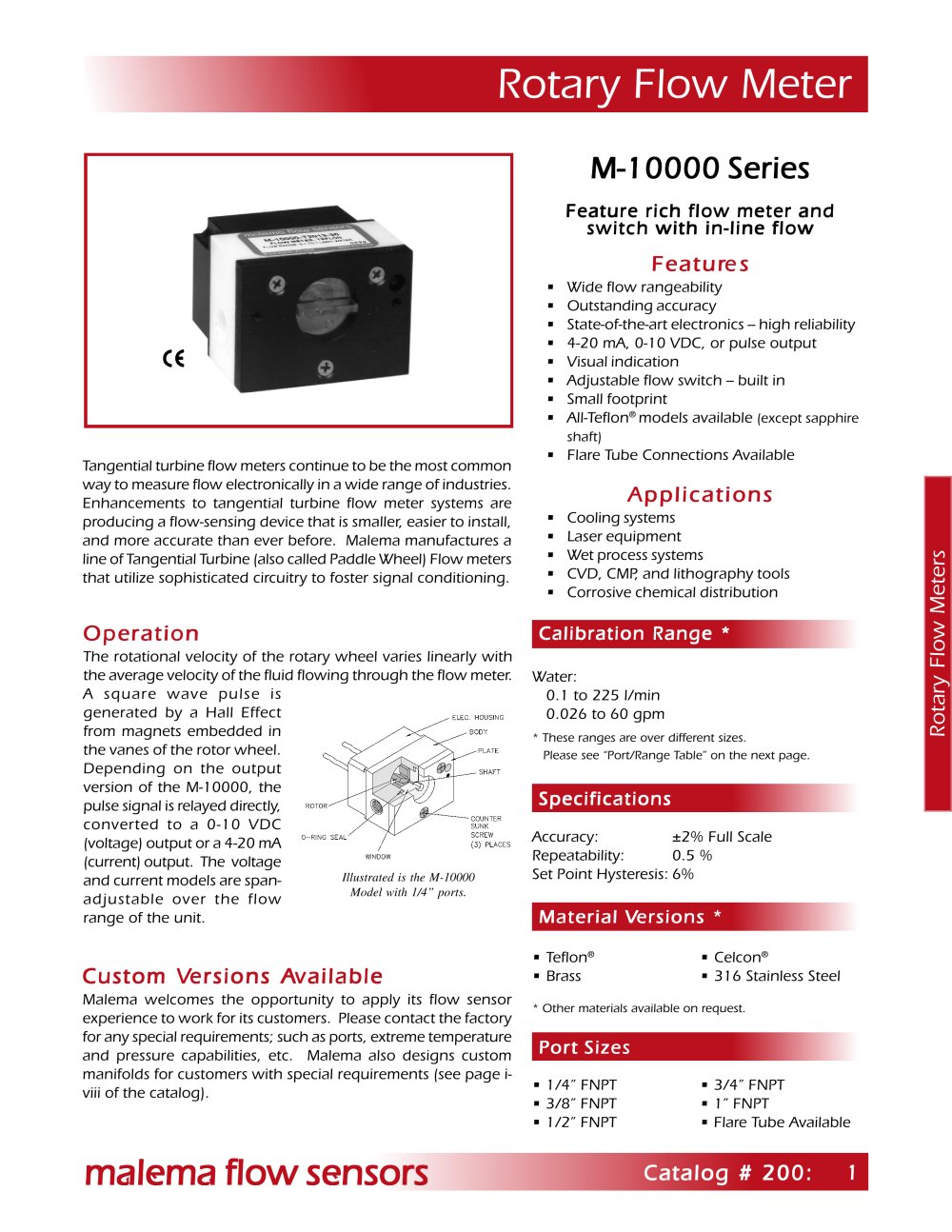

Rotary Flow Meter

M-10000 Series

Feature rich flow meter and switch with in-line flow

Features

• Wide flow rangeability

• Outstanding accuracy

• State-of-the-art electronics high reliability

• 4-20 mA 0-10 VDC, or pulse output

• Visual indication

• Adjustable flow switch - built in

• Small footprint

• All-Teflon® models available (except sapphire shaft)

• Flare Tube Connections Available

Applications

• Cooling systems

• Laser equipment

• Wet process systems

• CVD, CMP, and lithography tools

• Corrosive chemical distribution

Tangential turbine flow meters continue to be the most common way to measure flow electronically in a wide range of industries. Enhancements to tangential turbine flow meter systems are producing a flow-sensing device that is smaller, easier to install, and more accurate than ever before. Malema manufactures a line of Tangential Turbine (also called Paddle Wheel) Flow meters that utilize sophisticated circuitry to foster signal conditioning.

4—

CL >

Operation

The rotational velocity of the rotary wheel varies linearly with the average velocity of the fluid flowing through the flow meter. A square wave pulse is generated by a Hall Effect from magnets embedded in the vanes of the rotor wheel. Depending on the output version of the M-10000, the pulse signal is relayed directly, converted to a 0-10 VDC (voltage) output or a 4-20 mA (current) output. The voltage

Calibration Range *

Water: 0.1 to 225 l/min 0.026 to 60 gpm

* These ranges are over different sizes. Please see "Port/Range Table" on the next page.

4—

Specifications

Accuracy: Repeatability:

±2% Full Scale 0.5 %

Set Point Hysteresis: 6%

Illustrated is the M-10000 Model with 1/4" ports.

and current models are span-

adjustable over the flow range of the unit.

Material Versions *

Teflon® Brass

Celcon®

316 Stainless Steel

■

Custom Versions Available

Malema welcomes the opportunity to apply its flow sensor experience to work for its customers. Please contact the factory for any special requirements; such as ports, extreme temperature and pressure capabilities, etc. Malema also designs custom manifolds for customers with special requirements (see page i-viii of the catalog).

■

* Other materials available on request.

• 3/4" FNPT

• 1" FNPT

• Flare Tube Available

• 1/4" FNPT

• 3/8" FNPT

• 1/2" FNPT

malema flow sensors

atalog # 200: 1
