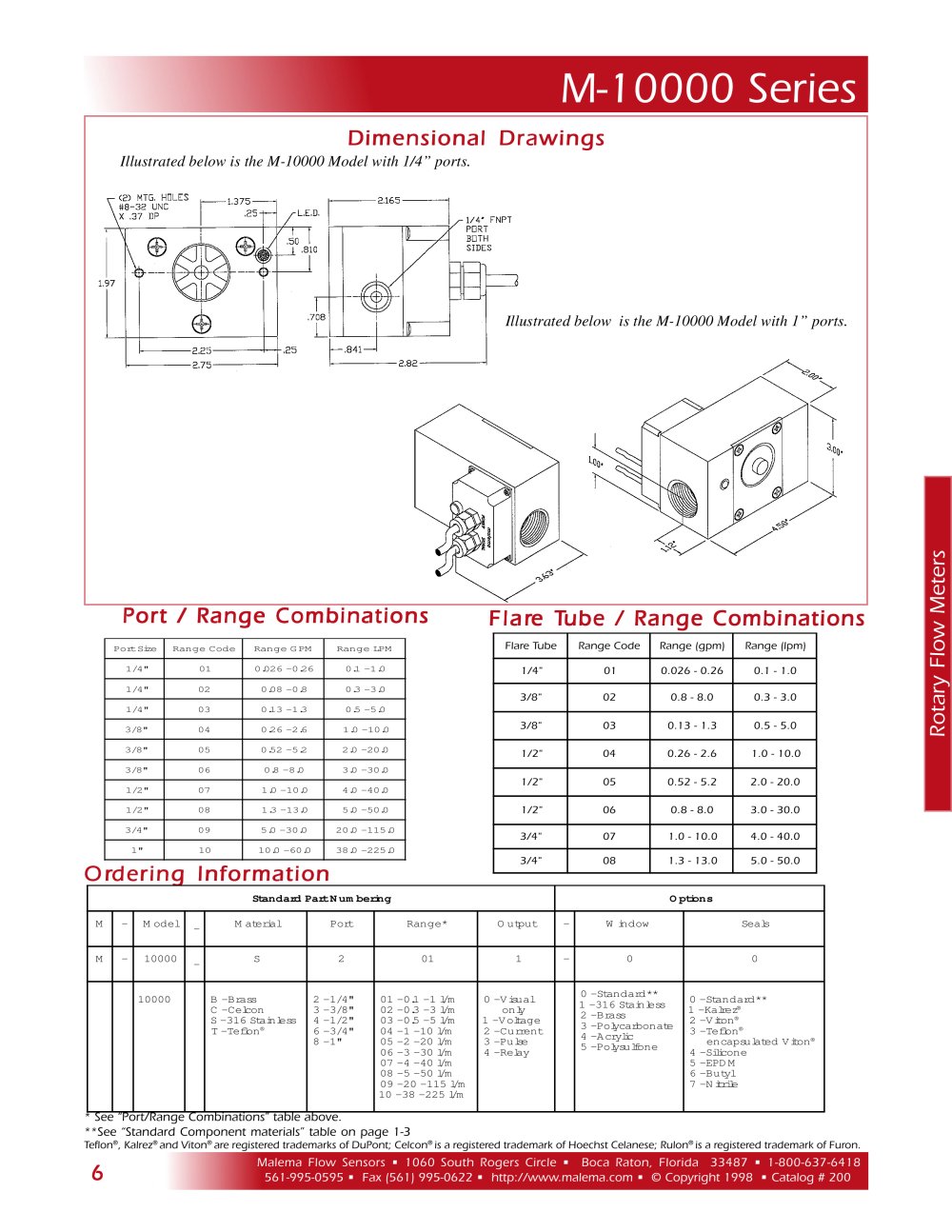

M-10000 Series

Dimensional Drawings

Illustrated below is the M-10000 Model with 1/4" ports.

- <2) MTG, HOLES

#8-32 UNC \X .37 DP

Illustrated below is the M-10000 Model with 1 "ports.

to CD CD

Port / Range Combinations

Flare Tube / Range Combinations


Flare Tube	Range Code	Range (gpm)	Range (Ipm)
1/4"	01	0.026-0.26	0.1 - 1.0
3/8"	02	0.8-8.0	0.3 - 3.0
3/8"	03	0.13- 1.3	0.5 - 5.0
1/2"	04	0.26-2.6	1.0- 10.0
1/2"	05	0.52 - 5.2	2.0-20.0
1/2"	06	0.8-8.0	3.0 - 30.0
3/4"	07	1.0- 10.0	4.0 - 40.0
3/4"	08	1.3 - 13.0	5.0 - 50.0



Port Size	Range Code	Range G PM	Range LPM

1/4"	01	0 .02 6 -026	0 1 -1 0

1/4"	02	0 08 -0 8	0 3 -3 0

1/4"	03	013 -1 3	0 5 -5 0

3/8 "	04	026 -2 6	1 0 -10 0

3/8 "	05	0 52 -5 2	2 0 -20 0

3/8"	06	0 8 -8 .0	3 0 -30 0

1/2"	07	10 -10 0	4 0 -40 0

1/2"	08	13 -13 0	5 0 -50 0

3/4"	09	5 0 -300	20 0 -115 0

1"	10	10 0 -60 0	38 0 -225 0

rdering Information

Standard PartNum bering

O ptOns

M odel

M aterial

Port

Range*

O utput

W indow

Seals

10000

B -Brass

C -Celcon

S -316 Stainless

T -Teflon*

2 -1/4"

3 -3/8"

4 -1/2" 6 -3/4"

8-1"

01-0 1 -1 l/m

02 -0 3 -3 ll/m

03 -0 5 -5 ll/m

04 -1 -10 ll/m

05 -2 -20 l/m

06 -3 -30 l/m

07 -4 -40 l/m

08 -5 -50 ll/m

09 -20 -115 l/m

10 -38 -225 l/m

0 -Visual

only

1 -Voltage

2 -Current

3 -Pulse

4 -Relay

0 -Standard**

1 -316 Stainless

2 -Brass

3 - Polycarbonate

4 -Acrylic

5 -Polysulfone

0 -Standard**

1 -Kalez*

2 -Viton*

3 -Teflon*

encapsulated Viton^*

4 -Silicone

5 -EPDM

6 -Butyl

7 -Nitrile

* See "Port/Kange" Combinations" table above. **See "Standard Component materials" table on page 1-3

Teflon®, Kalrez® and Viton® are registered trademarks of DuPont; Celcon® is a registered trademark of Hoechst Celanese; Kulon® is a registered trademark of Furon.
