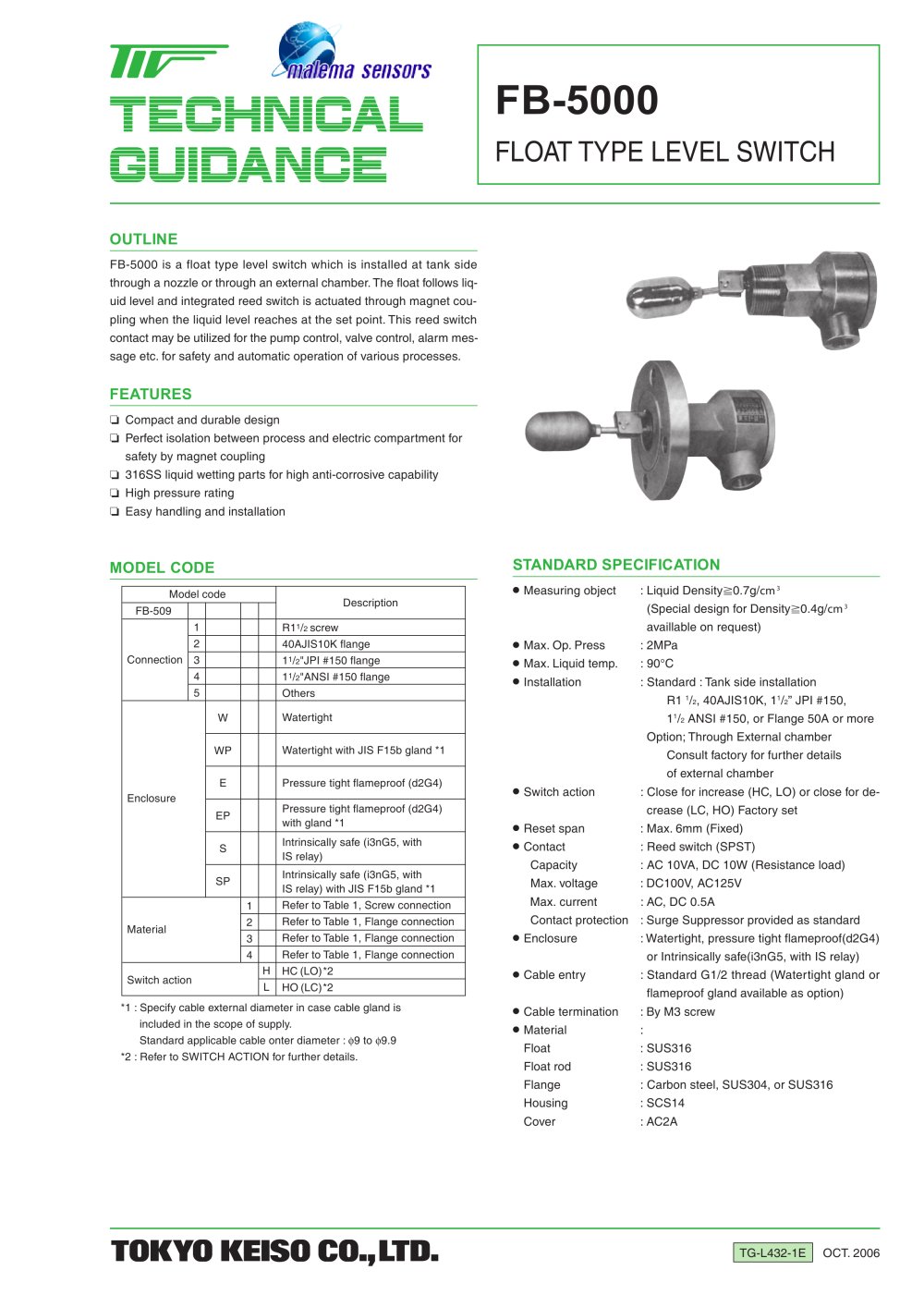

FB-5000

FLOAT TYPE LEVEL SWITCH

OUTLINE

FB-5000 is a float type level switch which is installed at tank side through a nozzle or through an external chamber. The float follows liquid level and integrated reed switch is actuated through magnet coupling when the liquid level reaches at the set point. This reed switch contact may be utilized for the pump control, valve control, alarm message etc. for safety and automatic operation of various processes.

FEATURES

□ Compact and durable design

□ Perfect isolation between process and electric compartment for safety by magnet coupling

□ 316SS liquid wetting parts for high anti-corrosive capability

□ High pressure rating

□ Easy handling and installation

STANDARD SPECIFICATION

MODEL CODE


Model code					Description
FB-509					Description
Connection	1				R1¹/2 screw
	2				40AJIS10K flange
	3				1 i/2"JPI #150 flange
	4				11/2"ANSI #150 flange
	5				Others
Enclosure		W			Watertight
		WP			Watertight with JIS F15b gland *1
		E			Pressure tight flameproof (d2G4)
		EP			Pressure tight flameproof (d2G4) with gland *1
		S			Intrinsically safe (i3nG5, with IS relay)
		SP			Intrinsically safe (i3nG5, with IS relay) with JIS F15b gland *1
Material			1		Refer to Table 1, Screw connection
			2		Refer to Table 1, Flange connection
			3		Refer to Table 1, Flange connection
			4		Refer to Table 1, Flange connection
Switch action				H	HC (LO) *2
Switch action				T~	HO (LC) *2

: Liquid Densityg0.7g/cm³

(Special design for Density&0.4g/cm³

availlable on request) : 2MPa :90°C

: Standard : Tank side installation

R1 ¹/2, 40AJIS10K, 1¹/2" JPI #150, 1¹/2 ANSI #150, or Flange 50A or more Option; Through External chamber Consult factory for further details of external chamber

: Close for increase (HC, LO) or close for decrease (LC, HO) Factory set

: Max. 6mm (Fixed)

: Reed switch (SPST)

: AC 10VA, DC 10W (Resistance load)

: DC100V, AC125V

: AC, DC 0.5A

: Surge Suppressor provided as standard : Watertight, pressure tight flameproof(d2G4)

or Intrinsically safe(i3nG5, with IS relay) : Standard G1/2 thread (Watertight gland or

flameproof gland available as option) : By M3 screw

• Measuring object

Max. Op. Press Max. Liquid temp.

• Switch action

• Reset span

• Contact

Capacity Max. voltage Max. current Contact protection

• Enclosure

• Cable entry

• Cable termination

• Material

Float rod Flange Housing Cover

*1 : Specify cable external diameter in case cable gland is

included in the scope of supply.

Standard applicable cable onter diameter : >>9 to >>9.9 *2 : Refer to SWITCH ACTION for further details.

: SUS316

: Carbon steel, SUS304, or SUS316 :SCS14 : AC2A

TOKYO KEISO CO., LTD.

TG-L432-1E I OCT. 2006
