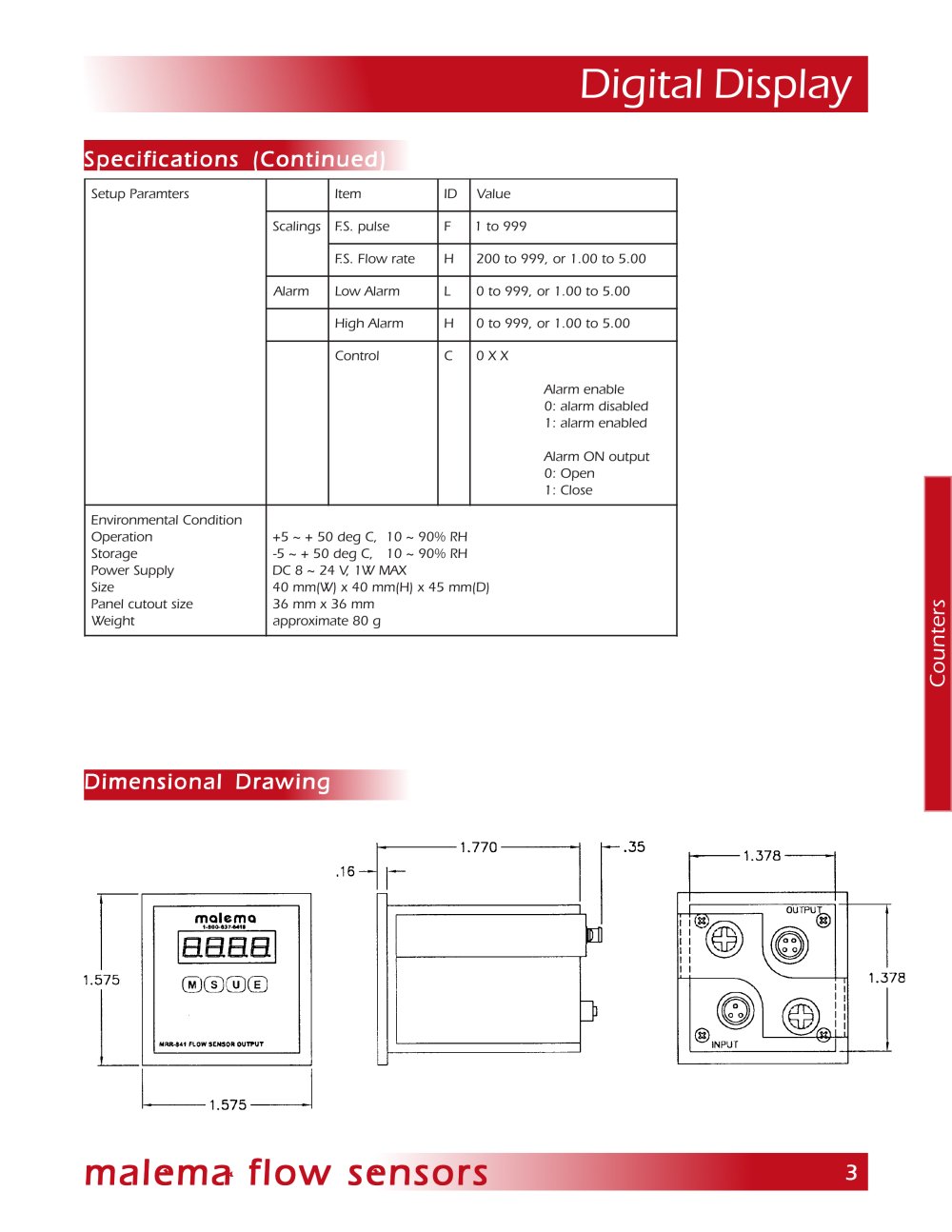

Digital Display


	Setup Paramters		Item	ID	Value
		Scalings	F.S. pulse	F	1 to 999
			F.S. Flow rate	H	200 to 999, or 1.00 to 5.00
		Alarm	Low Alarm	L	0 to 999, or 1.00 to 5.00
			High Alarm	H	0 to 999, or 1.00 to 5.00
			Control	C	0XX Alarm enable 0: alarm disabled 1: alarm enabled Alarm ON output 0: Open 1: Close
	Environmental Condition Operation Storage Power Supply Size Panel cutout size Weight	+5~ + 50 deg C, 10 ~ 90% RH -5~ + 50 deg C, 10 ~ 90% RH DC 8 ~ 24 V, 1WMAX 40 mm(W) x 40 mm(H) x 45 mm(D) 36 mm x 36 mm approximate 80 g

I—

CD +->

Z3

o

Dimensional Drawin

malema flow sensors
