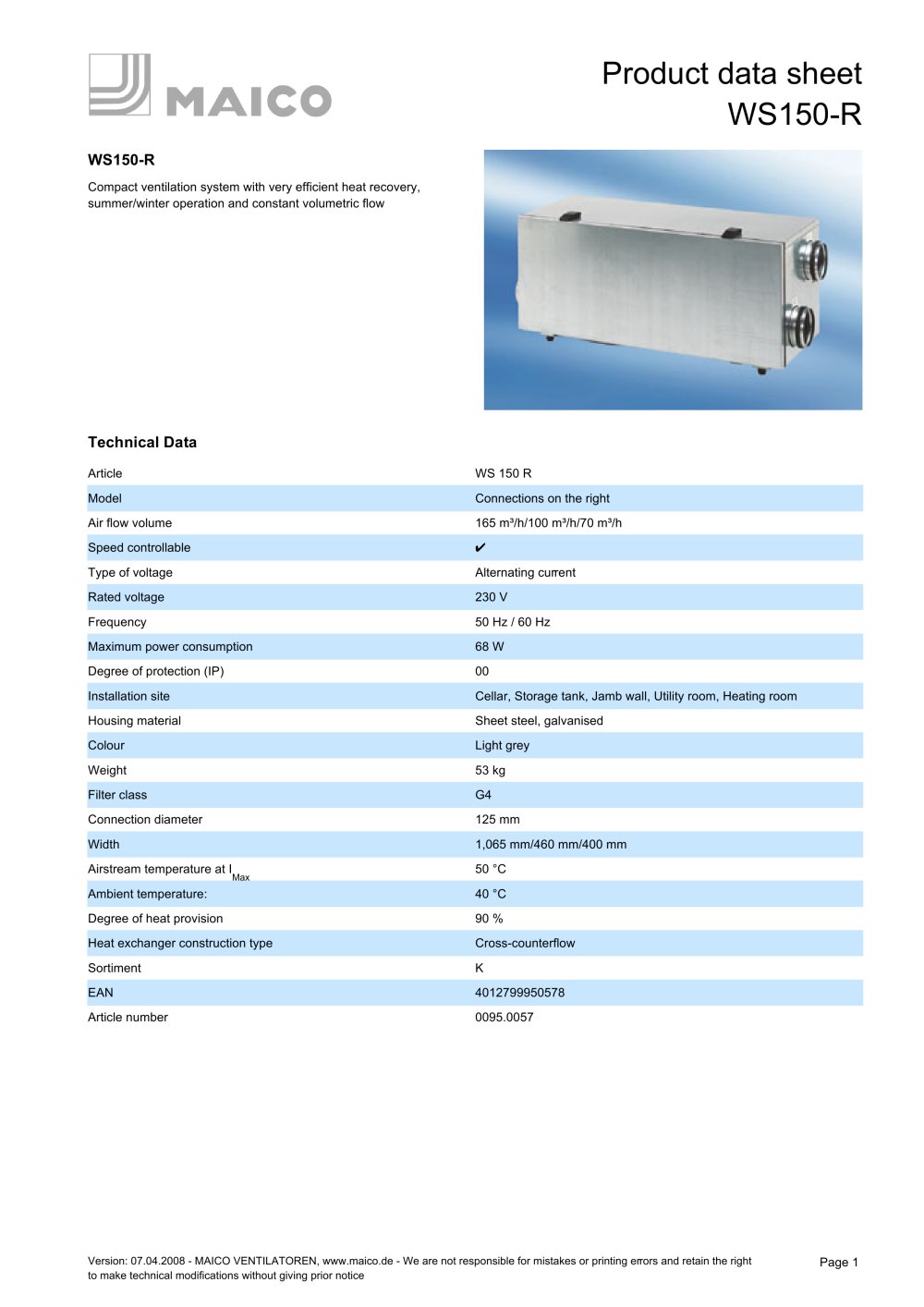

Product data sheet WS150-R

WS150-R

Compact ventilation system with very efficient heat recovery, summer/winter operation and constant volumetric flow

Technical Data


	Article	WS 150 R
	Model	Connections on the right
	Airflow volume	165 m³/h/100 m³/h/70 m³/h
	Speed controllable	/
	Type of voltage	Alternating current
	Rated voltage	230 V
	Frequency	50 Hz / 60 Hz
	Maximum power consumption	68 W
	Degree of protection (IP)	00
	Installation site	Cellar, Storage tank, Jamb wall, Utility room, Heating room
	Housingmaterial	Sheet steel, galvanised
	Colour	Light grey
	Weight	53 kg
	Filter class	G4
	Connection diameter	125 mm
	Width	1,065 mm/460 mm/400 mm
	Airstream temperature at I ^r Max	50 °C
	Ambient temperature:	40 °C
	Degree of heat provision	90 %
	Heat exchanger construction type	Cross-counterflow
	Sortiment	K
	EAN	4012799950578

Article number

0095.0057

Version: 07.04.2008 - MAICO VENTILATOREN, www.maico.de - We are not responsible for mistakes or printingerrors and retain the right to make technical modifications without giving prior notice

Page 1
