Technical Data


	Article	EZQ 20/4 E
	Model	Square wall plate
	Airflow volume	475 m³/h
	Rotating speed	1,380 1/min
	Speed controllable
	Type of voltage	Alternating current
	Rated voltage	230 V
	Frequency	50 Hz
	Nominal output	35 W
	1 nom	0.25 A
	i Max	0.25 A
	Degree of protection (IP)	54
	insulation class	B
	Type of installation	Surface-mounted
	installation position	horizontal, vertical
	Material	Sheet steel, galvanised
	Weight	4.6 kg
	Nominal size	200 mm
	Airstream temperature at nominal current	60 °C
	Airstream temperature at i Max	60 °C
	Sortiment	C
	EAN	4012799834847
	Article number	0083.0484
	Aggregate level L ,S5	57 dB(A)
	(housing and free inlet sound pressure level )
	Aggregate level L ,S5	57 dB(A)
	(housing and free outlet sound pressure level )

Version: 07.04.2008 - MAICO VENTILATOREN, www.maico.de - We are not responsible for mistakes or printing errors and retain the right to make technical modifications without giving prior notice

Page 1

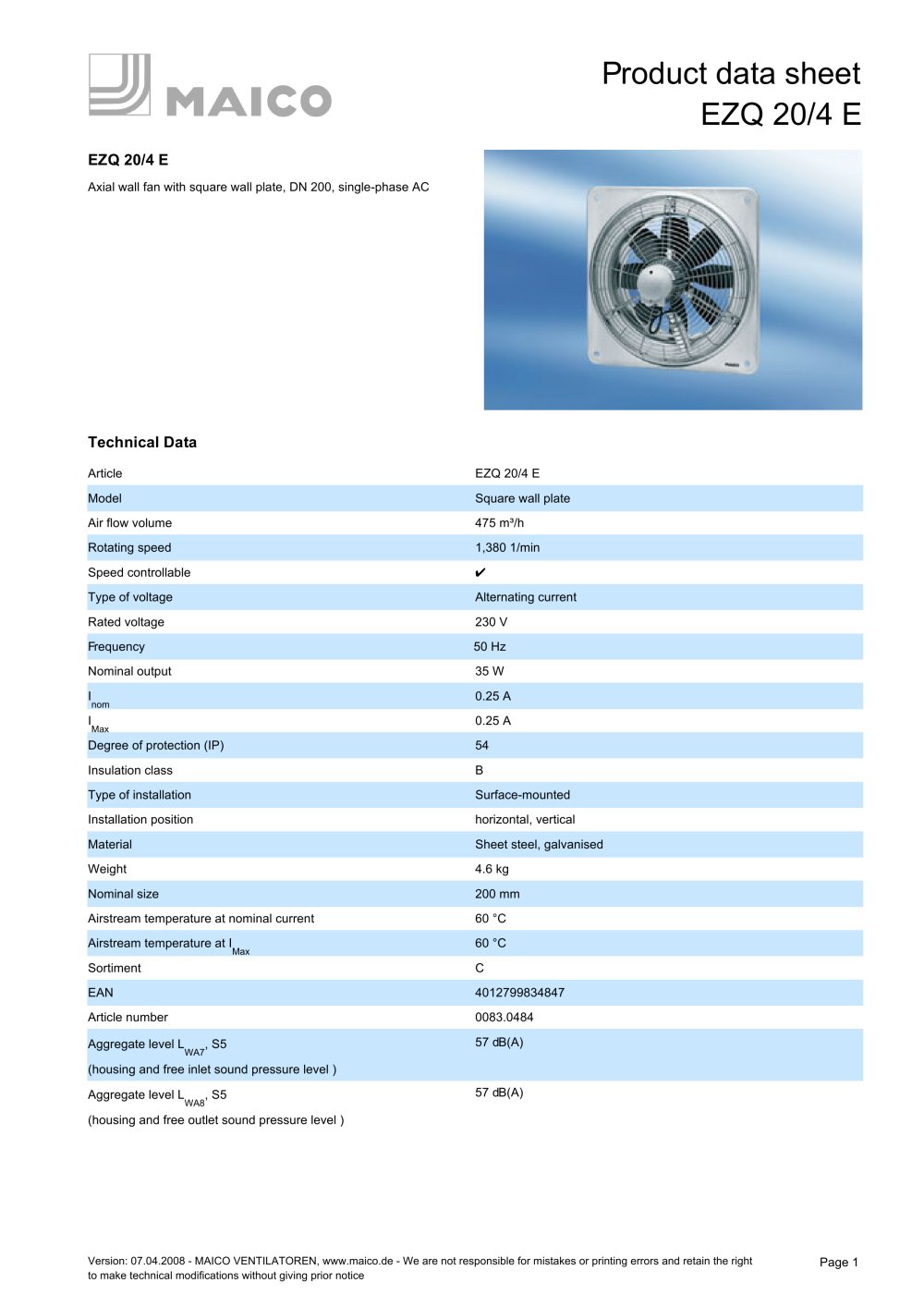

EZQ 20/4 E - MAICO - #1
