33 MAICO

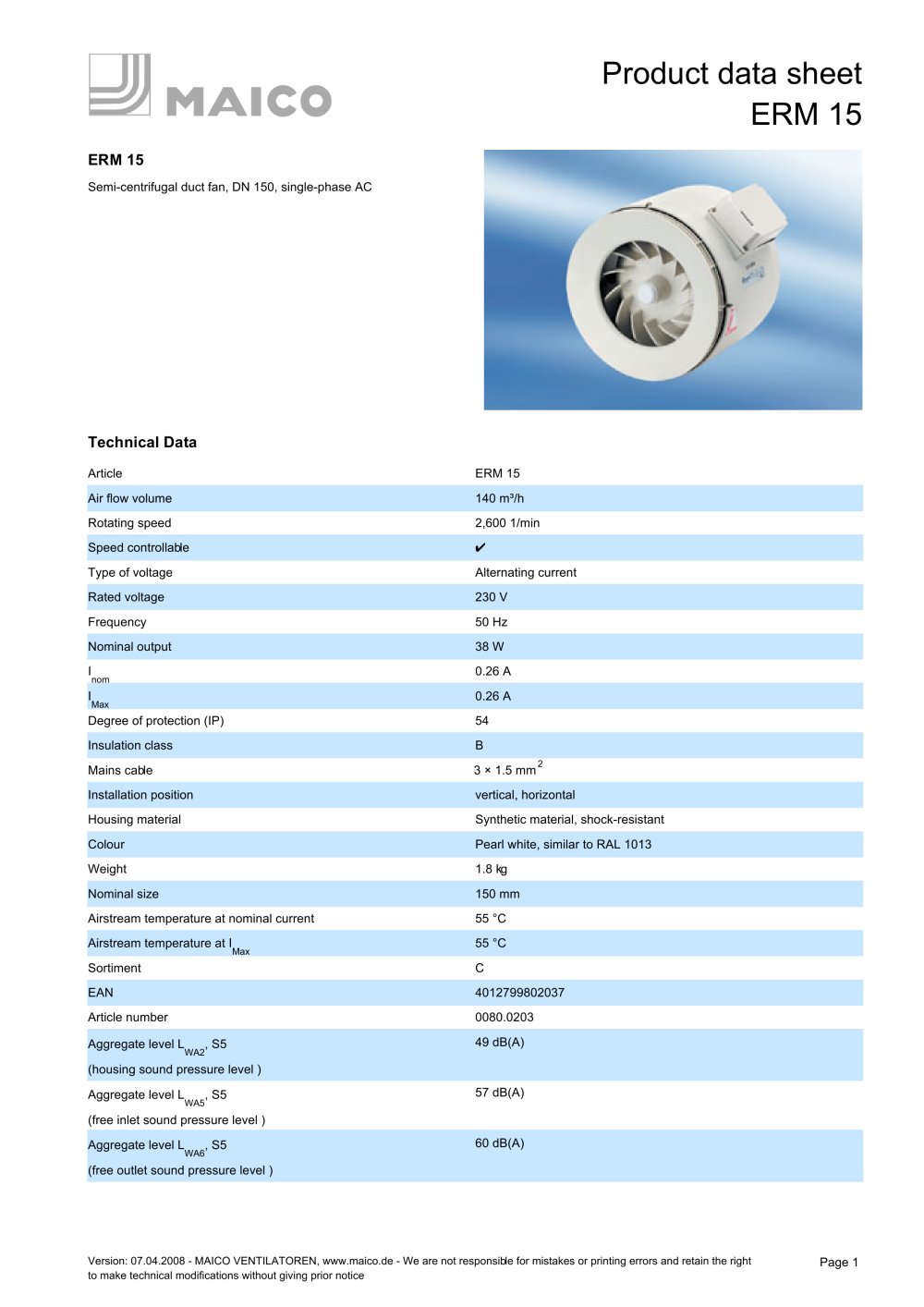

Product data sheet ERM 15

ERM 15

Semi-centrifugal duct fan, DN 150, single-phase AC

Technical Data


	Article	ERM 15
	Airflowvolume	140 m³/h
	Rotating speed	2,600 1/min
	Speed controllable
	Type of voltage	Alternating current
	Rated voltage	230 V
	Frequency	50 Hz
	Nominal output	38 W
	I nom	0.26 A
	I Max	0.26 A
	Degree of protection (IP)	54
	Insulation class	B
	Mains cabe	3 x 1.5 mm²
	Installation position	vertical, horizontal
	Housing material	Synthetic material, shock-resistant
	Colour	Pearl white, similar to RAL 1013
	Weight	1.8 kg
	Nominal size	150 mm
	Airstream temperature at nominal current	55 °C
	Airstream temperature at I Max	55 °C
	Sortiment	C
	EAN	4012799802037
	Article number	0080.0203
	Aggregate level L ,S5	49 dB(A)
	(housing sound pressure level )
	Aggregate level L ,S5	57 dB(A)
	(free inlet sound pressure level )
	Aggregate level L ,S5	60 dB(A)
	(free outlet sound pressure level )

Version: 07.04.2008 - MAICO VENTILATOREN, www.maico.de - We are not responsible for mistakes or printing errors and retain the right to make technical modifications without giving prior notice

Page 1
