33 MAICO

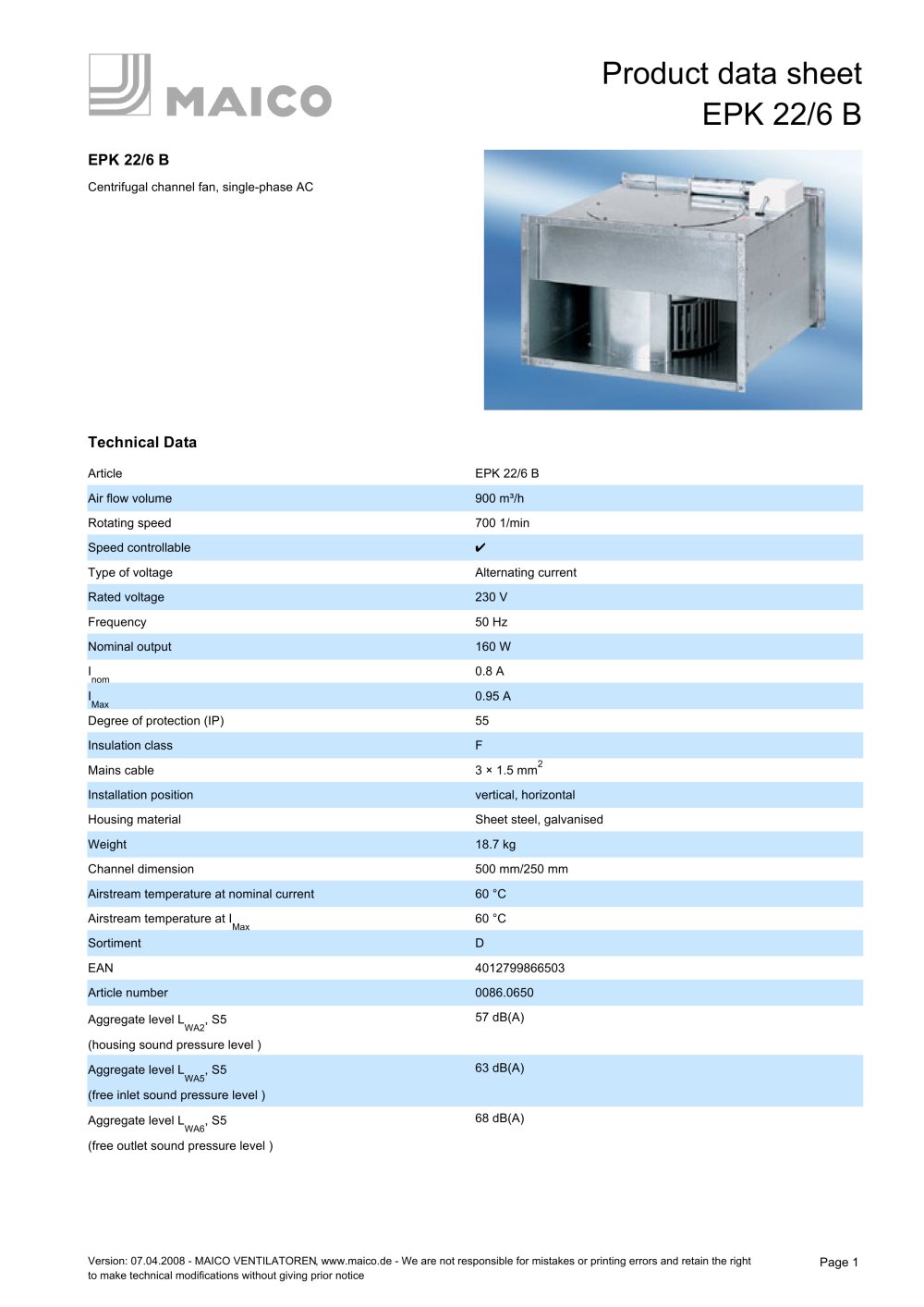

Product data sheet EPK 22/6 B

EPK 22/6 B

Centrifugal channel fan, single-phase AC

Technical Data


	Article	EPK 22/6 B
	Airflow volume	900 m³/h
	Rotating speed	700 1/min
	Speed controllable
	Type of voltage	Alternating current
	Rated voltage	230 V
	Frequency	50 Hz
	Nominal output	160W
	1 nom	0.8 A
	i Max	0.95 A
	Degree of protection (IP)	55
	insulation class	F
	Mains cable	3 x 1.5 mm²
	installation position	vertical, horizontal
	Housing material	Sheet steel, galvanised
	Weight	18.7 kg
	Channel dimension	500mm/250mm
	Airstream temperature at nominal current	60°C
	Airstream temperature at i Max	60°C
	Sortiment	D
	EAN	4012799866503
	Article number	0086.0650
	Aggregate level L ,S5	57 dB(A)
	(housing sound pressure level )
	Aggregate level L ,S5	63 dB(A)
	(free inlet sound pressure level )
	Aggregate level L ,S5	68 dB(A)
	(free outlet sound pressure level )

Version: 07.04.2008 - MAICO VENTILATOREN, www.maico.de - We are not responsible for mistakes or printing errors and retain the right to make technical modifications without giving prior notice

Page 1
