Product data sheet ECA piano Standard

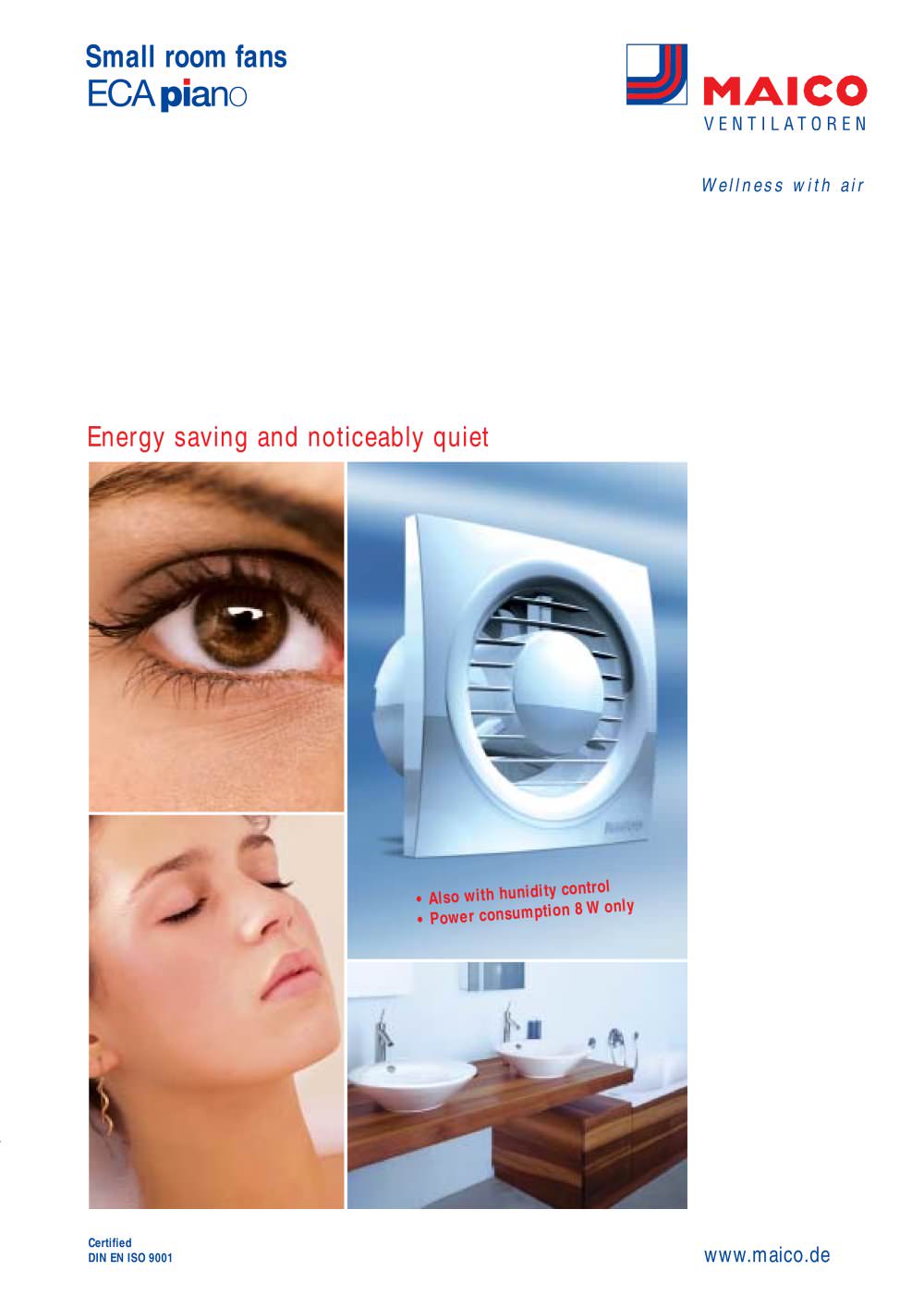

ECA piano Standard

Particularly quiet small room fan - Standard model

Technical Data

Article

ECA piano Standard


	Model	Standard model
	Airflow volume	80 m³/h
	Type of voltage	Alternating current
	Rated voltage	230 V
	Frequency	50 Hz / 60 Hz
	Nominal output	8W
	1 Max	0.06 A
	Degree of protection (IP)	X4
	Mains cable	3 x 1.5 mm²
	Type of installation	Surface-mounted
	Installation position	any
	Material	Synthetic material
	Colour	Traffic white, similar to RAL 9016
	Nominal size	100 mm
	Airstream temperature at I Max	40 °C
	Sound pressure level	26 dB(A)
	Sortiment	A
	EAN	4012799840800
	Article number	0084.0080

Version: 07.04.2008 - MAICO VENTILATOREN, www.maico.de - We are not responsible for mistakes or printing errors and retain the right to make technical modifications without giving prior notice
