I

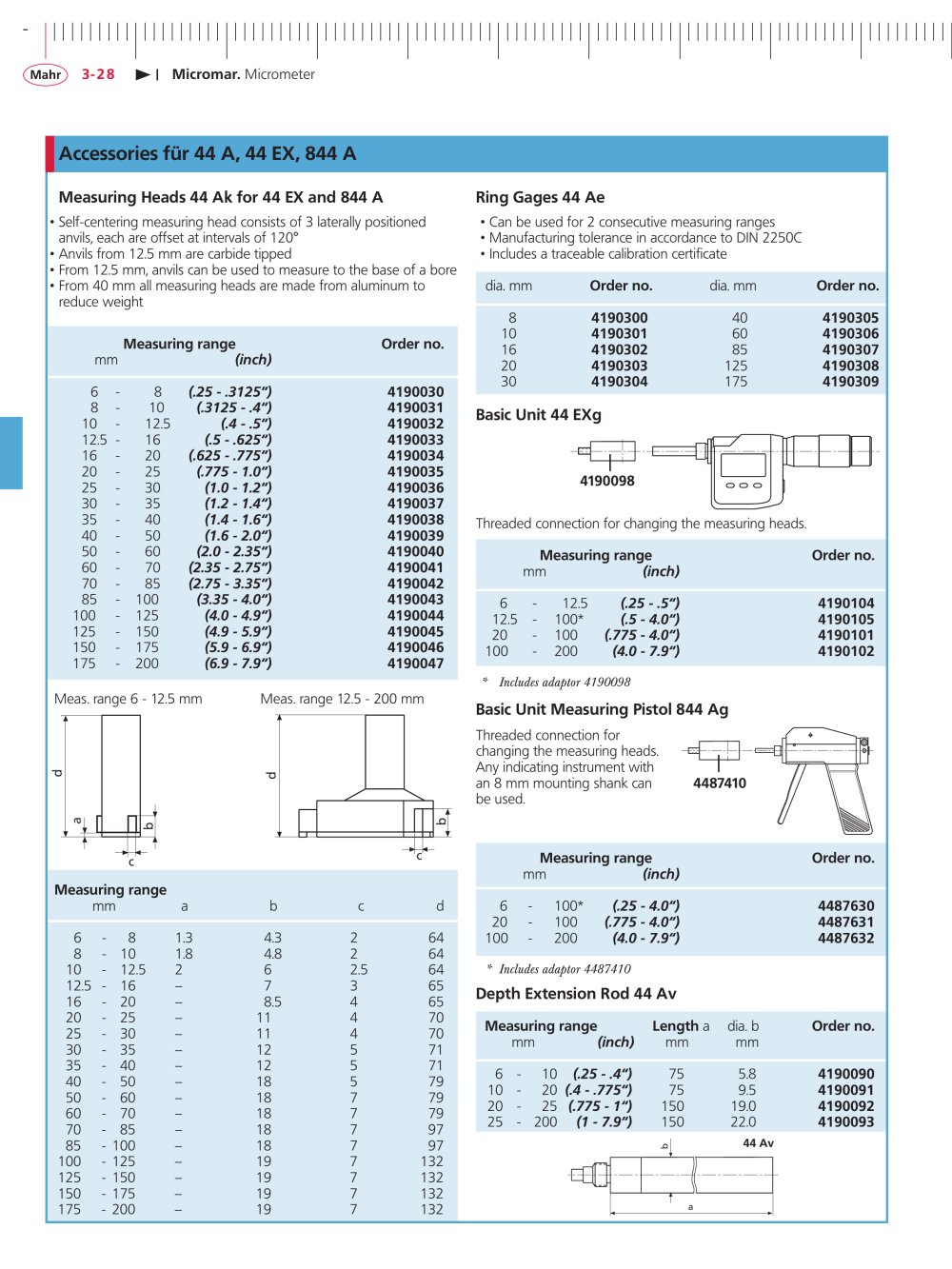

Accessories für 44 A, 44 EX, 844 A
Measuring Heads 44 Ak for 44 EX and 844 A
■ Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
■ Anvils from 12.5 mm are carbide tipped
■ From 12.5 mm, anvils can be used to measure to the base of a bore
■ From 40 mm all measuring heads are made from aluminum to reduce weight
Ring Gages 44 Ae
• Can be used for 2 consecutive measuring ranges
• Manufacturing tolerance in accordance to DIN 2250C
• Includes a traceable calibration certificate
dia. mm
Order no.
dia. mm
Order no.
8
4190300
40
4190305
10
4190301
60
4190306
16
4190302
85
4190307
20
4190303
125
4190308
30
4190304
175
4190309
mm
Measuring range
(inch)
Order no.
6 -
8
(.25 - .3125")
4190030
8 -
10
(.3125 - .4")
4190031
10 -
12.5
(.4 - .5")
4190032
12.5 -
16
(.5 - .625")
4190033
16 -
20
(.625 - .775")
4190034
20 -
25
(.775 -1.0")
4190035
25 -
30
(LO -1.2")
4190036
30 -
35
(1.2 -1.4")
4190037
35 -
40
(1.4 - 1.6")
4190038
40 -
50
(1.6 - 2.0")
4190039
50 -
60
(2.0 - 2.35")
4190040
60 -
70
(2.35 - 2.75")
4190041
70 -
85
(2.75 - 3.35")
4190042
85 -
100
(3.35 - 4.0")
4190043
100 -
125
(4.0 - 4.9")
4190044
125 -
150
(4.9 - 5.9")
4190045
150 -
175
(5.9 - 6.9")
4190046
175 -
200
(6.9 - 7.9")
4190047
Meas. range 6 - 12.5 mm Meas. range 12.5
200 mm
Basic Unit 44 EXg
1=
4190098
Threaded connection for changing the measuring heads. Measuring range
Order no.
mm
(inch)
6 -
12.5
(.25 - .5")
4190104
12.5 -
100*
(.5 - 4.0")
4190105
20 -
100
(.775 - 4.0")
4190101
100 -
200
(4.0 - 7.9")
4190102
* Includes adaptor 4190098
Basic Unit Measuring Pistol 844 Ag
Threaded connection for changing the measuring heads. Any indicating instrument with an 8 mm mounting shank can be used.
T3
T3
n
3
c
c
Measuring range mm (inch)
Order no.
6 - 100* (.25 - 4.0") 20 - 100 (.775 - 4.0") 100 - 200 (4.0 - 7.9")
4487630 4487631 4487632
* Includes adaptor 4487410
Depth Extension Rod 44 Av
Measuring range Length a mm (inch) mm
dia. b mm
Order no.
6 - 10 (.25 - .4") 75 10 - 20 (.4 - .775") 75 20 - 25 (.775 - 1") 150 25 - 200 (1 - 7.9") 150
5.8 9.5 19.0 22.0
4190090 4190091 4190092 4190093
Measuring range
mm
a
b
c
d
6
- 8
1.3
4.3
2
64
8
- 10
1.8
4.8
2
64
10
- 12.5
2
6
2.5
64
12.5
- 16
-
7
3
65
16
- 20
-
8.5
4
65
20
- 25
-
11
4
70
25
- 30
-
11
4
70
30
- 35
-
12
5
71
35
- 40
-
12
5
71
40
- 50
-
18
5
79
50
- 60
-
18
7
79
60
- 70
-
18
7
79
70
- 85
-
18
7
97
85
- 100
-
18
7
97
100
- 125
-
19
7
132
125
- 150
-
19
7
132
150
- 175
-
19
7
132
175
- 200
-
19
7
132
44 Av
