Text version of the page
| | ||||
| + | ||||
| | ||||

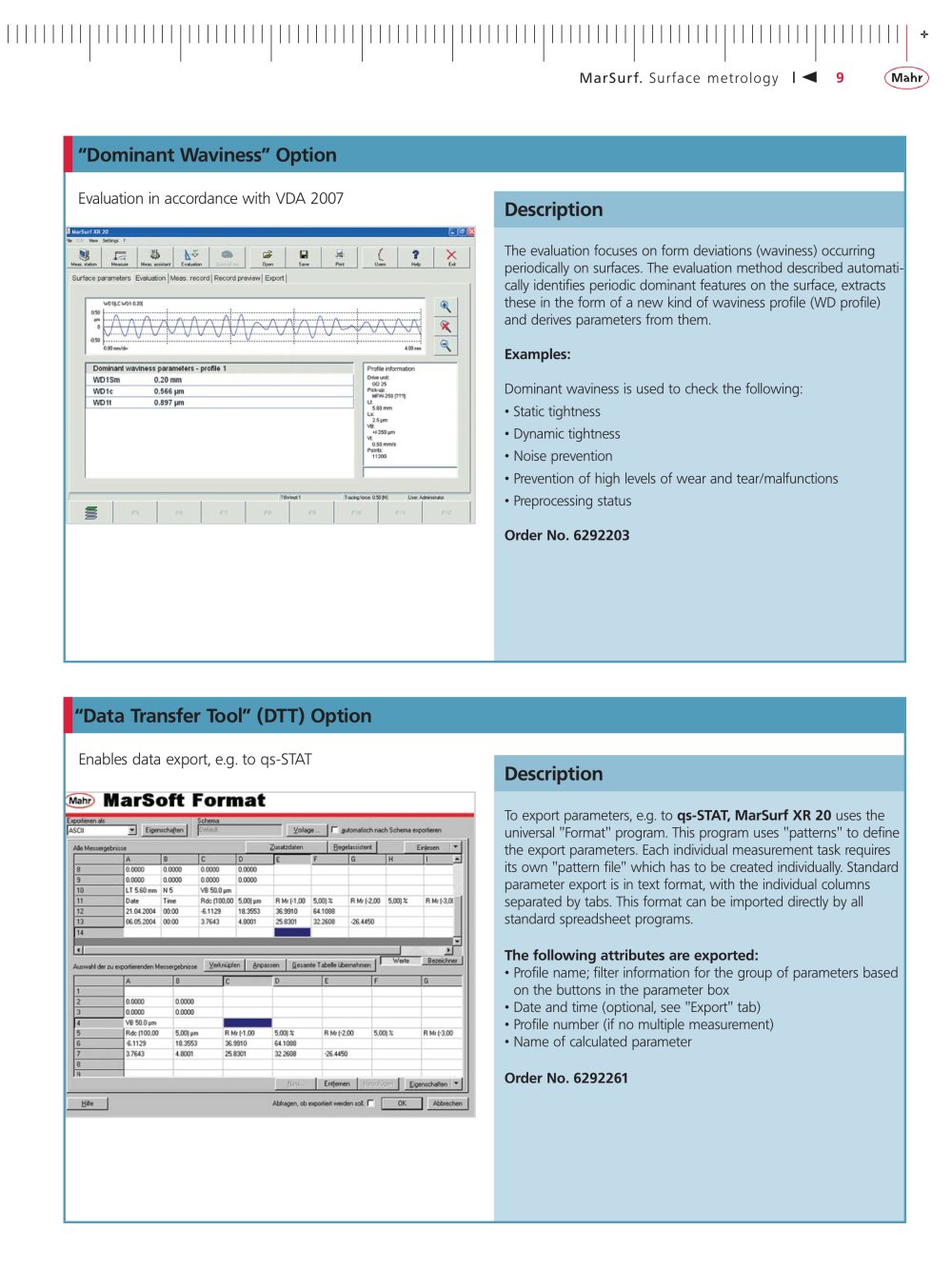

| MarSurf. Surface metrology I | Mahr; | |||
| | ||||
| "Dominant Waviness" Option Evaluation in accordance with VDA 2007 | ||||
| | ||||
| "Data Transfer Tool" (DTT) Option Enables data export, e.g. to qs-STAT | Description | |||
| | ||||
| To export parameters, e.g. to qs-STAT, MarSurf XR 20 uses the universal "Format" program. This program uses "patterns" to define the export parameters. Each individual measurement task requires its own "pattern file" which has to be created individually. Standard parameter export is in text format, with the individual columns separated by tabs. This format can be imported directly by all standard spreadsheet programs. The following attributes are exported: • Profile name; filter information for the group of parameters based on the buttons in the parameter box • Date and time (optional, see "Export" tab) • Profile number (if no multiple measurement) • Name of calculated parameter Order No. 6292261 | ||||
| | ||||
