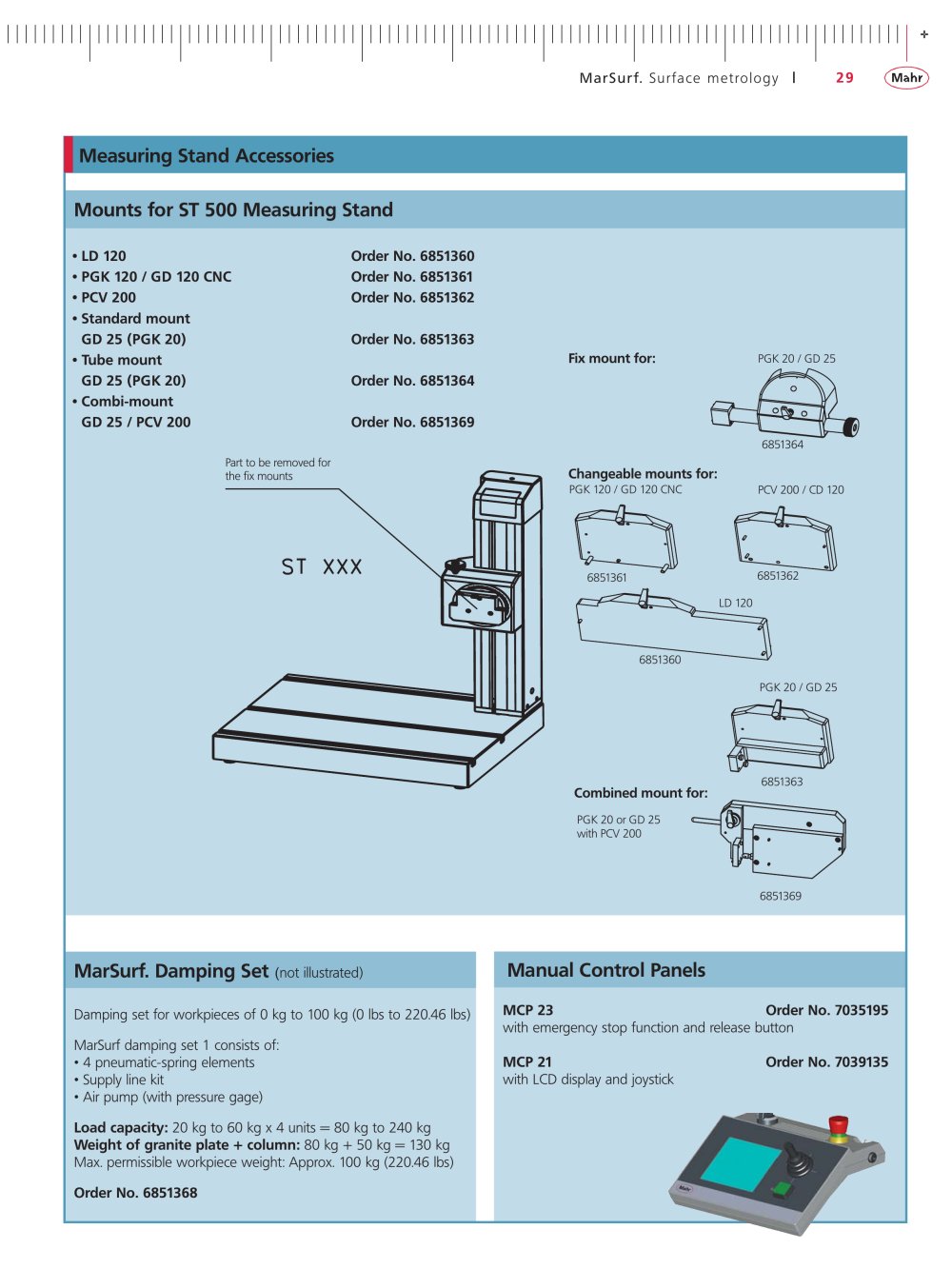

MarSurf. Surface metrology 29

Measuring Stand Accessories Mounts for ST 500 Measuring Stand

• LD 120 Order No. 6851360• PGK 120 / GD 120 CNC Order No. 6851361 • PCV 200 Order No. 6851362 • Standard mount GD 25 (PGK 20) Order No. 6851363 • Tube mount GD 25 (PGK 20) Order No. 6851364 • Combi-mount GD 25 / PCV 200 Order No. 6851369
Fix mount for:Changeable mounts for: Combined mount for: Part to be removed forthe fix mounts PGK 120 / GD 120 CNCPCV 200 / CD 120 PGK 20 / GD 2568513616851362 6851363 PGK 20 / GD 256851364 LD 1206851360 6851369PGK 20 or GD 25 with PCV 200

MarSurf. Damping Set

( not illustrated)

Manual Control Panels

Damping set for workpieces of 0 kg to 100 kg (0 lbs to 220.46 lbs)MarSurf damping set 1 consists of:• 4 pneumatic-spring elements • Supply line kit • Air pump (with pressure gage) MCP 23 Order No. 7035195 with emergency stop function and release button Load capacity: 20 kg to 60 kg x 4 units = 80 kg to 240 kg MCP 21 Order No. 7039135 Weight of granite plate + column: 80 kg + 50 kg = 130 kgMax. permissible workpiece weight: Approx. 100 kg (220.46 lbs) with LCD display and joystick Order No. 6851368
