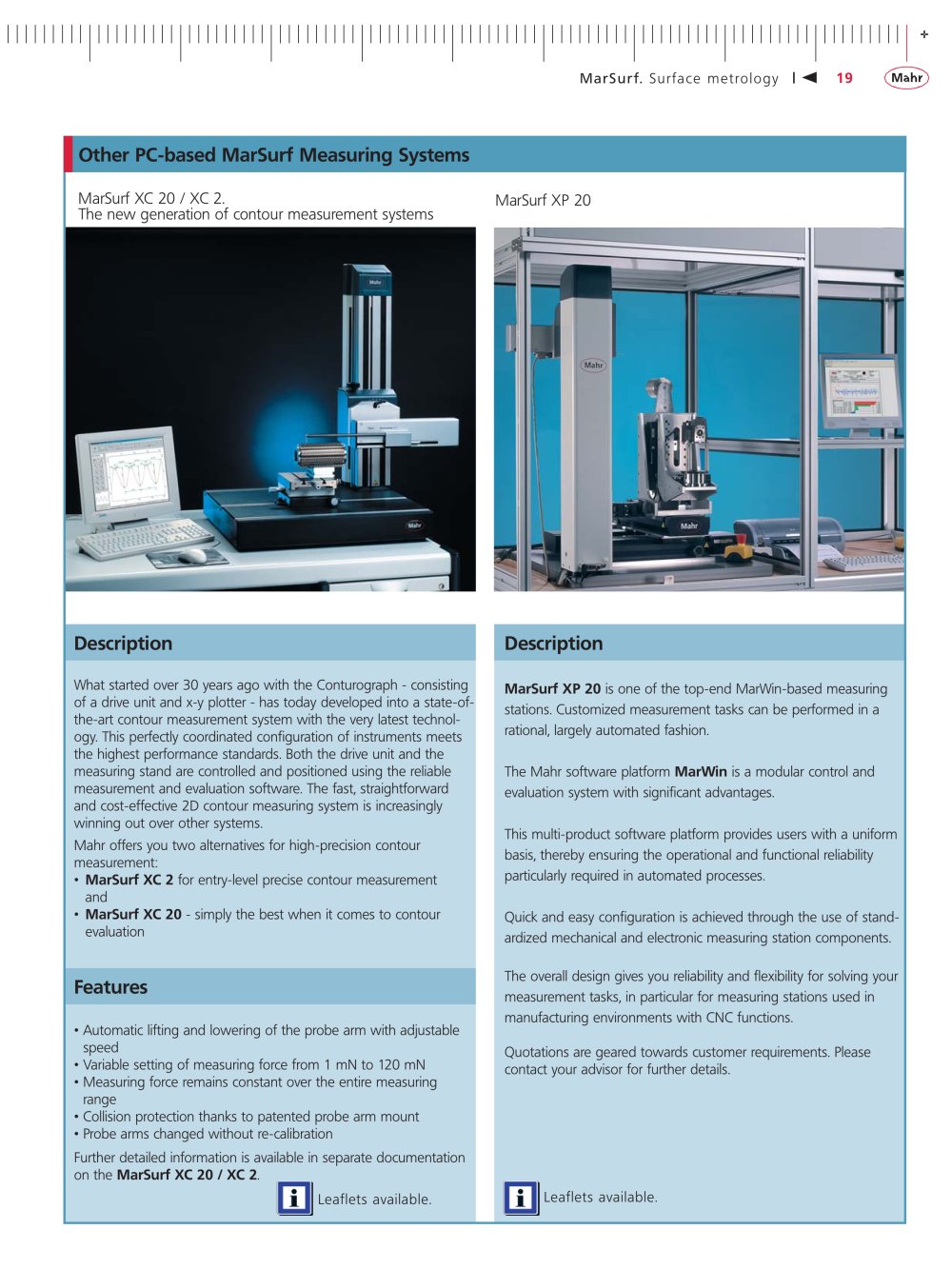

MarSurf. Surface metrology 19

MarSurf XC 20 / XC 2.The new generation of contour measurement systems MarSurf XP 20

MarSurf XC 20 MarSurf XC 2 for entry-level precise contour measurement and • - simply the best when it comes to contour evaluation MarSurf XP 20 is one of the top-end MarWin-based measuring stations. Customized measurement tasks can be performed in a rational, largely automated fashion.The Mahr software platform

Description Other PC-based MarSurf Measuring Systems Description

MarWin is a modular control and evaluation system with significant advantages.This multi-product software platform provides users with a uniform basis, thereby ensuring the operational and functional reliability particularly required in automated processes.Quick and easy configuration is achieved through the use of stand-ardized mechanical and electronic measuring station components.The overall design gives you reliability and flexibility for solving your measurement tasks, in particular for measuring stations used in manufacturing environments with CNC functions.Quotations are geared towards customer requirements. Please contact your advisor for further details. What started over 30 years ago with the Conturograph - consisting of a drive unit and x-y plotter - has today developed into a state-of- the-art contour measurement system with the very latest technol- ogy. This perfectly coordinated configuration of instruments meets the highest performance standards. Both the drive unit and the measuring stand are controlled and positioned using the reliable measurement and evaluation software. The fast, straightforward and cost-effective 2D contour measuring system is increasingly winning out over other systems. Mahr offers you two alternatives for high-precision contour measurement: •

Features

• Automatic lifting and lowering of the probe arm with adjustable speed• Variable setting of measuring force from 1 mN to 120 mN • Measuring force remains constant over the entire measuring range• Collision protection thanks to patented probe arm mount • Probe arms changed without re-calibrationFurther detailed information is available in separate documentation on the MarSurf XC 20 / XC 2 . Leaflets available. Leaflets available.
