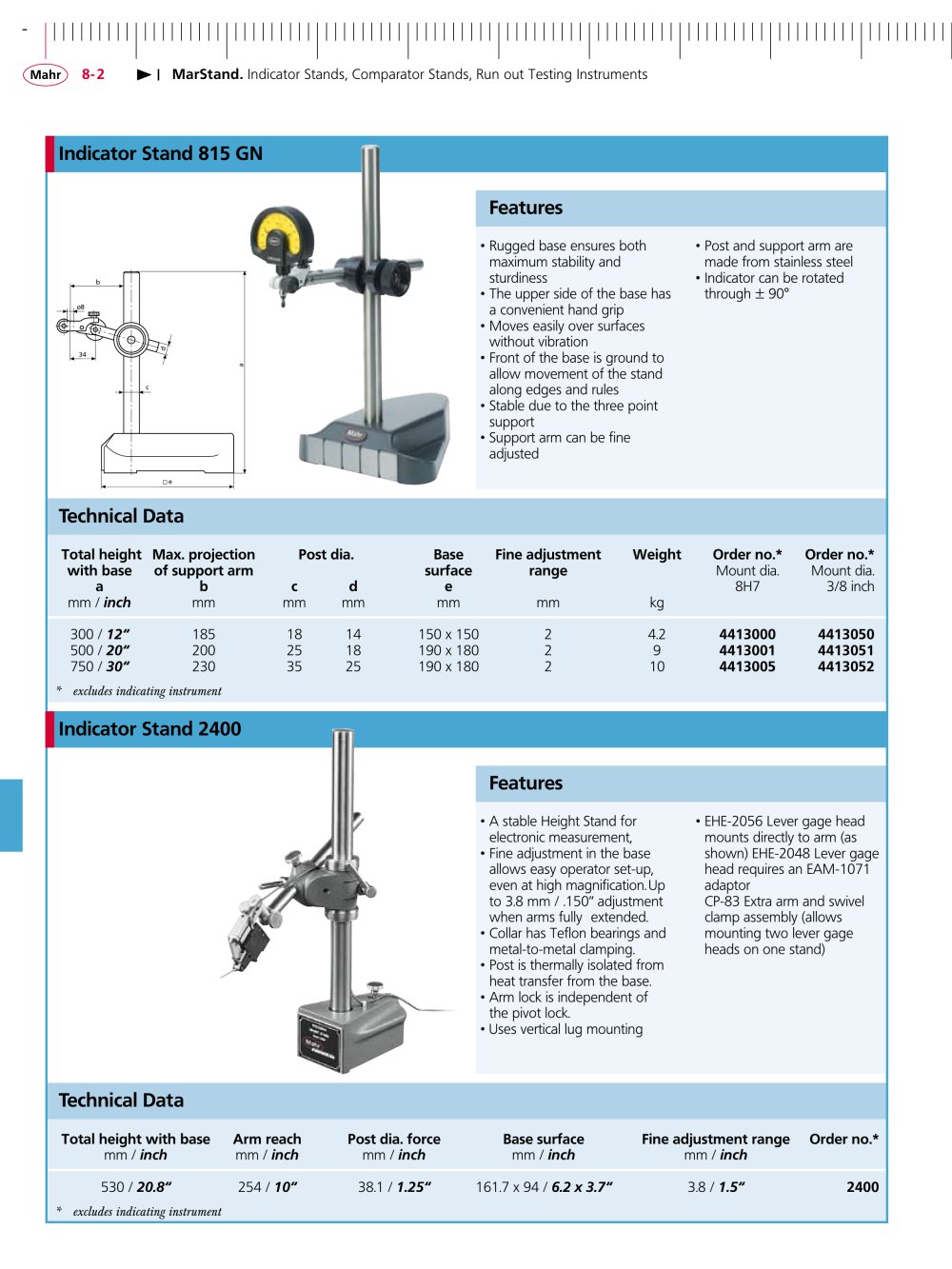

MarStand Indicator Stand 815 MG with flexible stem - 9205 Indicator Stand 815 GN Features

• Rugged base ensures both maximum stability and sturdiness • The upper side of the base has a convenient hand grip• Moves easily over surfaces without vibration • Front of the base is ground to allow movement of the stand along edges and rules • Stable due to the three point support• Support arm can be fine adjusted • Post and support arm are made from stainless steel• Indicator can be rotated through ± 90°
b 34ø8 d a c e

Technical Data

Total height Max. projection Post dia. Base Fine adjustment Weight Order no.* Order no.* with base of support arm surface range Mount dia. Mount dia. a b c d e 8H7 3/8 inch mm / inch mm mm mm mm mm kg 300 / 12“ 185 18 14 150 x 150 2 4.2 4413000 4413050 500 / 20“ 200 25 18 190 x 180 2 9 4413001 4413051 750 / 30“ 230 35 25 190 x 180 2 10 4413005 4413052
* excludes indicating instrument

Indicator Stand 2400

• A stable Height Stand for electronic measurement,• Fine adjustment in the base allows easy operator set-up, even at high magnification. Up to 3.8 mm / .150“ adjustment when arms fully extended.• Collar has Teflon bearings and metal-to-metal clamping.• Post is thermally isolated from heat transfer from the base.• Arm lock is independent of the pivot lock.• Uses vertical lug mounting • EHE-2056 Lever gage head mounts directly to arm (as shown) EHE-2048 Lever gage head requires an EAM-1071 adaptor CP-83 Extra arm and swivel clamp assembly (allows mounting two lever gage heads on one stand)

Technical Data Features

Total height with base Arm reach Post dia. force Base surface Fine adjustment range Order no.* mm / inch mm / inch mm / inch mm / inch mm / inch 530 / 20.8“ 254 / 10“ 38.1 / 1.25“ 161.7 x 94 / 6.2 x 3.7“ 3.8 / 1.5“ 2400
