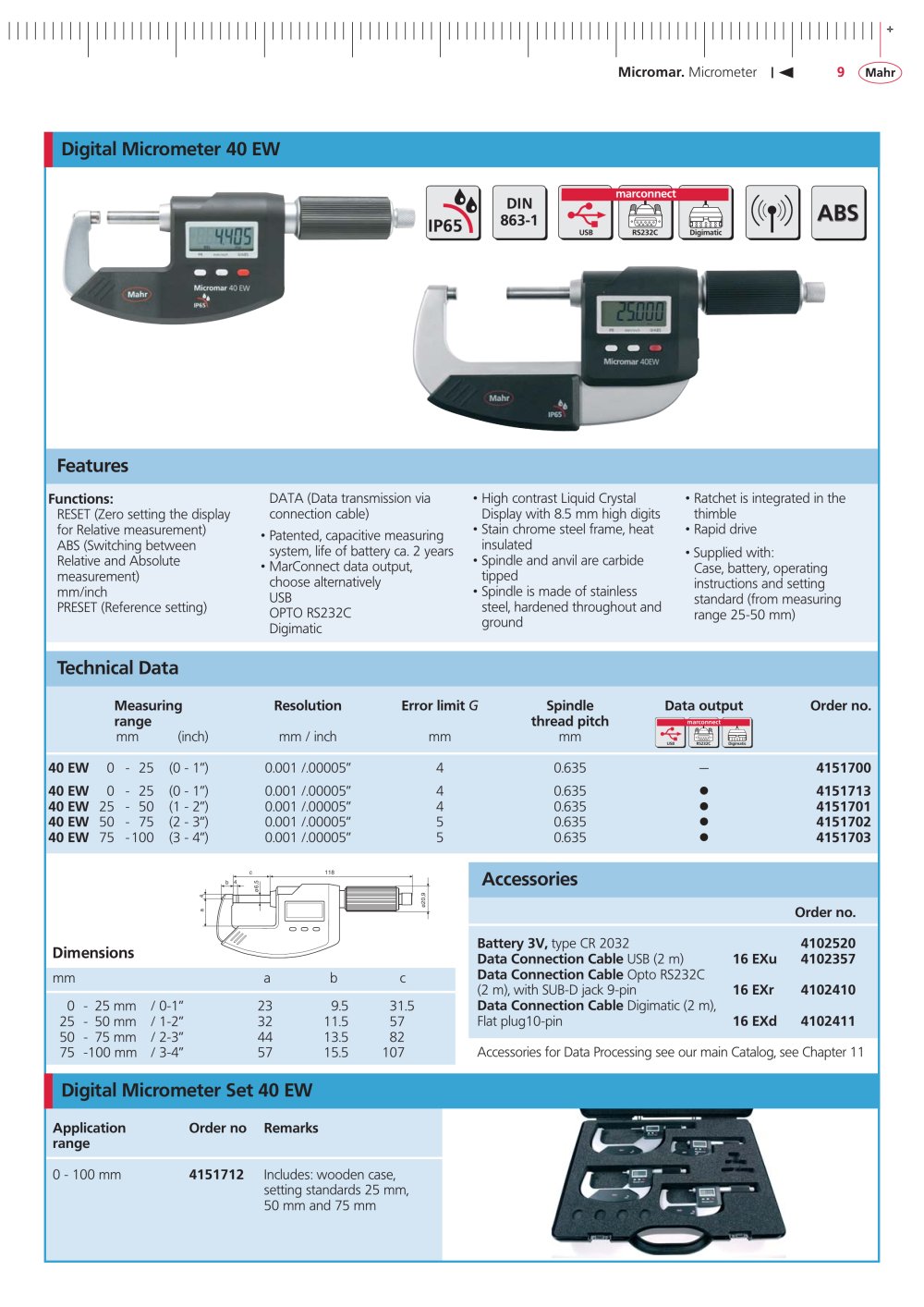

Micromar. Micrometer 9

IP65

Digital Micrometer 40 EW - 9205 ABS ABS

Features

Functions: DATA (Data transmission via connection cable)• Patented, capacitive measuring system, life of battery ca. 2 years• MarConnect data output, choose alternatively USB OPTO RS232C Digimatic• High contrast Liquid Crystal Display with 8.5 mm high digits• Stain chrome steel frame, heat insulated• Spindle and anvil are carbide tipped• Spindle is made of stainless steel, hardened throughout and ground• Ratchet is integrated in the thimble• Rapid drive• Supplied with: Case, battery, operating instructions and setting standard (from measuring range 25-50 mm) RESET (Zero setting the display for Relative measurement) ABS (Switching between Relative and Absolute measurement) mm/inch PRESET (Reference setting)

Technical Data Digital Micrometer 40 EW

Measuring Resolution Error limit G Spindle Data output Order no. range thread pitch mm (inch) mm / inch mm mm 40 EW 0 - 25 (0 - 1”) 0.001 /.00005” 4 0.635 — 415170040 EW 0 - 25 (0 - 1”) 0.001 /.00005” 4 0.635 415171340 EW 25 - 50 (1 - 2”) 0.001 /.00005” 4 0.635 415170140 EW 50 - 75 (2 - 3”) 0.001 /.00005” 5 0.635 415170240 EW 75 - 100 (3 - 4”) 0.001 /.00005” 5 0.635 4151703 Order no. Battery 3V,

Accessories Digital Micrometer Set 40 EW

type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357Data Connection Cable Opto RS232C(2 m), with SUB-D jack 9-pin 16 EXr 4102410Data Connection Cable

Dimensions

Digimatic (2 m), Flat plug10-pin 16 EXd 4102411 mm a b c 0 - 25 mm / 0-1” 23 9.5 31.5 25 - 50 mm / 1-2” 32 11.5 57 50 - 75 mm / 2-3” 44 13.5 82 75 - 100 mm / 3-4” 57 15.5 107 Accessories for Data Processing see our main Catalog, see Chapter 11 0 - 100 mm 4151712 Includes: wooden case, setting standards 25 mm, 50 mm and 75 mm Application Order no Remarksrange
