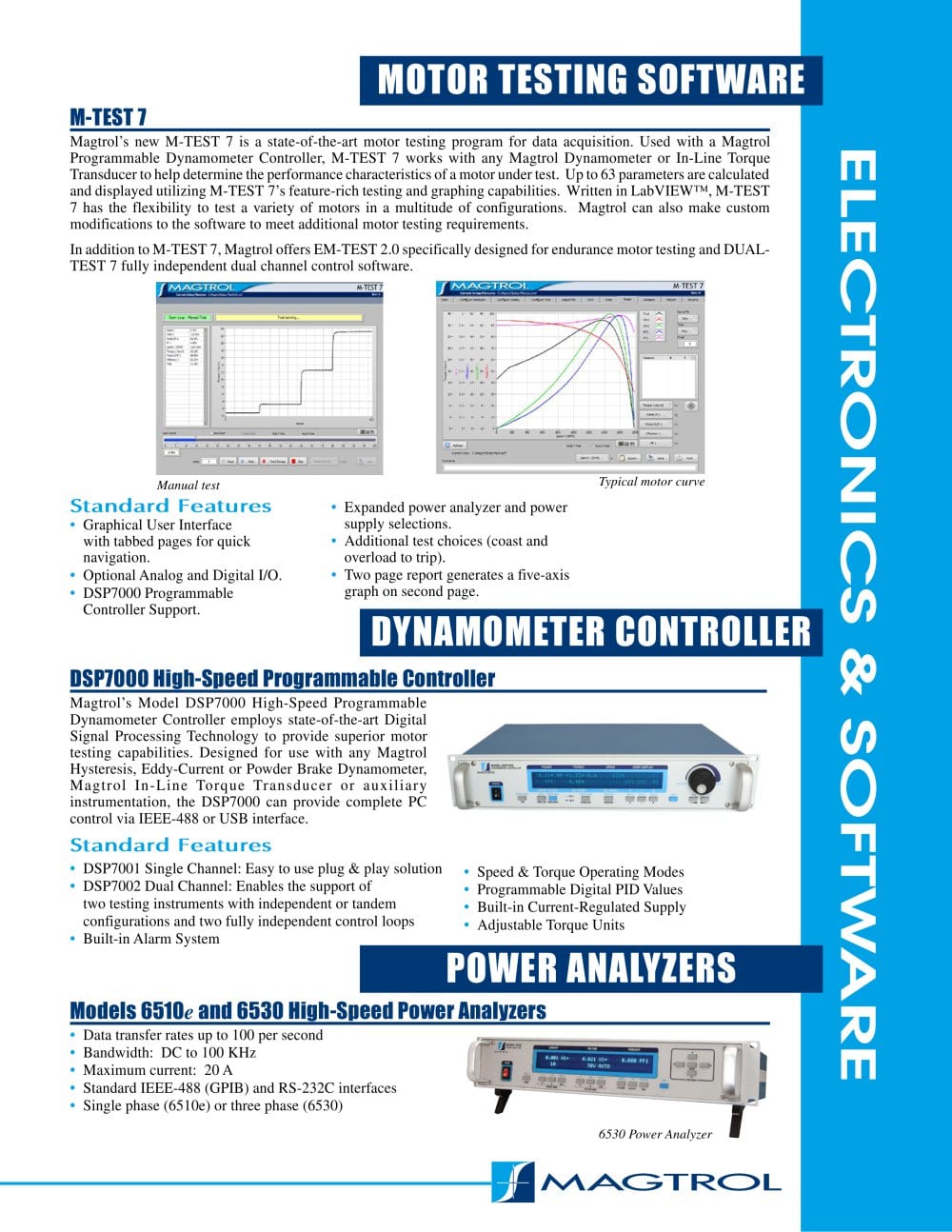

DYNAMOMETER CONTROLLERS
Magtrols Model DSP6001 Programmable Dynamometer Controller employs state-of-the-art Digital Signal Processing technology to provide superior motor testing capabilities. Designed for use with any Magtrol HD, WB or PB Dynamometer; Magtrol In-Line
Torque transducer; or auxiliary instrumentation, the DSP6001 can provide complete PC control via IEEE-488 or RS-232 interface. Two channels enable the unit to support a combination of up to two independently configured testing instruments. With up to 100 readings per second, the DSP6001 is ideally suited for both the test lab and the
production line.
ELECTRONICS Standard Features
Fast Full-Curve
Data acquisition High-Speed Data Acquisition Speed & Torque Operating Modes (Open or Closed Loop) Programmable Digital PID Values Single Point or Programmed Load Control RS-232 and IEEE-488 Interfaces Torque and Speed Analog Output Vacuum Fluorescent Readout Closed-Box Calibration of Torque & Auxiliary Input 19 Rack Mounts with Handles Thermal Alarm Input
6200 Open-Loop Controller
Magtrols Model 6200 is an open-loop controller with a high-quality vacuum fluorescent display. The unit provides open-loop control of HD Series
Dynamometers via an internal current regulated power supply. The Model 6200 displays torque, speed and mechanical power values of the motor under test. Instead of mechanical power, the unit can display an auxiliary
transducer reading via the ±5 V DC analog input. The displayed values can be stored internally or output via the RS-232 or IEEE-488 interfaces.
Standard Features
High-Quality, Easy-to-Read Display Auxiliary ±5 V DC Analog Input for Additional Transducer Internal Data Storage Pass/Fail Motor Testing Capability Open-Loop Dynamometer Control RS-232 and IEEE-488 Interfaces Dynamometer Overload Protection 19 Rack Mounts with Handles e and 6530 measure volts, amps, watts, volt-amps, frequency, crest factor, Vpeak, Apeak and power factor in one convenient display. At the core of the unit is a Digital Signal Processor capable of processing over 40 million instructions per second (10 million per second for the 6510
The Magtrol 6510 e Single-Phase and 6530 Three-Phase Power Analyzers are easy-to-use instruments ideal for numerous power measurement applications. Both power analyzers provide extremely fast data transfer rates, up to 100 per second, which makes them ideal for both static and dynamic tests. From DC to 100 kHz AC, the 6510 e ). e ). Both units are equipped with an easy-to-read customizable vacuum fluorescent display and an optional plug-in module that provides up to 12 channels of analog output (3 channels for Model 6510
Standard Features
Easy Setup and High-Quality, Easy-to-Read Display Measurement: Continuous or Cycle-by-Cycle Ranges: Up to 600 V
rms @ 20 A continuous duty Average, Peak and Inrush Capabilities Accuracy: Up to 0.1% RS-232 and IEEE-488 Interfaces Bandwidth: DC up to 100 kHz External Shunt Input Input Power: Accepts 120/240 V
rms, 19 Rack Mounts with Handles 60/50 Hz power at 20 VA max
