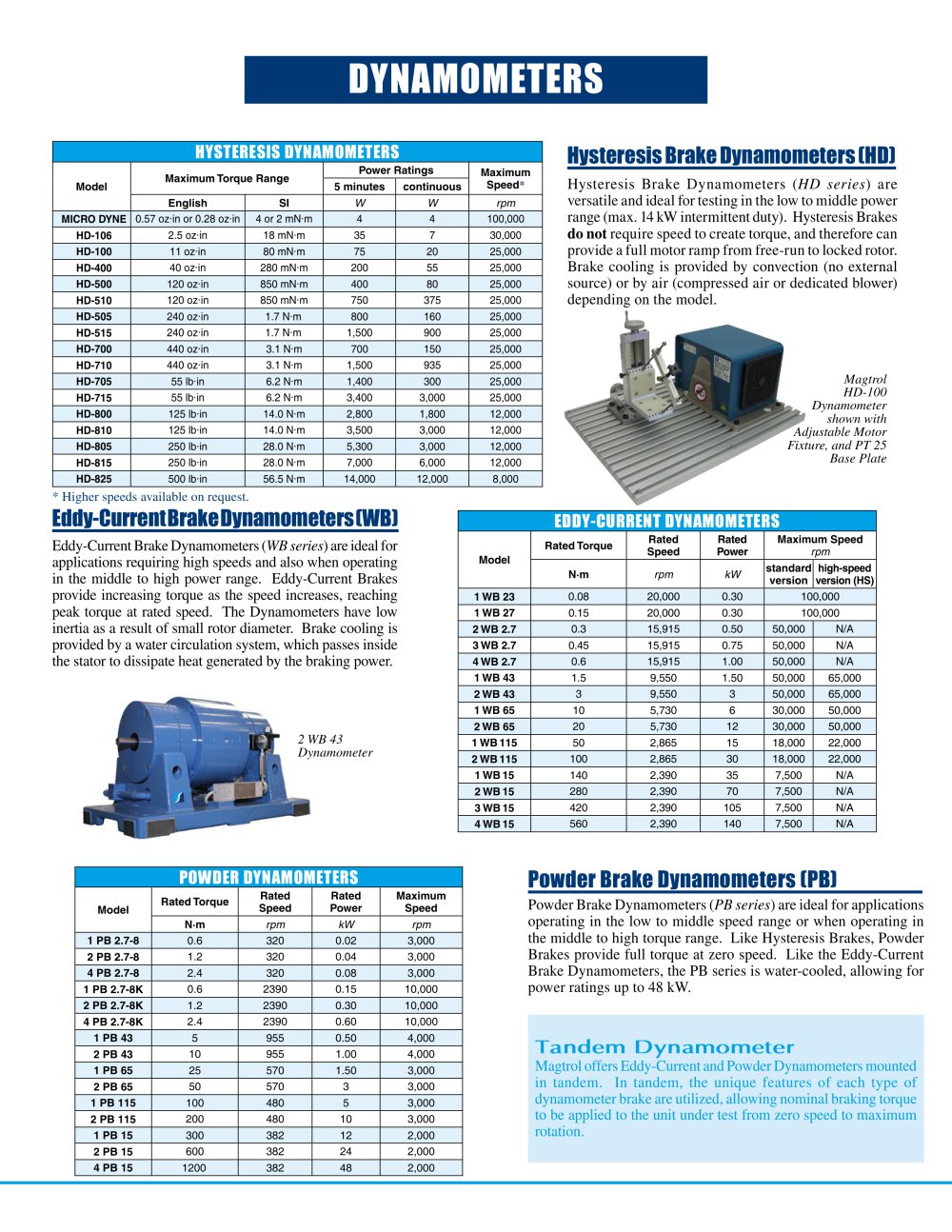

DYNAMOMETERS


HYSTERESIS DYNAMOMETERS
Model	Maximum Torque Range			Power Ratings		Maximum Speed
	Maximum Torque Range			5 minutes	continuous	Maximum Speed
	English	Metric	SI	W	W	rpm
HD-106	2.5 oz-in	180 g-cm	18 mN-m	35	7	30,000
HD-100	11 oz-in	800 g-cm	80 mN-m	75	20	25,000
HD-400	40 oz-in	2.8 kg-cm	280 mN-m	200	55	25,000
HD-500	120 oz-in	8.5 kg-cm	850 mN-m	400	80	25,000
HD-510	120 oz-in	8.5 kg-cm	850 mN-m	750	375	25,000
HD-505	240 oz-in	17 kg-cm	1.7 N-m	800	160	25,000
HD-515	240 oz-in	17 kg-cm	1.7 N-m	1,500	900	25,000
HD-700	440 oz-in	31 kg-cm	3.1 N-m	700	150	25,000
HD-710	440 oz-in	31 kg-cm	3.1 N-m	1,500	935	25,000
HD-705	55 Ib-in	62 kg-cm	6.2 N-m	1,400	300	25,000
HD-715	55 Ib-in	62 kg-cm	6.2 N-m	3,400	3,000	25,000
HD-800	125 Ib-in	140 kg-cm	14.0 N-m	2,800	1,800	12,000
HD-810	125 Ib-in	140 kg-cm	14.0 N-m	3,500	3,000	12,000
HD-805	250 Ib-in	280 kg-cm	28.0 N-m	5,300	3,000	12,000
HD-815	250 Ib-in	280 kg-cm	28.0 N-m	7,000	6,000	12,000
HD-825	500 Ib-in	565 kg-cm	56.5 N-m	14,000	12,000	8,000

1 WB 65-HS Dynamometer

Magtrol offers three types of dynamometer industrial brakes to absorb load: Hysteresis, Eddy-Current and Magnetic Powder. Each type of Dynamometer has advantages and limitations and choosing the correct one will depend largely on the type of testing to be performed. Magtrol sales professionals are readily available to assist in selecting the proper dynamometer to meet your testing needs.

Magtrol HD-400 Dynamometer shown with Adjustable Motor Fixture, Coupling and Dc motor manufacturer

Hysteresis Brake Dynamometers_HD

Hysteresis Brake Dynamometers (HD series) are versatile and ideal for testing in the low to middle power range (max. 14 kW intermittent duty). Hysteresis brakes do not require speed to create torque, and therefore can provide a full motor ramp from free-run to locked rotor. Brake cooling is provided by convection (no external source) or by air (compressed air or dedicated blower) depending on the model. Hysteresis Dynamometers have both continuous and intermittent power ratings where the dynamometer is capable of dissipating more power for shorter periods of time. All Hysteresis Dynamometers have accuracy ratings of ±0.25% to ±0.5% full scale, depending on size and system configuration. Also available are special designs for small engine and high-speed motor testing.

* Higher speeds available on request.

DY-CURRENT DYNAMOMET


Model	Rated Torque			Rated Speed	Rated Power	Maximum Speed rpm
Model	English	Metric	SI	rpm	kW	standard version	high-speed version (HS)
1 WB 2.7	21 oz-in	1.5 kg-cm	0.15 N-m	15,915	0.25	50,000	70,000
2 WB 2.7	43 oz-in	3 kg-cm	0.3 N-m	15,915	0.50	50,000	70,000
3 WB 2.7	64 oz-in	4.5 kg-cm	0.45 N-m	15,915	0.75	50,000	70,000
4 WB 2.7	85 oz-in	6 kg-cm	0.6 N-m	15,915	1.00	50,000	70,000
1 WB 43	212 oz-in	15 kg-cm	1.5 N-m	9,550	1.50	50,000	65,000
2 WB 43	425 oz-in	30 kg-cm	3 N-m	9,550	3	50,000	65,000
1 WB 65	89 Ib-in	100 kg-cm	10 N-m	5,730	6	30,000	50,000
2 WB 65	177 Ib-in	200 kg-cm	20 N-m	5,730	12	30,000	50,000
1 WB 115	443 Ib-in	500 kg-cm	50 N-m	2,865	15	18,000	22,000
2 WB 115	885 Ib-in	1000 kg-cm	100 N-m	2,865	30	18,000	22,000
1 WB 15	1239 Ib-in	1400 kg-cm	140 N-m	2,390	35	7,500	N/A
2 WB 15	2478 Ib-in	2800 kg-cm	280 N-m	2,390	70	7,500	N/A
3 WB 15	3717 Ib-in	4200 kg-cm	420 N-m	2,390	105	7,500	N/A
4 WB 15	4957 Ib-in	5600 kg-cm	560 N-m	2,390	140	7,500	N/A

Eddy-Current Brake Dynamometers

Eddy-Current Brake Dynamometers (WB series) are ideal for applications requiring high speeds and also when operating in the middle to high power range. Eddy-Current Brakes provide increasing torque as the speed increases, reaching peak torque at rated speed. The Dynamometers have low inertia as a result of small rotor diameter. Brake cooling is provided by a water circulation system, which passes inside the stator to dissipate heat generated by the braking power. The water cooling in the WB provides high continuous power ratings (max. 140 kW). The WB Dynamometers have typical accuracy ratings of ±0.3% to ±0.5% full scale (±2% for WB 2.7), depending on size and system configuration.

Under Development: Model 1 WB 23, with speeds up to 100,000 rpm.


POWDER DYNAMOMETERS
Model	Rated Torque			Rated Speed	Rated Power	Maximum Speed
Model	English	Metric	SI	rpm	kW	rpm
1 PB 2.7-8	85 oz-in	6 kg-cm	0.6 N-m	320	0.02	3,000
2 PB 2.7-8	170 oz-in	12 kg-cm	1.2 N-m	320	0.04	3,000
4 PB 2.7-8	340 oz-in	24 kg-cm	2.4 N-m	320	0.08	3,000
1 PB 2.7-8K	85 oz-in	6 kg-cm	0.6 N-m	2390	0.15	10,000
2 PB 2.7-8K	170 oz-in	12 kg-cm	1.2 N-m	2390	0.30	10,000
4 PB 2.7-8K	340 oz-in	24 kg-cm	2.4 N-m	2390	0.60	10,000
1 PB 43	44 Ib-in	50 kg-cm	5 N-m	955	0.50	4,000
2 PB 43	89 Ib-in	100 kg-cm	10 N-m	955	1.00	4,000
1 PB 65	221 Ib-in	250 kg-cm	25 N-m	570	1.50	3,000
2 PB 65	442 Ib-in	500 kg-cm	50 N-m	570	3	3,000
1 PB 115	885 Ib-in	1,000 kg-cm	100 N-m	480	5	3,000
2 PB 115	1,770 Ib-in	2,000 kg-cm	200 N-m	480	10	3,000
1 PB 15	2,655 Ib-in	3,000 kg-cm	300 N-m	382	12	2,000
2 PB 15	5,311 Ib-in	6,000 kg-cm	600 N-m	382	24	2,000
4 PB 15	10,621 Ib-in	12,000 kg-cm	1200 N-m	382	48	2,000

Powder Brake Dynamometers

Powder Brake Dynamometers (PB series) are ideal for applications operating in the low to middle speed range or when operating in the middle to high torque range. Like Hysteresis Brakes, Powder Brakes provide full torque at zero speed. Like the Eddy-Current Brake Dynamometers, the PB series is water-cooled, allowing for power ratings up to 48 kW. The PB Dynamometers have typical accuracy ratings of ±0.3% to ±0.5% full scale (±2% for PB 2.7), depending on size and system configuration.

Tandem Dynamometer

Magtrol offers Eddy-Current and Powder Dynamometers mounted in tandem. In tandem, the unique features of each type of dynamometer brake are utilized, allowing nominal braking torque to be applied to the unit under test from zero speed to maximum rotation. The Tandem Dynamometers are available on a number of PB/WB combinations.
