MOTOR TESTING SOFTWARE

M-TEST 5.0

Magtrol’s M-TEST 5.0 is a state-of-the-art motor testing program designed for use with Windows® operating systems for PC-based data acquisition. Used in conjunction with Magtrol’s Motor Testing equipment, M-TEST 5.0 is equipped with ramp, curve and manual testing capabilities to help determine the performance characteristics of a motor under test, and also provides pass/fail testing for production line and inspection applications. The data generated can be stored, displayed and printed in tabular or graphic formats, and is easily imported into a spreadsheet. M-TEST 5.0 is ideal for simulating loads, cycling the unit under test and motor ramping. Magtrol can also make custom modifications to the software to meet your specific motor testing needs.

New Features Other Features

Overlay data from two separate tests Cursor tools for plot analysis • Temperature measurement Capability is Now Included in Standard Program • Displays 22 Tested and Calculated Parameters • Pass/Fail Testing • Tabbed Interface for Quick Navigation • Automatically Loads Default Test Instrument Parameters • More Graphing Options • Motor Shaft Direction Indicator • Simplified PID Scaling • IEEE-488 & RS-232 Interface • Automatic GPIB Device/ Address Detection • Three-Phase Power analyzer Data Acquisition • Multiple Language Support • Curve Fitting • Single/Multi-User Login with Password Protection • Customized Reports • Report Saving and Recall

Sensor Input Measurement

M-TEST 5.0 is capable of reading and monitoring up to 32 industrial thermocouples or analog sensors during a motor test. Perform heat rise curves on the industrial bearings, windings and housing of a motor, or measure air flow/exhaust efficiencies with an air tool or internal combustion engine. M-TEST 5.0, with its complete dynamometer control, even allows for sensor measurement while performing load simulation for duty cycle and life testing.Magtrol’s Customized Motor Test Systems (CMTS) are PC-based, turnkey systems custom designed and built to meet your specific requirements.

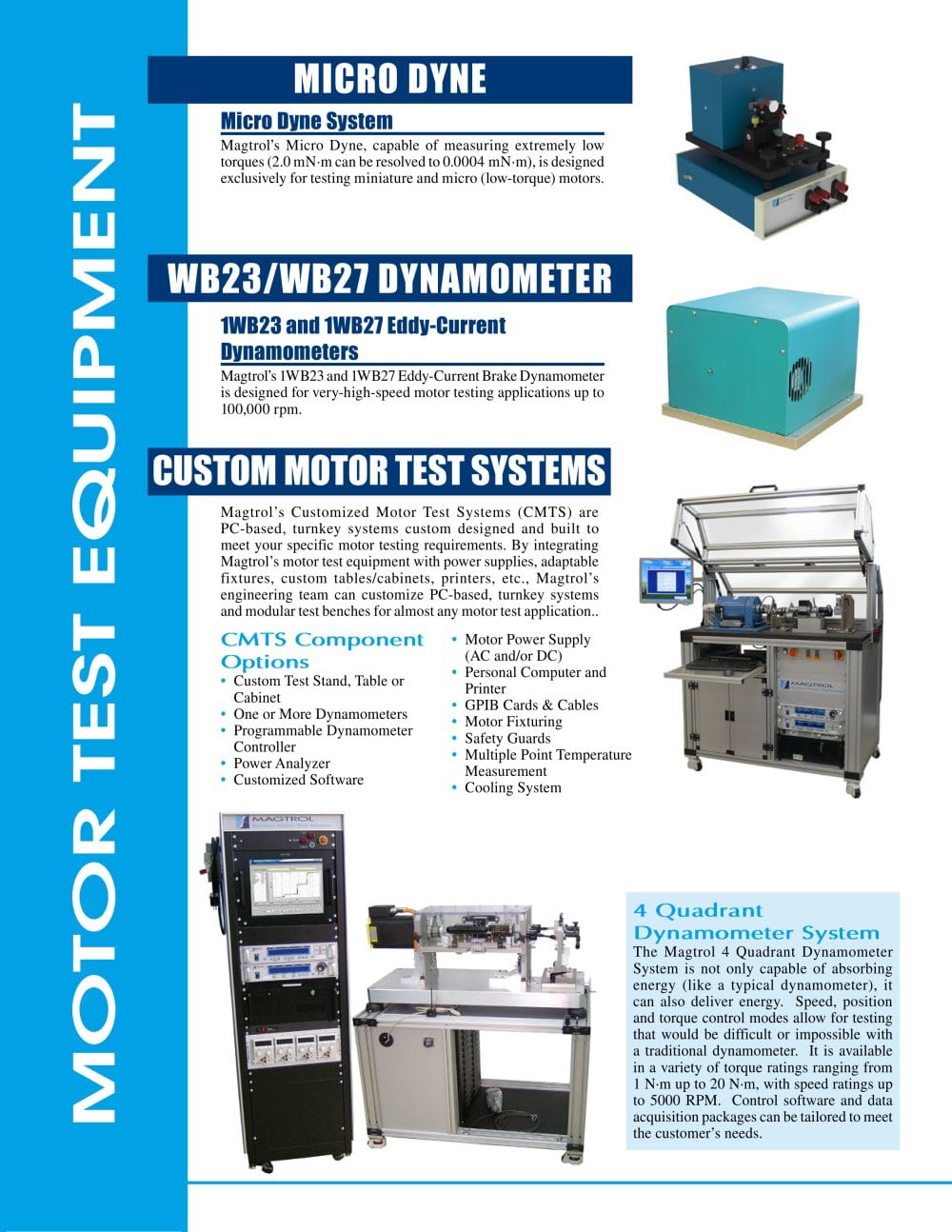

CUSTOM MOTOR TEST SYSTEMS

CMTS Component Options

• Custom Test stand, Table or Cabinet • One or More Dynamometers • Programmable Dynamometer Controller • Power Analyzer • Customized Software • Motor Power Supply (AC and/or DC) • Personal Computer and Printer • GPIB Cards & Cables • Motor Fixturing • Safety Guards
MOTOR TEST EQUIPMENT • Multiple Point Temperature Measurement • Industrial cooling system • Calibration Weights • On-Site Services: commissioning & training
