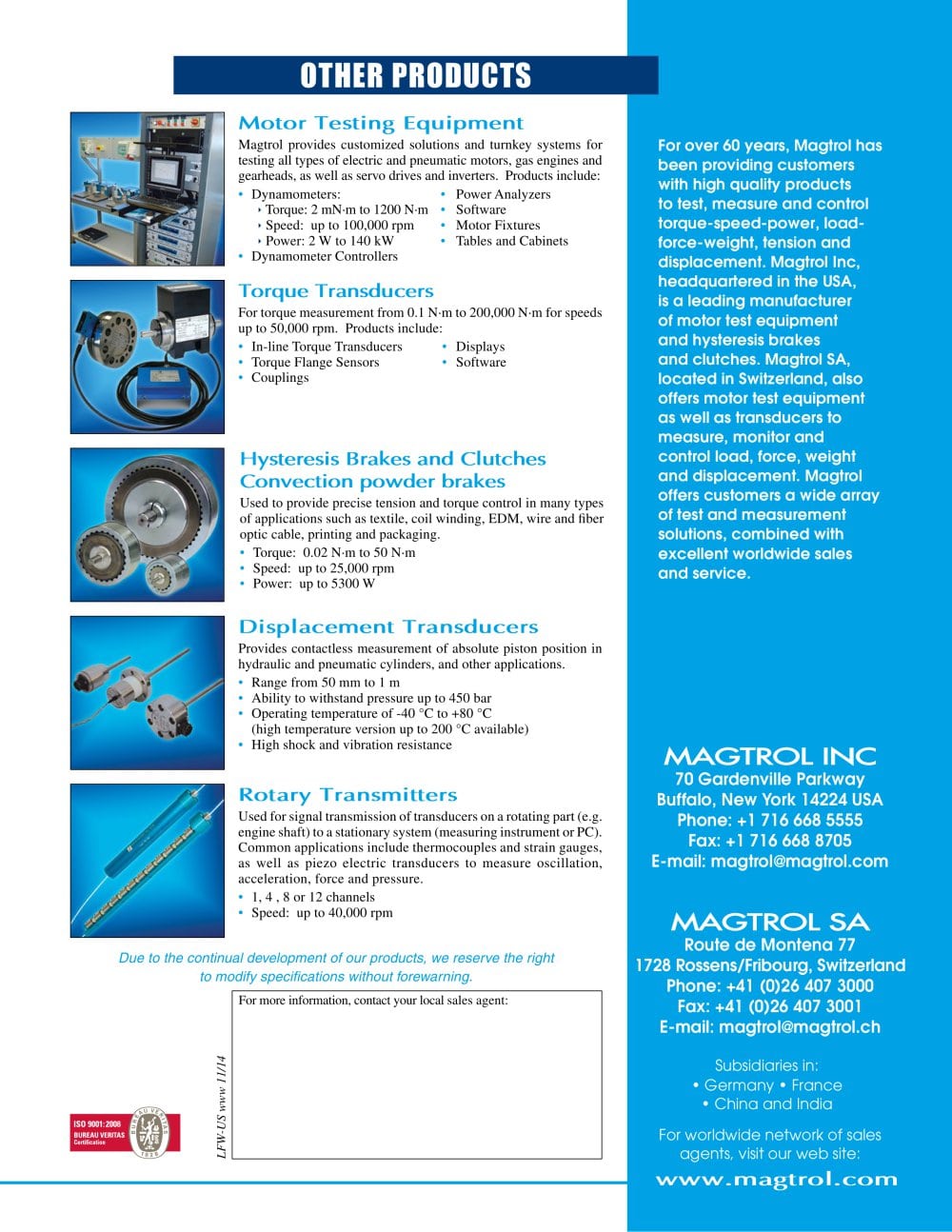

OTHER PRODUCTS
Motor Testing Equipment
Magtrol provides customized solutions and turnkey systems for testing all types of electric and pneumatic motors, gas engines and gearheads, as well as servo drives and inverters. Products include:
For over 50 years, Magtrol has been providing customers with high quality products to test, measure and control torque-speed-power, load-
force-weight, tension and displacement. Magtrol Inc, headquartered in the USA, is a leading manufacturer of motor test equipment and hysteresis brakes and clutches. Magtrol SA, located in Switzerland, also offers motor test equipment as well as transducers to measure, monitor and control load, force, weight and displacement. Magtrol offers customers a wide array of test and measurement solutions, combined with excellent worldwide sales and service.
s Dynamometers: s Power Analyzers Torque: 2 mN·m to 1200 N·m s Software Speed: up to 100,000 rpm s Motor Fixtures Power: 2 W to 140 kW s Tables and Cabinets s Dynamometer Controllers
Torque Transducers
For torque measurement from 0.1 N·m to 150,000 N·m for speeds up to 60,000 rpm. Products include: s In-line Torque Transducers s Displays s Torque Flange Sensors s Software s capteurs de couple en réaction s Couplings
Hysteresis Brakes and Clutches Convection Powder Brakes
Used to provide precise tension and torque control in many types of applications such as textile, coil winding, EDM, wire and fiber optic cable, printing and packaging. s Torque: 0.02 N·m to 50 N·m s Speed: up to 25,000 rpm s Power: up to 5300 W
Displacement Transducers
Provides contactless measurement of absolute piston position in hydraulic and pneumatic cylinders, and other applications. s Range from 50 mm to 1 m s Ability to withstand pressure up to 450 bar s Operating temperature of -40 °C to +80 °C(high temperature version up to 200 °C available) s High shock and vibration resistance
M AGTROL INC
70 Gardenville ParkwayBuffalo, New York 14224 USAPhone: +1 716 668 5555Fax: +1 716 668 8705E-mail: magtrol@magtrol.com
Rotary Transmitters
Used for signal transmission of transducers on a rotating part (e.g. engine shaft) to a stationary system (measuring instrument or PC). Common applications include thermocouples and strain gauges, as well as piezo electric transducers to measure oscillation, acceleration, force and pressure. s 1, 4 , 8 or 12 channels s Speed: up to 40,000 rpm
MAGTROL SA
Due to the continual development of our products, we reserve the rightto modify specifications without forewarning.
Centre technologique Montena1728 Rossens/Fribourg, SwitzerlandPhone: +41 (0)26 407 3000Fax: +41 (0)26 407 3001E-mail: magtrol@magtrol.ch
For more information, contact your local sales agent:
Subsidiaries in: 'ERMANY For worldwide network of sales agents, visit our web site:
