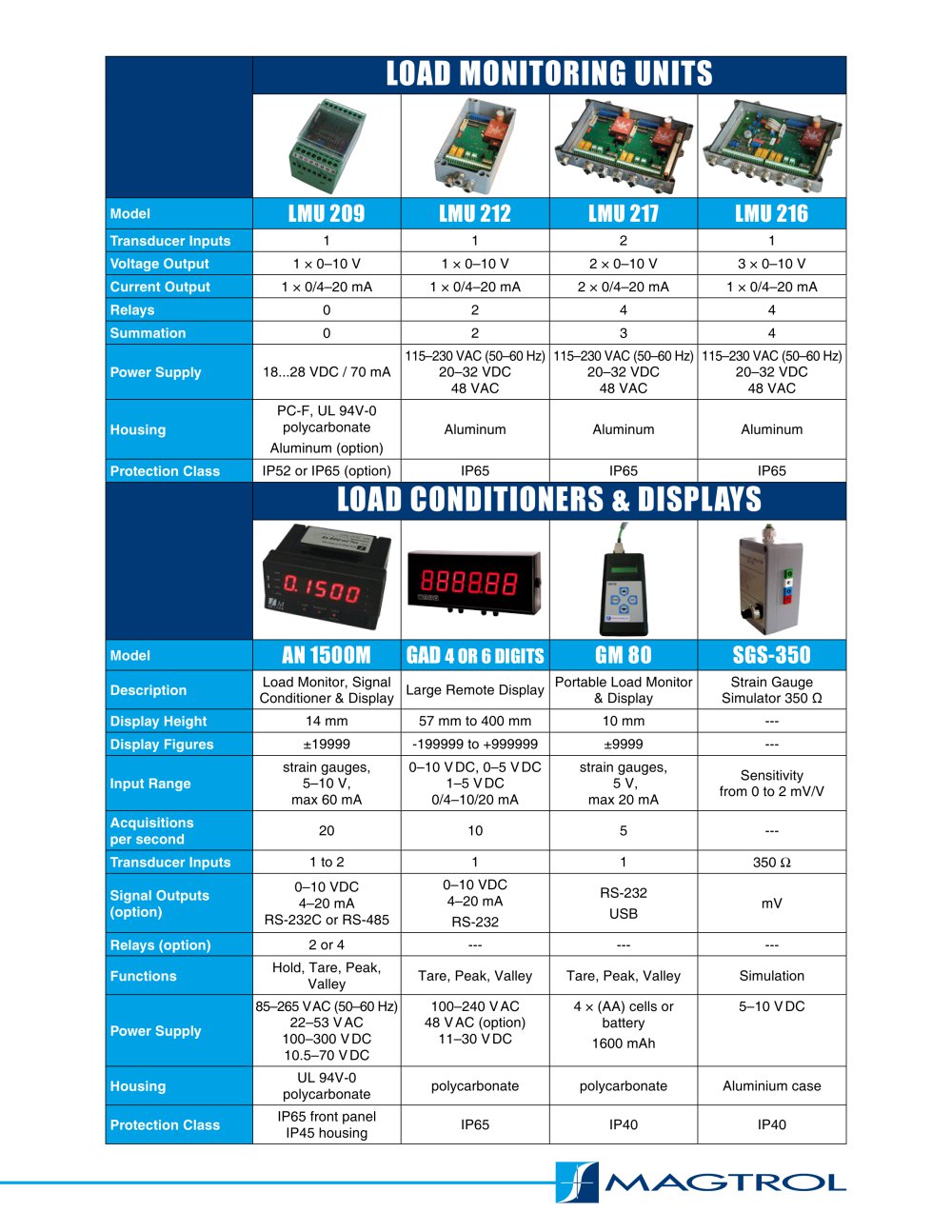

LOAD MONITORING UNITS

ELECTRONICS

Magtrol’s Load Monitoring Units are used for measuring load, force and weight from signals generated by strain gauge transducers. Specifically designed for use with Magtrol’s Load Measuring Pins and Load-Force-Weight sensors, the LMU Series provides excitation voltage while conditioning the bridge output signal. Each unit contains DIP-switches and jumpers for greater flexibility and complete adaptability. User-defined alarm limits can be programmed into the unit, which when combined with our sensors, provides a industrial safe and rugged measurement system that continuously monitors for short-circuits and interrupted signal lines. Magtrol LMUs are specially designed for use in harsh environments (IP 65 protection class) and are suitable for crane security systems. Magtrol’s AN Series Signal conditioners are used for processing and displaying measurements from signals generated by transducers (weight, load, pressure, torque, etc.) that use standard strain-gauge bridges such as Magtrol’s load measuring pins, load-force-weight sensors and strain transducers. Suited for indoor use, the AN Series provides selectable input ranges and excitation voltages to accommodate cells of various types and sensitivities

LMU 112LMU 117LMU 116

(LMU 117 = LMU 112 + LMU 112) Description single channeldual-channel (2 LMU 112 units)single channel Transducer Inputs 121 Voltage Output 1 × 0–10 V2 × 0–10 V3 × 0–10 V Current Output 1 × 0–20 mA or 4–20 mA2 × 0–20 mA or 4–20 mA1 × 0–20 mA or 4–20 mA Relay Ouput Contacts 244 (including 2 with programmable memory) Summation 2 signals3 signals4 signals Tare Function ------yes NOTE: Other versions are available on request including simple analog or digital strain gauge amplifier, crane movement industrial recorder, operating hour recorder and anti-toppling systems.

LOAD CONDITIONERS & DISPLAYS

. The GAC Series is simply a large remote digital display that is used in combination with any Magtrol LMU or AN unit.

AN 2000 CAN 1500 MGAC Series

Description Load monitor / Signal Conditioner / DisplayLoad Monitor / Signal Conditioner / DisplayRemote Display Used With LB load measuring pinsLB/LE/LU load measuring pinswith/without an LMULMU or AN Display 5-digit / 14 mm height / red5-digit / 14 mm height / tri-color5-digit / 57 – 280 mm height / red Acquisitions per Second 16202.5 Transducer Inputs 1 to 41 or 21 Signal Input Strain gauge or ± 300 mV Strain gauge or 15 mV, 30 mV, 150 mV0 to 10 V, 0 to 20 mA or 4 to 20 mA Transducer Excitation 5 V or 10 V; max 120 mA5V or 10 V; max 60 mAN/A Front Panel Programming yesyesno Functions Hold, Tare, Peak, Valley Hold, Tare, Peak, Valley Tare Analog Output (optional) 0–10 V / 4–20 mA0–10 V or 4–20 mAN/A Serial Output (optional) RS-232 or RS-485RS-232 or RS-485RS-232 Relay Outputs (optional) 2 or 42 or 4N/A
