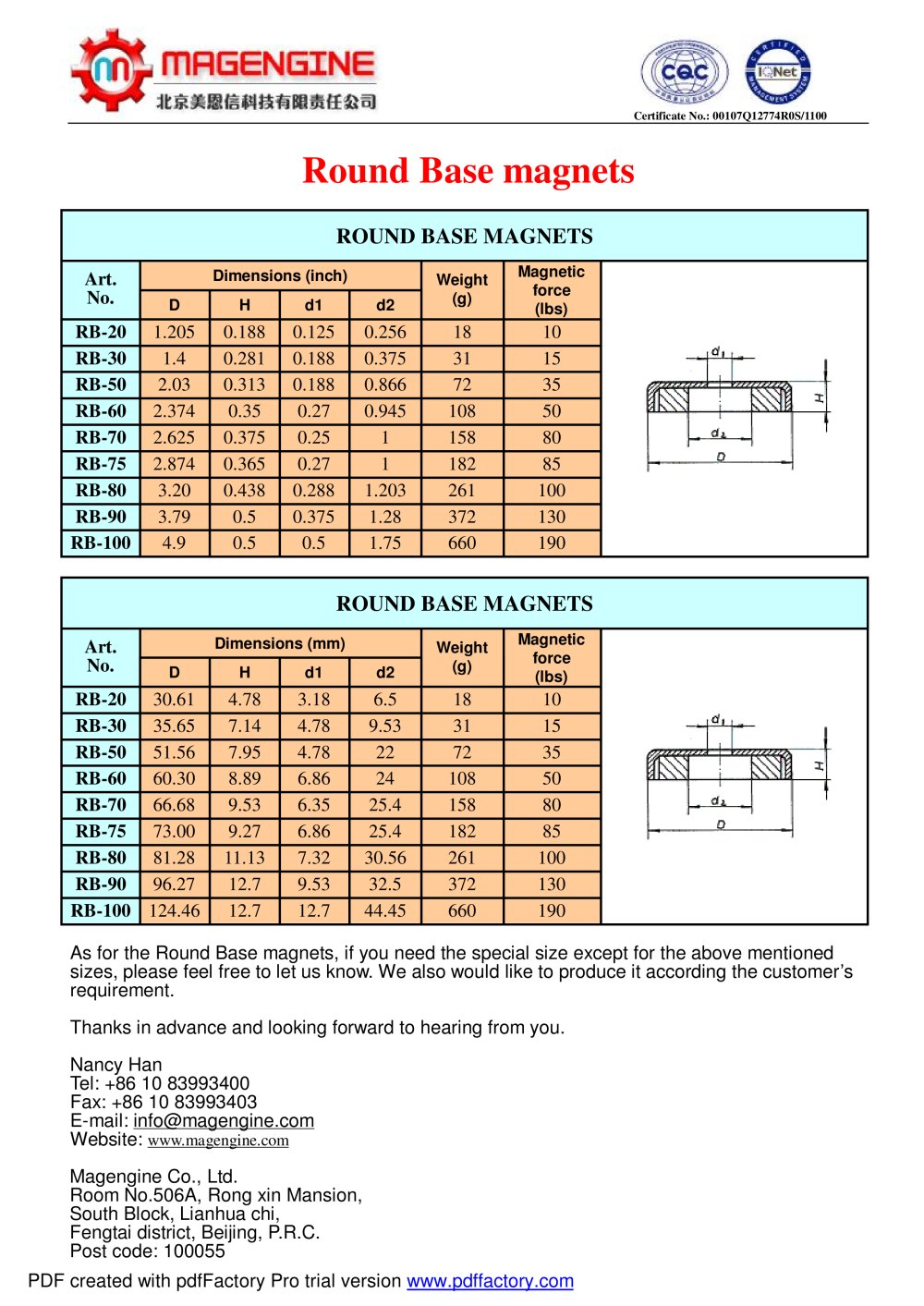

Round Base magnets
ROUND BASE MAGNETS
Art. No.
Dimensions (inch)
Weight
(g)
Magnetic force (lbs)
D
H
d1
d2
RB-20
1.205
0.188
0.125
0.256
18
10
RB-30
1.4
0.281
0.188
0.375
31
15
RB-50
2.03
0.313
0.188
0.866
72
35
RB-60
2.374
0.35
0.27
0.945
108
50
RB-70
2.625
0.375
0.25
1
158
80
RB-75
2.874
0.365
0.27
1
182
85
RB-80
3.20
0.438
0.288
1.203
261
100
RB-90
3.79
0.5
0.375
1.28
372
130
RB-100
4.9
0.5
0.5
1.75
660
190
ROUND BASE MAGNETS
Art.
Dimensions (mm)
Weight
Magnetic force (lbs)
No.
D
H
d1
d2
(g)
RB-20
30.61
4.78
3.18
6.5
18
10
RB-30
35.65
7.14
4.78
9.53
31
15
RB-50
51.56
7.95
4.78
22
72
35
RB-60
60.30
8.89
6.86
24
108
50
RB-70
66.68
9.53
6.35
25.4
158
80
RB-75
73.00
9.27
6.86
25.4
182
85
RB-80
81.28
11.13
7.32
30.56
261
100
RB-90
96.27
12.7
9.53
32.5
372
130
RB-100
124.46
12.7
12.7
44.45
660
190
As for the Round Base magnets, if you need the special size except for the above mentioned sizes, please feel free to let us know. We also would like to produce it according the customer's requirement.
Thanks in advance and looking forward to hearing from you.
Nancy Han Tel: +86 10 83993400 Fax: +86 10 83993403 E-mail: info@magengine.com
Website: www.magengine.com
Magengine Co., Ltd. Room No.506A, Rong xin Mansion, South Block, Lianhua chi, Fengtai district, Beijing, P.R.C. Post code: 100055
