Wit mHGENGINE
Add: Room 506A, RongxinMansion,No.23,South Block Lian hua chi, Fengtai District, Beijing, China
. Tel: 010-83993400, 83993401 Fax: 010-83993403 :tt5l£J8^W&£Bfi3stt&e] Email: info@magengine.com
Website: www.magengine.com

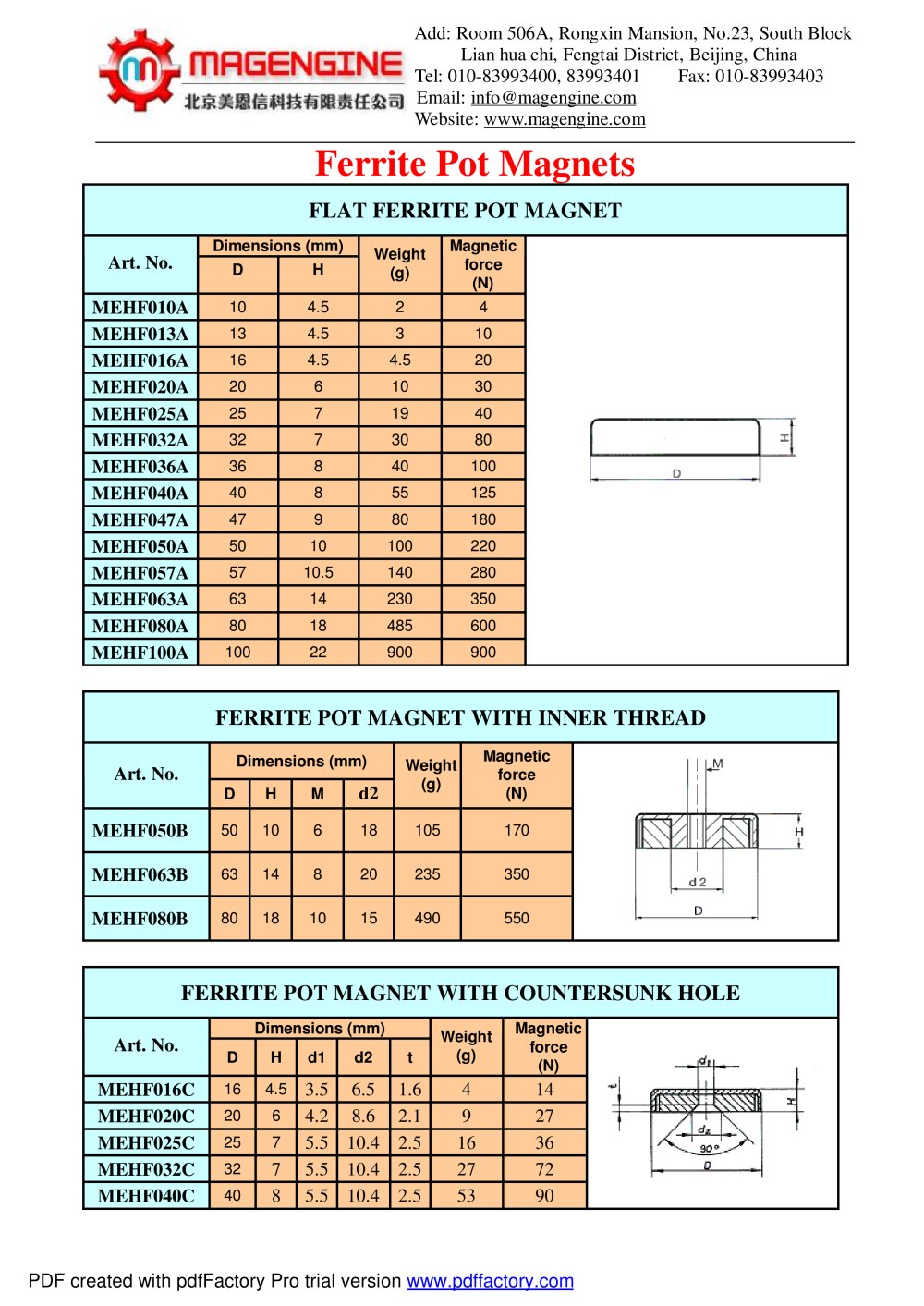

Ferrite Pot Magnets
FLAT FERRITE POT MAGNET
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
MEHF010A
10
4.5
2
4
MEHF013A
13
4.5
3
10
MEHF016A
16
4.5
4.5
20
MEHF020A
20
6
10
30
MEHF025A
25
7
19
40
MEHF032A
32
7
30
80
MEHF036A
36
8
40
100
MEHF040A
40
8
55
125
MEHF047A
47
9
80
180
MEHF050A
50
10
100
220
MEHF057A
57
10.5
140
280
MEHF063A
63
14
230
350
MEHF080A
80
18
485
600
MEHF100A
100
22
900
900
FERRITE POT MAGNET WITH INNER THREAD
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
M
d2
MEHF050B
50
10
6
18
105
170
MEHF063B
63
14
8
20
235
350
MEHF080B
80
18
10
15
490
550
FERRITE POT MAGNET WITH COUNTERSUNK HOLE
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
d1
d2
t
MEHF016C
16
4.5
3.5
6.5
1.6
4
14
MEHF020C
20
6
4.2
8.6
2.1
9
27
MEHF025C
25
7
5.5
10.4
2.5
16
36
MEHF032C
32
7
5.5
10.4
2.5
27
72
MEHF040C
40
8
5.5
10.4
2.5
53
90
