Wit mHGENGINE
Add: Room 506A, RongxinMansion,No.23,South Block Lian hua chi, Fengtai District, Beijing, China
. Tel: 010-83993400, 83993401 Fax: 010-83993403 :tt5l£J8^W&£Bfi3stt&e] Email: info@magengine.com
Website: www.magengine.com

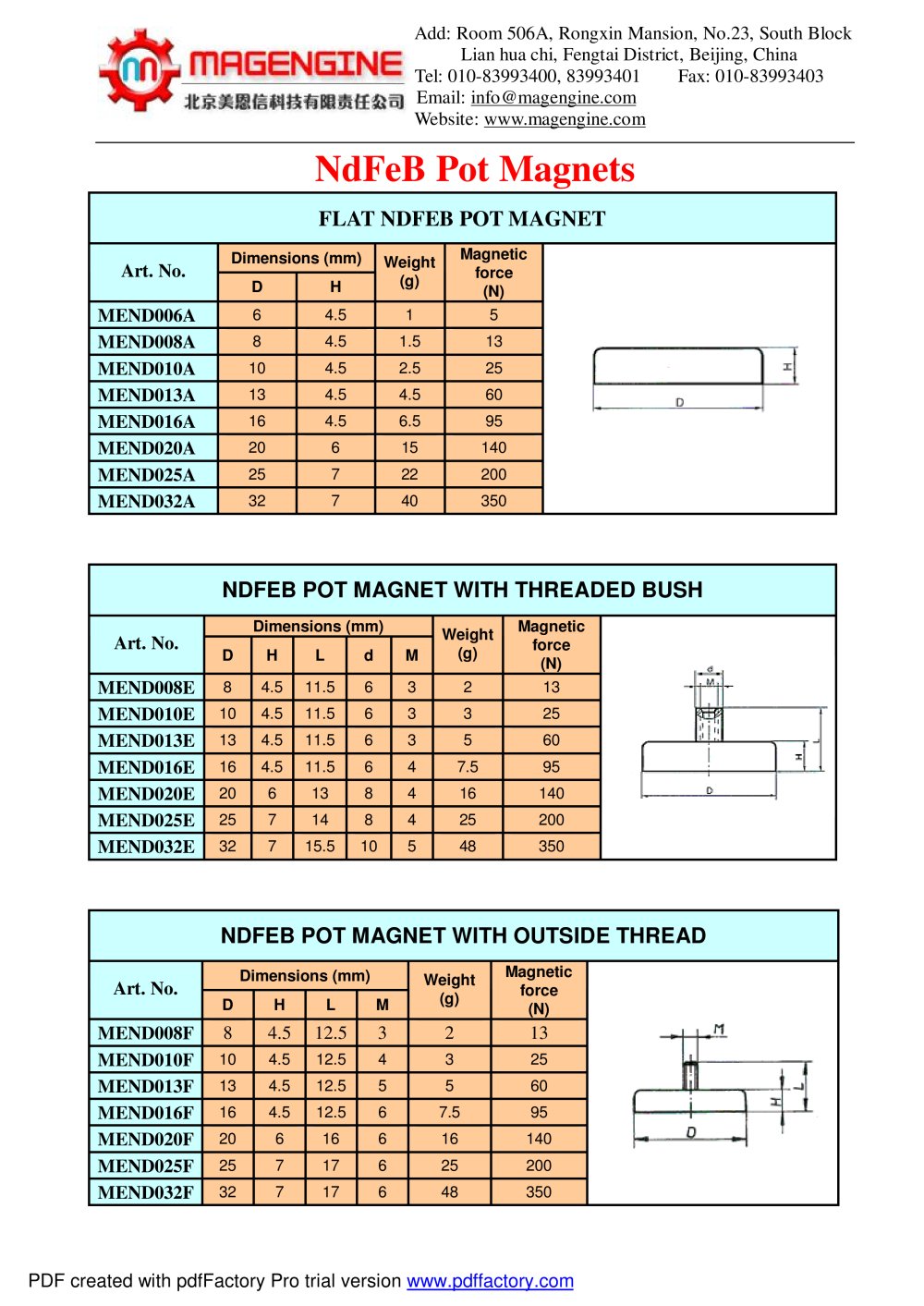

NdFeB Pot Magnets
FLAT NDFEB POT MAGNET
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
MEND006A
6
4.5
1
5
MEND008A
8
4.5
1.5
13
MEND010A
10
4.5
2.5
25
MEND013A
13
4.5
4.5
60
MEND016A
16
4.5
6.5
95
MEND020A
20
6
15
140
MEND025A
25
7
22
200
MEND032A
32
7
40
350
NDFEB POT MAGNET WITH THREADED BUSH
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
L
d
M
MEND008E
8
4.5
11.5
6
3
2
13
MEND010E
10
4.5
11.5
6
3
3
25
MEND013E
13
4.5
11.5
6
3
5
60
MEND016E
16
4.5
11.5
6
4
7.5
95
MEND020E
20
6
13
8
4
16
140
MEND025E
25
7
14
8
4
25
200
MEND032E
32
7
15.5
10
5
48
350
NDFEB POT MAGNET WITH OUTSIDE THREAD
Art. No.
Dimensions (mm)
Weight
Magnetic force (N)
D
H
L
M
(g)
MEND008F
8
4.5
12.5
3
2
13
MEND010F
10
4.5
12.5
4
3
25
MEND013F
13
4.5
12.5
5
5
60
MEND016F
16
4.5
12.5
6
7.5
95
MEND020F
20
6
16
6
16
140
MEND025F
25
7
17
6
25
200
MEND032F
32
7
17
6
48
350
