Add: Room 506A, Rongxin Mansion, No.23, South Block
Lian hua chi, Fengtai District, Beijing, China Tel: 010-83993400, 83993401 Fax: 010-83993403 Email: info(Sjmagengine.com Website: www.magengine.com
[hffc UIRGENGINE

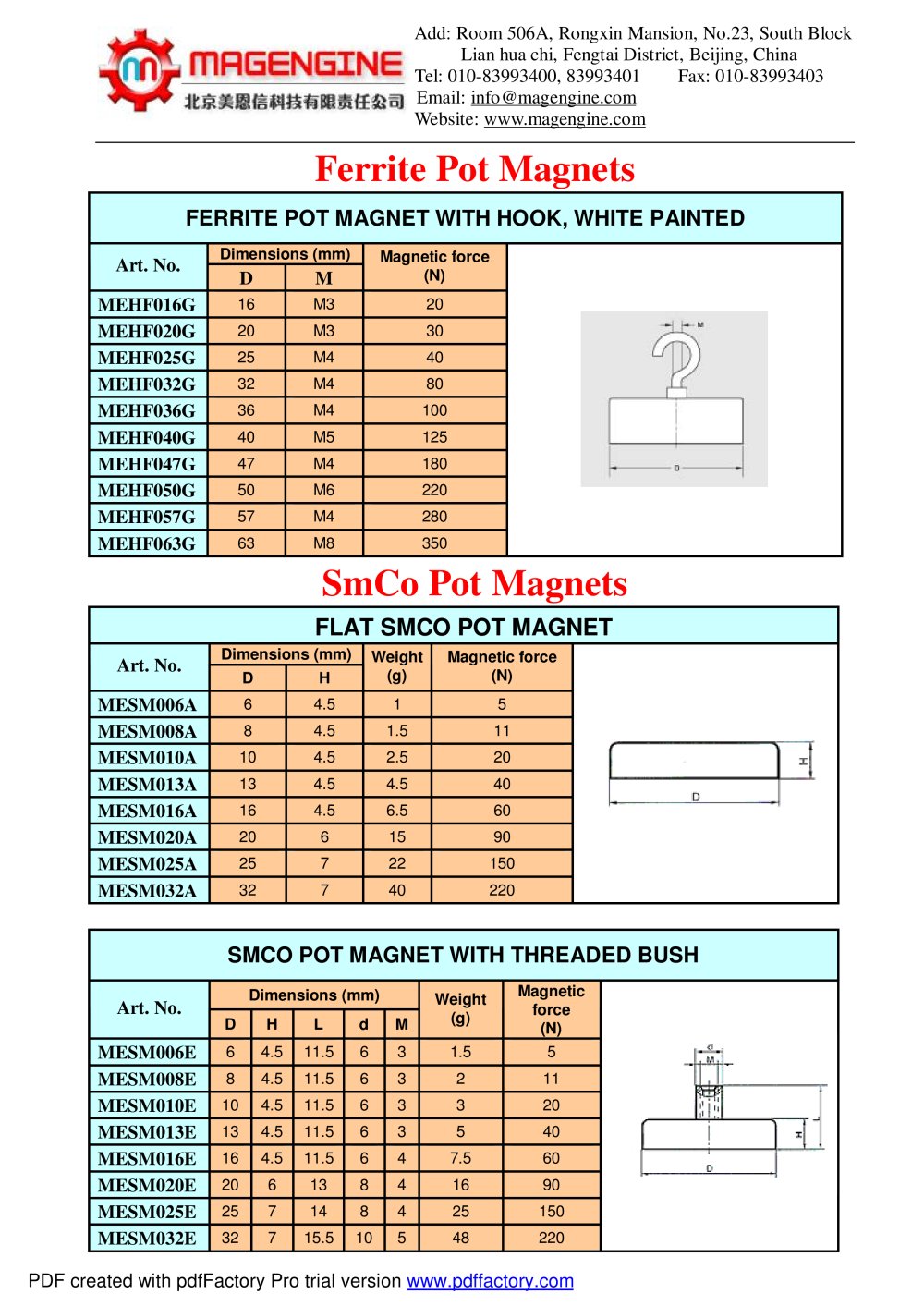

Ferrite Pot Magnets
FERRITE POT MAGNET WITH HOOK, WHITE PAINTED
Art. No.
Dimensions (mm)
Magnetic force (N)
D
M
MEHF016G
16
M3
20
MEHF020G
20
M3
30
MEHF025G
25
M4
40
MEHF032G
32
M4
80
MEHF036G
36
M4
100
MEHF040G
40
M5
125
MEHF047G
47
M4
180
MEHF050G
50
M6
220
MEHF057G
57
M4
280
MEHF063G
63
M8
350
SmCo Pot Magnets
FLAT SMCO POT MAGNET
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
MESM006A
6
4.5
1
5
MESM008A
8
4.5
1.5
11
MESM010A
10
4.5
2.5
20
MESM013A
13
4.5
4.5
40
MESM016A
16
4.5
6.5
60
MESM020A
20
6
15
90
MESM025A
25
7
22
150
MESM032A
32
7
40
220
SMCO POT MAGNET WITH THREADED BUSH
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
L
d
M
MESM006E
6
4.5
11.5
6
3
1.5
5
_a_
L 1
MESM008E
8
4.5
11.5
6
3
2
11
MESM010E
10
4.5
11.5
6
3
3
20
№
MESM013E
13
4.5
11.5
6
3
5
40
,-1—J-1
X
MESM016E
16
4.5
11.5
6
4
7.5
60
D
MESM020E
20
6
13
8
4
16
90
1
MESM025E
25
7
14
8
4
25
150
MESM032E
32
7
15.5
10
5
48
220
