Add: Room 506A, Rongxin Mansion, No.23, South Block
Lian hua chi, Fengtai District, Beijing, China Tel: 010-83993400, 83993401 Fax: 010-83993403 Email: info(Sjmagengine.com Website: www.magengine.com
[hffc mHGENGINE

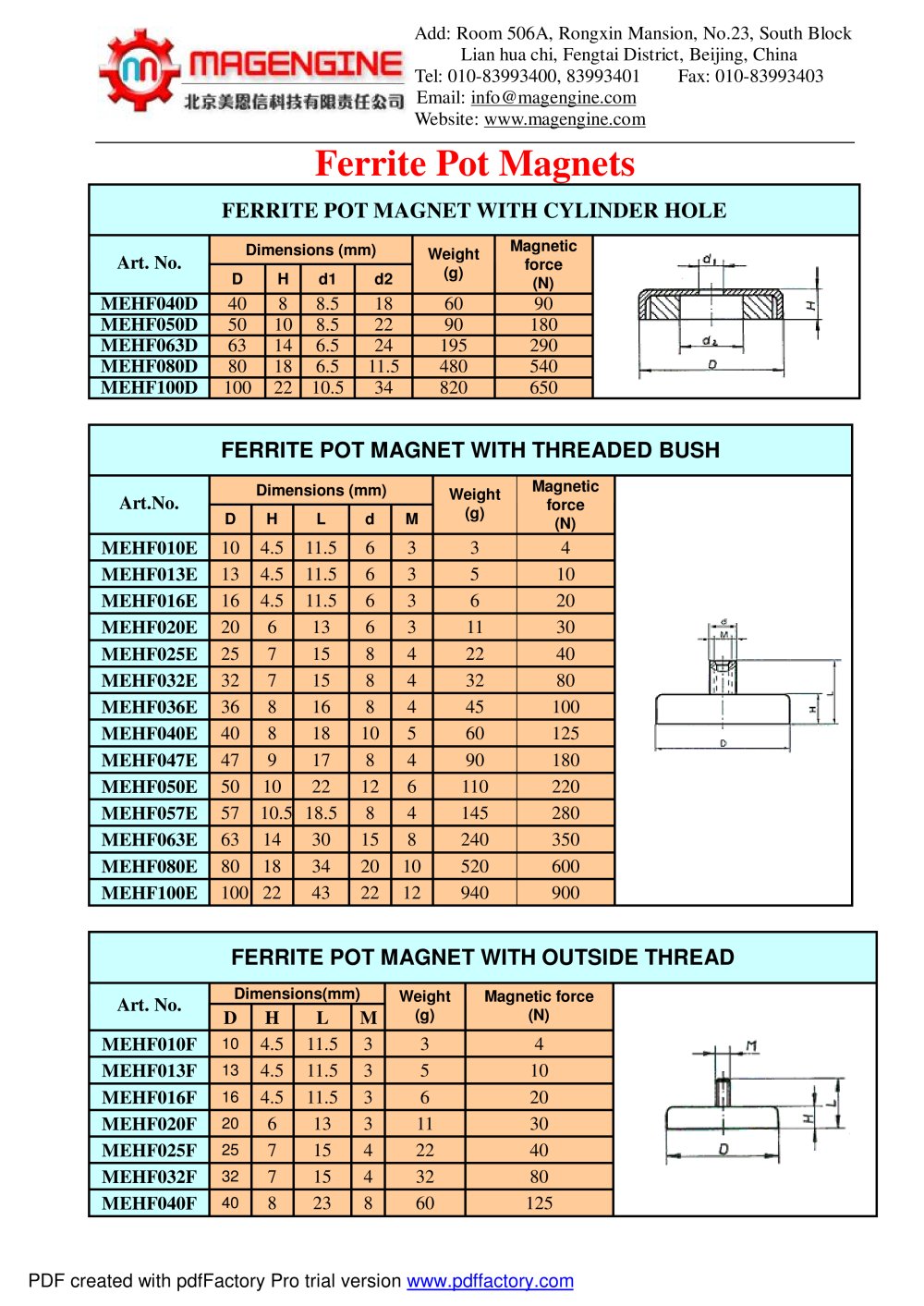

Ferrite Pot Magnets
FERRITE POT MAGNET WITH CYLINDER HOLE
Art. No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
d1
d2
MEHF040D
40
8
8.5
18
60
90
MEHF050D
50
10
8.5
22
90
180
MEHF063D
63
14
6.5
24
195
290
MEHF080D
80
18
6.5
11.5
480
540
MEHF100D
100
22
10.5
34
820
650
FERRITE POT MAGNET WITH THREADED BUSH
Art.No.
Dimensions (mm)
Weight
(g)
Magnetic force (N)
D
H
L
d
M
MEHF010E
10
4.5
11.5
6
3
3
4
MEHF013E
13
4.5
11.5
6
3
5
10
MEHF016E
16
4.5
11.5
6
3
6
20
MEHF020E
20
6
13
6
3
11
30
MEHF025E
25
7
15
8
4
22
40
r
MEHF032E
32
7
15
8
4
32
80
MEHF036E
36
8
16
8
4
45
100
1 i 1 -I 1 1
MEHF040E
40
8
18
10
5
60
125
—i--—
MEHF047E
47
9
17
8
4
90
180
MEHF050E
50
10
22
12
6
110
220
MEHF057E
57
10.5
18.5
8
4
145
280
MEHF063E
63
14
30
15
8
240
350
MEHF080E
80
18
34
20
10
520
600
MEHF100E
100
22
43
22
12
940
900
FERRITE POT MAGNET WITH OUTSIDE THREAD
Art. No.
Dimensions(mm)
Weight
Magnetic force
D
H
L
M
(g)
(N)
MEHF010F
10
4.5
11.5
3
3
4
MEHF013F
13
4.5
11.5
3
5
10
MEHF016F
16
4.5
11.5
3
6
20
,-
MEHF020F
20
6
13
3
11
30
-!
MEHF025F
25
7
15
4
22
40
MEHF032F
32
7
15
4
32
80
MEHF040F
40
8
23
8
60
125
