Certificate No:00107Q22774R0S/1100
Room No.906A, Rong Xin Mansion, Lian hua Chi South, Fengtai District, Beijing, P.R.C. Post Code: 100055
TEL:+86 10 83993401 or 83993400 FAX:+86 10 83993403 E-MAIL:info@magengine.com Web: www.magengine.com

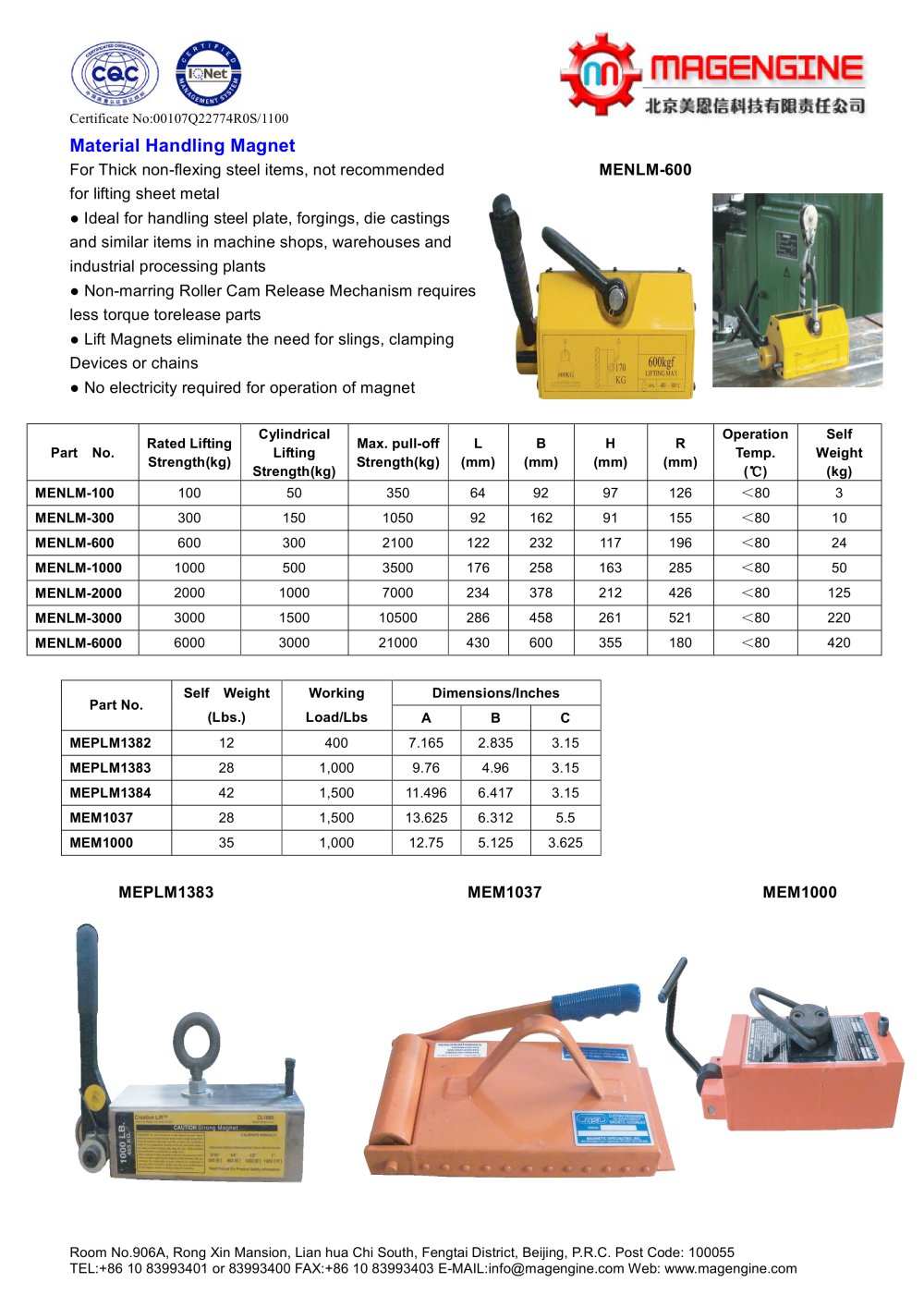

Material Handling Magnet
For Thick non-flexing steel items, not recommended MENLM-600
for lifting sheet metal
Ideal for handling steel plate, forgings, die castings
and similar items in machine shops, warehouses and
industrial processing plants
Non-marring Roller Cam Release Mechanism requires
less torque torelease parts
Lift Magnets eliminate the need for slings, clamping
Devices or chains
No electricity required for operation of magnet
Part No.
Rated Lifting
Strength(kg)
Cylindrical
Lifting
Strength(kg)
Max. pull-off
Strength(kg)
L
(mm)
B
(mm)
H
(mm)
R
(mm)
Operation
Temp.
(
)
Self
Weight
(kg)
MENLM-100 100 50 350 64 92 97 126
80 3
MENLM-300 300 150 1050 92 162 91 155
80 10
MENLM-600 600 300 2100 122 232 117 196
80 24
MENLM-1000 1000 500 3500 176 258 163 285
80 50
MENLM-2000 2000 1000 7000 234 378 212 426
80 125
MENLM-3000 3000 1500 10500 286 458 261 521
80 220
MENLM-6000 6000 3000 21000 430 600 355 180
80 420
Dimensions/Inches
Part No.
Self Weight
(Lbs.)
Working
Load/Lbs A B C
MEPLM1382 12 400 7.165 2.835 3.15
MEPLM1383 28 1,000 9.76 4.96 3.15
MEPLM1384 42 1,500 11.496 6.417 3.15
MEM1037 28 1,500 13.625 6.312 5.5
MEM1000 35 1,000 12.75 5.125 3.625
MEPLM1383 MEM1037 MEM1000
|
|
