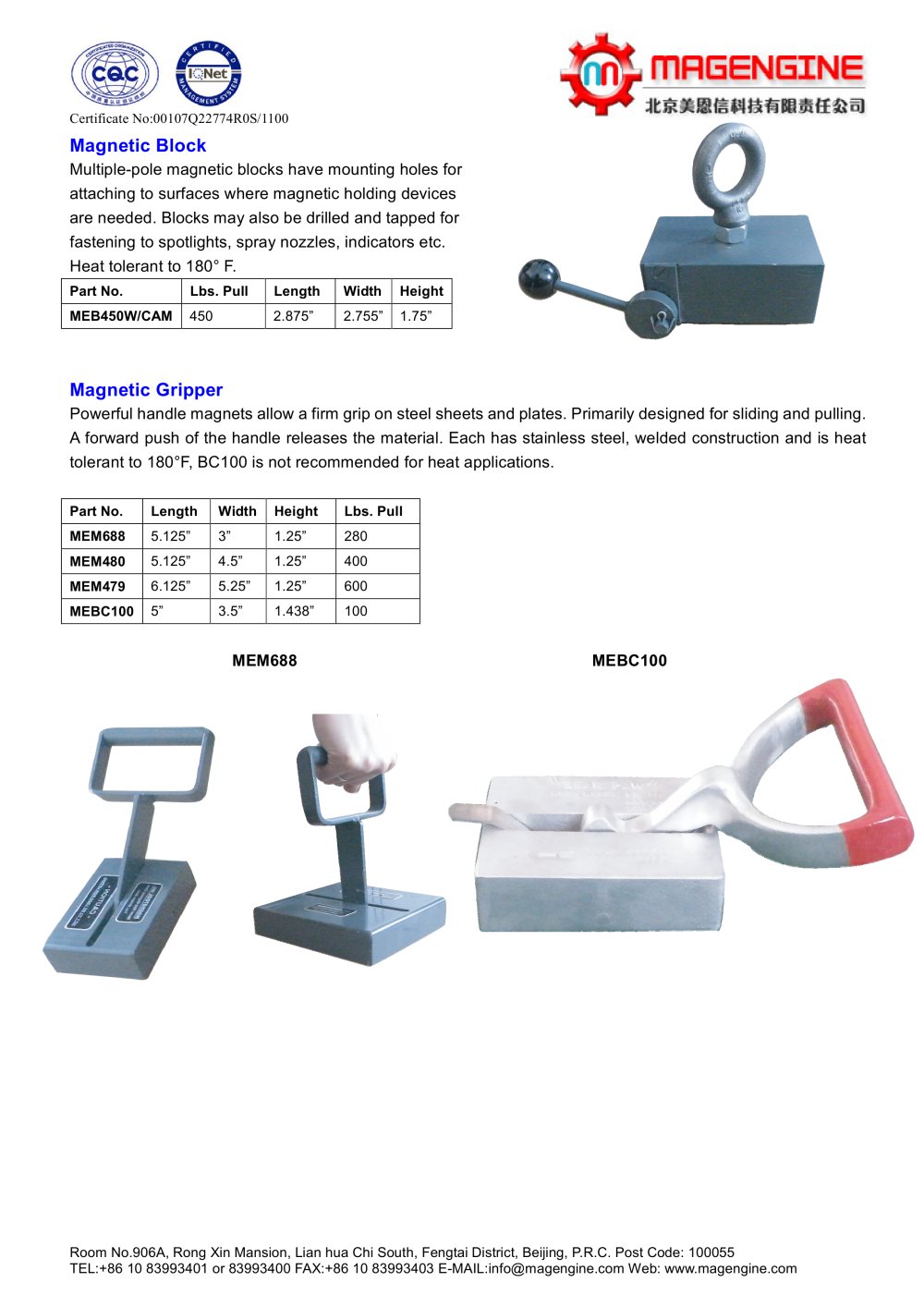

Certificate No:00107Q22774R0S/1100 Room No.906A, Rong Xin Mansion, Lian hua Chi South, Fengtai District, Beijing, P.R.C. Post Code: 100055 TEL:+86 10 83993401 or 83993400 FAX:+86 10 83993403 E-MAIL:info@magengine.com Web: www.magengine.com Magnetic Block Multiple-pole magnetic blocks have mounting holes for attaching to surfaces where magnetic holding devices are needed. Blocks may also be drilled and tapped for fastening to spotlights, spray nozzles, indicators etc. Heat tolerant to 180° F. Part No. Lbs. Pull Length Width Height MEB450W/CAM 450 2.875” 2.755” 1.75” Magnetic Gripper Powerful handle magnets allow a firm grip on steel sheets and plates. Primarily designed for sliding and pulling. A forward push of the handle releases the material. Each has stainless steel, welded construction and is heat tolerant to 180°F, BC100 is not recommended for heat applications. Part No. Length Width Height Lbs. Pull MEM688 5.125” 3” 1.25” 280 MEM480 5.125” 4.5” 1.25” 400 MEM479 6.125” 5.25” 1.25” 600 MEBC100 5” 3.5” 1.438” 100 MEM688 MEBC100
