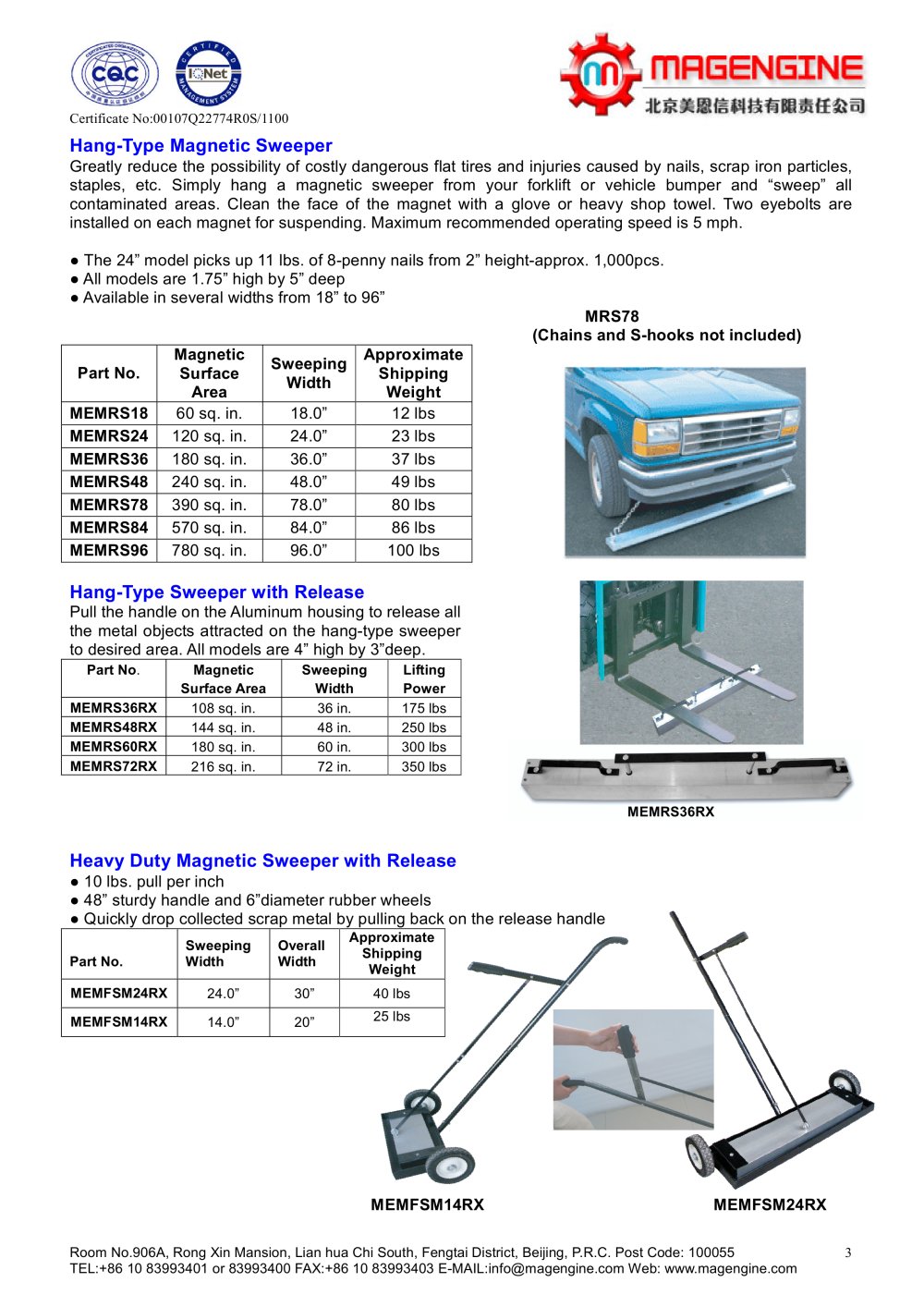

Certificate No:00107Q22774R0S/1100 Room No.906A, Rong Xin Mansion, Lian hua Chi South, Fengtai District, Beijing, P.R.C. Post Code: 100055 TEL:+86 10 83993401 or 83993400 FAX:+86 10 83993403 E-MAIL:info@magengine.com Web: www.magengine.com 3 Hang-Type Magnetic Sweeper Greatly reduce the possibility of costly dangerous flat tires and injuries caused by nails, scrap iron particles, staples, etc. Simply hang a magnetic sweeper from your forklift or vehicle bumper and “sweep” all contaminated areas. Clean the face of the magnet with a glove or heavy shop towel. Two eyebolts are installed on each magnet for suspending. Maximum recommended operating speed is 5 mph. ; The 24” model picks up 11 lbs. of 8-penny nails from 2” height-approx. 1,000pcs. ; All models are 1.75” high by 5” deep ; Available in several widths from 18” to 96” MRS78 (Chains and S-hooks not included) Part No. Magnetic Surface Area Sweeping Width Approximate Shipping Weight MEMRS18 60 sq. in. 18.0” 12 lbs MEMRS24 120 sq. in. 24.0” 23 lbs MEMRS36 180 sq. in. 36.0” 37 lbs MEMRS48 240 sq. in. 48.0” 49 lbs MEMRS78 390 sq. in. 78.0” 80 lbs MEMRS84 570 sq. in. 84.0” 86 lbs MEMRS96 780 sq. in. 96.0” 100 lbs Hang-Type Sweeper with Release Pull the handle on the Aluminum housing to release all the metal objects attracted on the hang-type sweeper to desired area. All models are 4” high by 3”deep. Part No. Magnetic Surface Area Sweeping Width Lifting Power MEMRS36RX 108 sq. in. 36 in. 175 lbs MEMRS48RX 144 sq. in. 48 in. 250 lbs MEMRS60RX 180 sq. in. 60 in. 300 lbs MEMRS72RX 216 sq. in. 72 in. 350 lbs MEMRS36RX Heavy Duty Magnetic Sweeper with Release 3 10 lbs. pull per inch 3 48” sturdy handle and 6”diameter rubber wheels 3 Quickly drop collected scrap metal by pulling back on the release handle Part No. Sweeping Width Overall Width Approximate Shipping Weight MEMFSM24RX 24.0” 30” 40 lbs MEMFSM14RX 14.0” 20” 25 lbs MEMFSM14RX MEMFSM24RX
